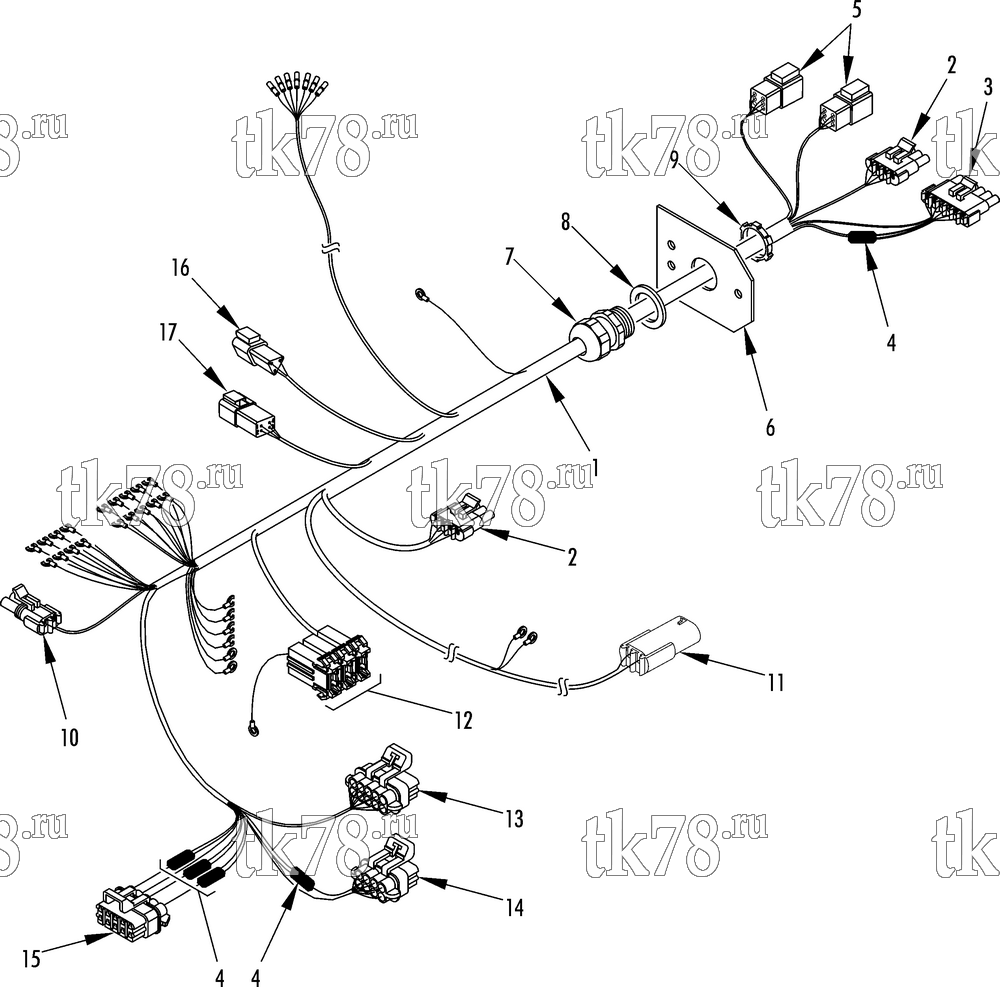

Установкa Thermo King AT13-M8 схема SLAVE CONTROL HARNESS (007145 & 007339) – 233F8
Обновление от: 3/26/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-8569 | HARNESS - slave control | 1 | |
| 2 | 44-7881 | CONNECTOR - tower (4-pin) | 2 | |
| 3 | 44-7872 | CONNECTOR - tower (6-pin) | 1 | |
| 4 | 41-7681 | TUBING - heat shrink (1-1/2 in lg) | 5 | |
| 5 | 41-4281 | CONNECTOR (6-pin) | 1 | |
| 6 | 92-6109 | PLATE - harness | 1 | |
| 7 | 41-4817 | CONNECTOR - liquid tite | 1 | |
| 8 | 41-5359 | WASHER - sealing | 1 | |
| 9 | 55-2635 | NUT - lock | 1 | |
| 10 | 44-5838 | CONNECTOR - tower (2-pin) | 1 | |
| 11 | 44-5835 | CONNECTOR - 2 way (see 115D14) | 1 | |
| 12 | 41-2973 | FUSEHOLDER | 3 | |
| 13 | 41-4198 | CONNECTOR (10-pin, gray) | 1 | |
| 41-5054 | LOCK - secondary | 1 | ||
| 14 | 41-4199 | CONNECTOR (8-pin) | 1 | |
| 41-5055 | LOCK - secondary | 1 | ||
| 15 | 41-4197 | CONNECTOR (10-pin, black) | 1 | |
| 41-5054 | LOCK - secondary | 1 | ||
| 16 | 44-9544 | CONNECTOR - deutsch (3-pin) | 1 | |
| 17 | 44-8915 | CONNECTOR - deutsch (4-pin) | 1 |
