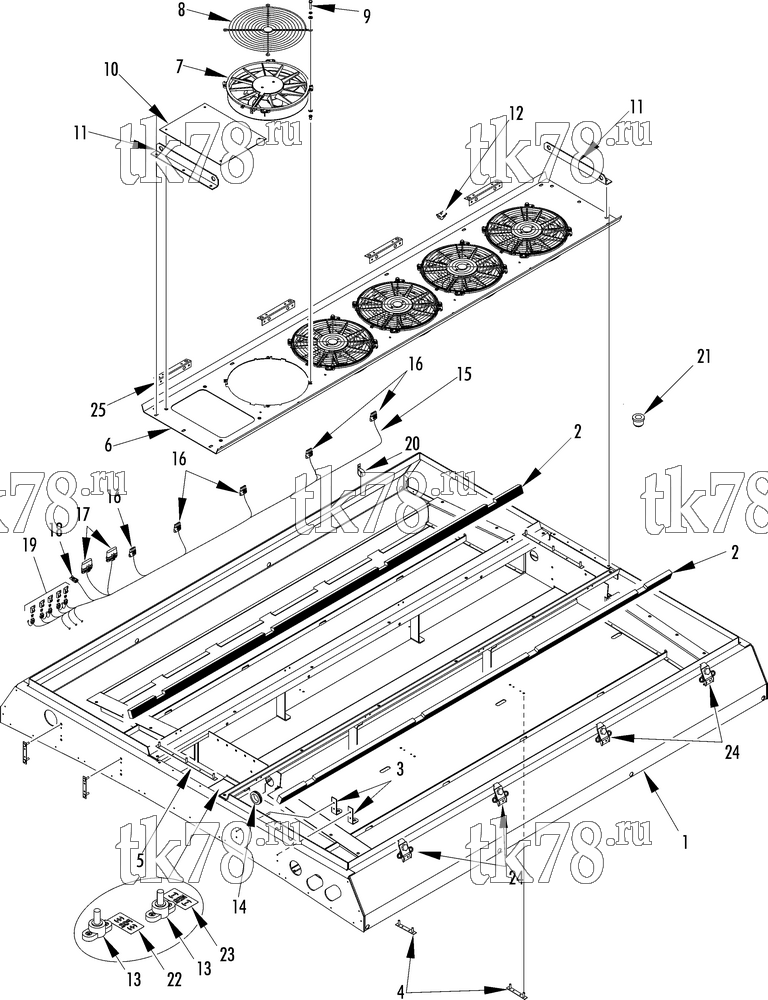

Установкa Thermo King AT13-M8 схема CONDENSER STRUCTURAL & ELECTRICAL – 233F3
Обновление от: 1/15/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7707 | FRAME - condenser | 1 | |
| 55-8979 | INSERT (1/4-20) | 16 | ||
| 55-8711 | INSERT (1/4-20 brs) | 21 | ||
| 55-8752 | INSERT (10-32 brs) | 7 | ||
| 2 | 33-4352 | GASKET - coil seal | 2 | |
| 3 | 92-6098 | BRACKET - harness | 2 | |
| 55-3101 | RIVET - bracket | 4 | ||
| 4 | 92-6099 | BOLTSTRIP | 6 | |
| 5 | 92-6100 | PLATE - stud | 2 | |
| 55-3101 | RIVET - boltstrip & plate | 16 | ||
| 6 | 98-7708 | PANEL - orifice, condenser fans | 1 | |
| 55-2977 | SCREW - panel | 12 | ||
| 55-1800 | LOCKWASHER | 12 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 7 | 78-1460 | FAN - condenser (24V) | 5 | |
| 8 | 98-5425 | GUARD - fan | 5 | |
| 9 | 55-2979 | SCREW - guard & fan | 20 | |
| 55-1800 | LOCKWASHER | 20 | ||
| 55-2086 | FLATWASHER | 40 | ||
| 55-8711 | INSERT | 20 | ||
| 10 | 92-6101 | PLATE - cover | 1 | |
| 55-2977 | SCREW - plate | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-8711 | INSERT | 4 | ||
| 11 | 92-6102 | BRACKET - lifting | 2 | |
| 55-4953 | NUT - bracket | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 12 | 99-9646 | CLIP - wire | 5 | |
| 13 | 51-1172 | STUD - junction block | 2 | |
| 51-749 | SCREW - block | 4 | ||
| 55-3066 | LOCKWASHER - int th (3/8) | 2 | ||
| 55-448 | FLATWASHER (3/8) | 4 | ||
| 55-671 | NUT - hex jam (3/8) | 2 | ||
| 14 | 33-1770 | GROMMET (1.50 id) | 1 | |
| 15 | 45-2195 | HARNESSS - condenser (for connectors, see 115D14) | 1 | |
| 16 | 44-7881 | CONNECTOR - tower (4-pin) | 5 | |
| 17 | 41-1789 | CONNECTOR - tower (6-pin) | 2 | |
| 41-1790 | LOCK - secondary (6-pin connector) | 2 | ||
| 41-1788 | BUSBAR | 2 | ||
| 18 | 44-5838 | CONNECTOR - tower (2-pin) | 1 | |
| 19 | 41-1770 | HOLDER - fuse | 5 | |
| 30-41-1770 | Гнездо предохранителя 32V 30А | 760 ₽ |
|
|
| 41-1769 | COVER - fuseholder | 5 | ||
| 30-41-1769 | Крышка предохранителя | 510 ₽ |
|
|
| 41-9344 | FUSE - 15 amp, 32V dc) | 5 | ||
| 20 | 55-9311 | CLAMP (1.000 dia) | 2 | |
| 21 | 51-833 | STOPPER (.875 od) | 1 | |
| 51-834 | STOPPER (.830 od) | 1 | ||
| 22 | 99-4660 | NAMEPLATE - Positive | 1 | |
| 23 | 99-4661 | NAMEPLATE - Negative | 1 | |
| 24 | 91-6774 | LATCH - cover | 8 | |
| 55-2991 | SCREW | 32 | ||
| 55-2001 | FLATWASHER | 64 | ||
| 55-4560 | NUT | 32 | ||
| 25 | 91-6039 | HINGE - cover | 8 | |
| 55-2991 | SCREW - hinge | 32 | ||
| 55-2001 | FLATWASHER | 64 | ||
| 55-4560 | NUT | 32 |
