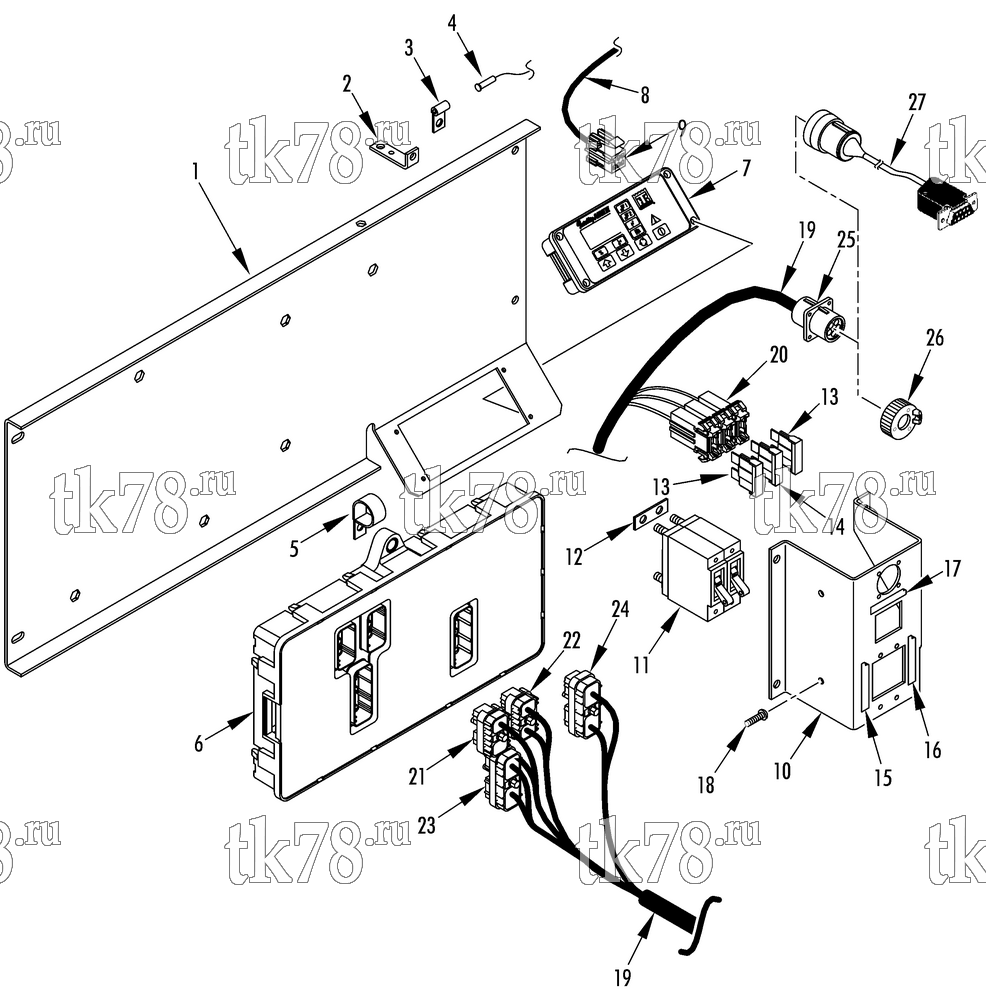

Установкa Thermo King AT13-M23 схема CONTROL PANEL ASSEMBLY – 170G5
Обновление от: 9/7/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-6244 | PLATE - IntelligAIRE | 1 | |
| 55-2957 | SCREW - plate | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-3059 | NUT - captive | 4 | ||
| 2 | 91-6752 | BRACKET - sensor | 1 | |
| 55-3027 | SCREW - bracket | 1 | ||
| 55-2996 | LOCKWASHER | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-8752 | INSERT | 1 | ||
| 3 | 55-9720 | CLAMP - sensor | 1 | |
| 55-3027 | SCREW - clamp | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-4560 | NUT | 1 | ||
| 4 | 41-7706 | SENSOR - temperature | 1 | |
| 5 | 55-9721 | CLAMP (0.875 dia) | 1 | |
| 51-179 | CLAMP (1.437 dia) | 1 | ||
| 6 | 41-3616 | MODULE - base (deluxe) | 1 | |
| 55-2979 | SCREW - module | 3 | ||
| 55-1800 | LOCKWASHER | 3 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 55-8711 | INSERT | 3 | ||
| 7 | 41-7199 | MODULE - display | 1 | |
| 55-3256 | SCREW - module | 4 | ||
| 55-5754 | NUT | 4 | ||
| 8 | 41-4536 | HARNESS - unit display | 1 | |
| 9 | 41-4284 | CONNECTOR (6F) | 1 | |
| 41-4285 | LOCK - terminal | 2 | ||
| 44-8197 | JUMPER - switch | 1 | ||
| 10 | 92-1763 | PLATE - circuit breaker | 1 | |
| 55-1587 | SCREW - plate | 3 | ||
| 55-1800 | LOCKWASHER | 3 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 55-8711 | INSERT | 3 | ||
| 11 | 41-2455 | BREAKER - circuit (85 amp, manual reset) | 2 | |
| 55-3513 | SCREW - circuit breaker | 4 | ||
| 55-3013 | FLATWASHER | 8 | ||
| 55-3014 | LOCKWASHER | 4 | ||
| 12 | 44-8094 | JUMPER | 1 | |
| 13 | 44-9758 | FUSE (10 amp) | 2 | |
|
10-44-9758 | Предохранитель 10 ампер 10 шт | 1 860 ₽ |
|
| 14 | 44-9344 | FUSE (15 amp) | 1 | |
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 15 | 92-1764 | MARKSTRIP (10A/15A/10A) | 1 | |
| 16 | 92-1294 | MARKSTRIP (condenser fan) | 1 | |
| 17 | 92-1293 | MARKSTRIP (evaporator fan) | 1 | |
| 18 | 55-3000 | SCREW - ground | 1 | |
| 55-2001 | FLATWASHER | 4 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-3496 | LOCKWASHER (internal/external tooth) | 1 | ||
| 55-2965 | NUT | 2 | ||
| 19 | NSS | HARNESS - unit (see Electrical Components) | 1 | |
| 20 | 41-2973 | HOLDER - fuse | 3 | |
| 21 | 44-8858 | CONNECTOR (J1, 18-pin) | 1 | |
| 22 | 41-4135 | CONNECTOR (J2, 18-pin) | 1 | |
| 23 | 44-8857 | CONNECTOR (J3, 30-pin) | 1 | |
| 24 | 41-4136 | CONNECTOR (J4, 30-pin) | 1 | |
| 44-9240 | TERMINAL - female (16-20 ga) | A/R | ||
| 25 | 41-2405 | RECEPTACLE (5-pin) | 1 | |
| 44-9591 | TERMINAL - pin (16-18 ga) | 3 | ||
| 26 | 41-2406 | CAP - dust (receptacle) | 1 | |
| 33-928 | GASKET - cap | 1 | ||
| 55-3427 | SCREW - receptacle | 4 | ||
| 55-2359 | FLATWASHER | 8 | ||
| 55-2360 | LOCKWASHER | 4 | ||
| 55-2361 | NUT | 4 |
