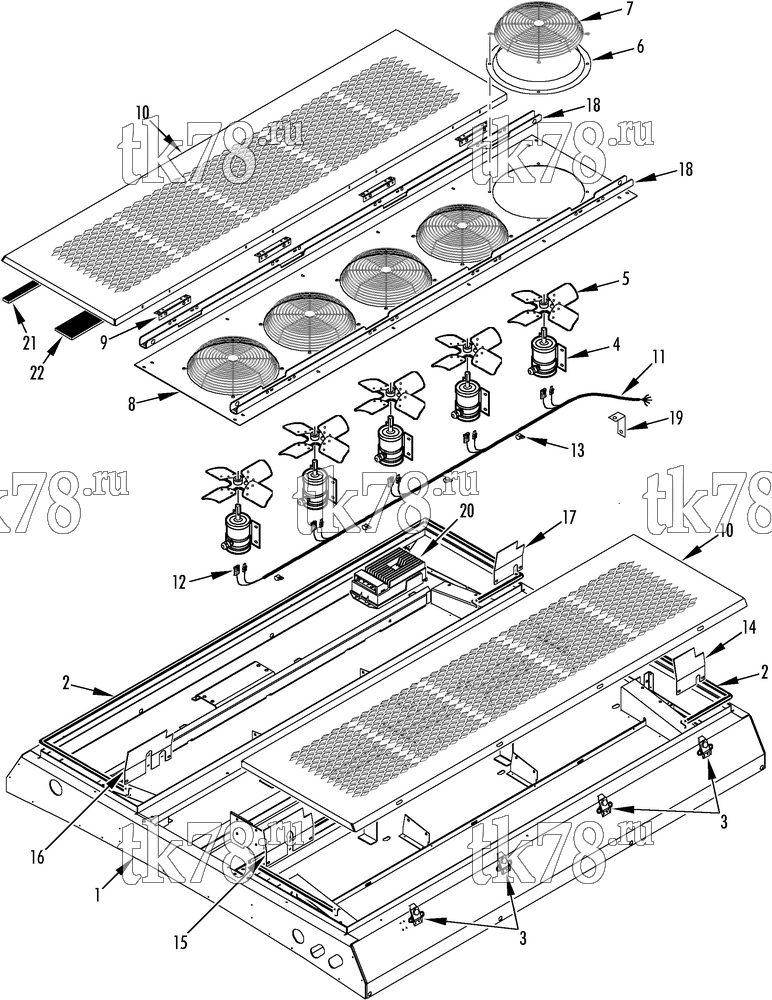

Установкa Thermo King AT13-M2 схема CONDENSER STRUCTURAL - MOTORS & FANS – 177C8
Обновление от: 11/4/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-6509 | FRAME - condenser | 1 | |
| 2 | 33-4082 | EXTRUSION - rubber | A/R | |
| 3 | 91-6774 | LATCH - cover | 8 | |
| 55-2991 | SCREW | 32 | ||
| 55-2001 | FLATWASHER | 64 | ||
| 55-4560 | NUT | 32 | ||
| 4 | 104-647 | MOTOR - condenser fan (see 166H7, for connectors see 115D14) | 5 | |
| 55-2969 | SCREW - motor | 20 | ||
| 55-2958 | FLATWASHER | 20 | ||
| 55-4727 | WASHER | 20 | ||
| 55-2959 | LOCKWASHER | 20 | ||
| 55-4954 | NUT | 20 | ||
| 5 | 78-859 | FAN - condenser | 5 | |
| 6 | 98-4334 | RING - inlet | 5 | |
| 7 | 91-5917 | GUARD - fan | 5 | |
| 55-2977 | SCREW - guard | 20 | ||
| 55-2086 | FLATWASHER | 20 | ||
| 55-1800 | LOCKWASHER | 20 | ||
| 55-3045 | WASHER - dome | 20 | ||
| 55-6526 | INSERT - threaded | 20 | ||
| 8 | 98-5307 | ORIFICE - fan | 1 | |
| 55-2957 | SCREW - orifice | 16 | ||
| 55-2086 | FLATWASHER | 16 | ||
| 55-1800 | LOCKWASHER | 16 | ||
| 55-6526 | INSERT - threaded | 16 | ||
| 9 | 91-6039 | HINGE - cover | 8 | |
| 55-2991 | SCREW - hinge | 32 | ||
| 55-2001 | FLATWASHER | 64 | ||
| 55-4560 | NUT | 32 | ||
| 10 | 98-6510 | COVER - condenser | 2 | |
| 11 | 41-2502 | HARNESS - condenser | 1 | |
| 12 | 41-1915 | CONNECTOR (3-pin) | 5 | |
| 41-1912 | LOCK - secondary (3-pin connector) | 5 | ||
| 41-5240 | HARNESS - interface (for connectors see 115D14) | 1 | ||
| 13 | 55-3026 | CLAMP | 4 | |
| 55-2991 | SCREW | 4 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-4560 | NUT | 4 | ||
| 55-2330 | BANDWRAP | 4 | ||
| 14 | 92-2770 | PLATE - blockoff (rear, curbside) | 1 | |
| 15 | 92-2771 | PLATE - blockoff (front, curbside) | 1 | |
| 16 | 91-8656 | PLATE - blockoff (front, roadside) | 1 | |
| 17 | 92-2772 | PLATE - blockoff (rear, roadside) | 1 | |
| 55-2977 | SCREW - plate | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-6526 | INSERT | 8 | ||
| 18 | 98-6619 | CHANNEL - cover | 2 | |
| 19 | 91-6732 | BRACKET - harness clamp | 1 | |
| 55-9702 | CLAMP - harness (0.625 dia) | 2 | ||
| 55-2991 | SCREW - bracket/clamp | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 2 | ||
| 55-8372 | CLAMP (0.312 dia) | 1 | ||
| 41-3590 | DRIVE - motor | 1 | ||
| 21 | 99-6968 | STRIP - sealing (0.12 x 1 x 50 ft) | A/R | |
| 22 | 92-2620 | INSULATION - cover | 1 | |
| 41-1911 | CONNECTOR - drive | 2 | ||
| 41-1912 | LOCK - secondary (3-pin connector) | 5 | ||
| 41-1913 | SEAL - cable | 15 |
