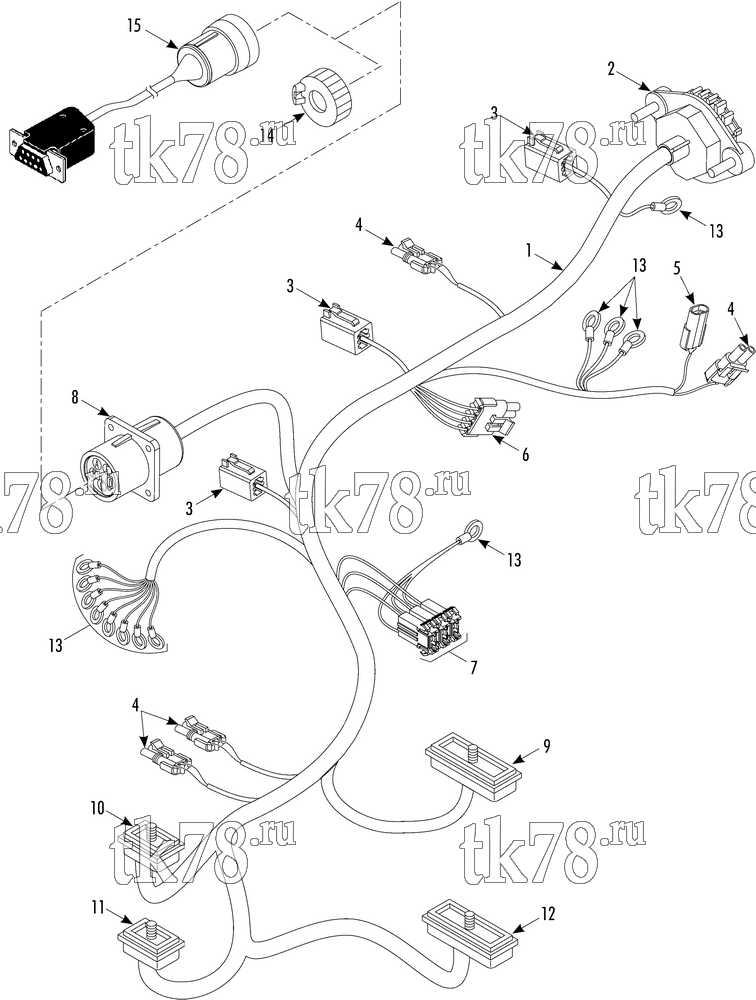

Установкa Thermo King AT13-M19 схема HARNESS MASTER CONTROL – 244D4
Обновление от: 4/22/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-9452 | HARNESS - control master | 1 | |
| 2 | 44-7829 | CONNECTOR - tower (22-pin) | 1 | |
| 44-7811 | LOCK - secondary | 2 | ||
| 44-5884 | TERMINAL - female (20-18 ga) | 22 | ||
| 44-8681 | SEAL - cable (red) | 22 | ||
| 3 | 41-4281 | CONNECTOR (6-pin) | 3 | |
| 41-4282 | CONNECTOR - wedge | 3 | ||
| 41-8978 | PIN 16-20GA | 8 | ||
| 41-8979 | PIN - sealing | 3 | ||
| 4 | 44-5838 | CONNECTOR - tower (2-pin) | 4 | |
| 44-5884 | TERMINAL - female (20-18 ga) | 1 | ||
| 44-8681 | SEAL - cable (red) | 8 | ||
| 5 | 44-5835 | CONNECTOR - shroud (2-pin) | 1 | |
| 44-5883 | TERMINAL-MALE 20-18GA BRS | 2 | ||
| 44-8681 | SEAL - cable (red) | 2 | ||
| 6 | 44-7881 | CONNECTOR - tower (4-pin) | 1 | |
| 44-7812 | PLUG - cavity (green) | 1 | ||
| 44-5884 | TERMINAL - female (20-18 ga) | 3 | ||
| 44-8681 | SEAL - cable (red) | 3 | ||
| 7 | 41-2973 | HOLDER - fuse | 3 | |
| 41-3327 | TERMINAL (14 awg) | 6 | ||
| 8 | 41-2405 | CONNECTOR - receptacle (5-pin) | 1 | |
| 44-9591 | TERMINAL - pin (18 ga) | 3 | ||
| 44-9602 | PIN - sealing | 2 | ||
| 9 | 41-4136 | CONNECTOR (30-pin, white) | 1 | |
| 44-9240 | TERMINAL - female (20-16 ga) | 18 | ||
| 41-8963 | PLUG - seal | 11 | ||
| 10 | 41-4135 | CONNECTOR (18-pin, white) | 4 | |
| 41-8963 | PLUG - seal | 14 | ||
| 44-9240 | TERMINAL - female (20-16 ga) | 52 | ||
| 11 | 44-8858 | CONNECTOR (18-pin, black) | 1 | |
| 44-9240 | TERMINAL - female (20-16 ga) | 11 | ||
| 41-8963 | PLUG - seal | 9 | ||
| 12 | 44-8857 | CONNECTOR (30-pin, black) | 1 | |
| 44-9240 | TERMINAL - female (20-16 ga) | 18 | ||
| 41-8963 | PLUG - seal | 12 | ||
| 41-4537 | RESISTOR (120 ohm) | 1 | ||
| 13 | 41-281 | TERMINAL - ring (red #6, 22-16 ga) | 3 | |
| 44-7245 | TERMINAL - ring (red #10, 22-16 ga) | 6 | ||
| 41-8964 | TERMINAL - ring (red 1/4, 8 ga) | 1 | ||
| 44-2791 | TERMINAL - ring (blue #10, 16-14 ga) | 2 | ||
| 44-2786 | TERMINAL - ring (blue 3/8, 16-14 ga) | 1 | ||
| 14 | 41-2406 | CAP - dust | 1 | |
| 41-7774 | LANYARD - nylon | 1 | ||
| 15 | 204-1040 | CABLE - download | 1 | |
| 55-3427 | SCREW - connector | 4 | ||
| 55-2359 | FLATWASHER | 6 | ||
| 55-2360 | LOCKWASHER | 4 | ||
| 55-2361 | NUT | 4 |
