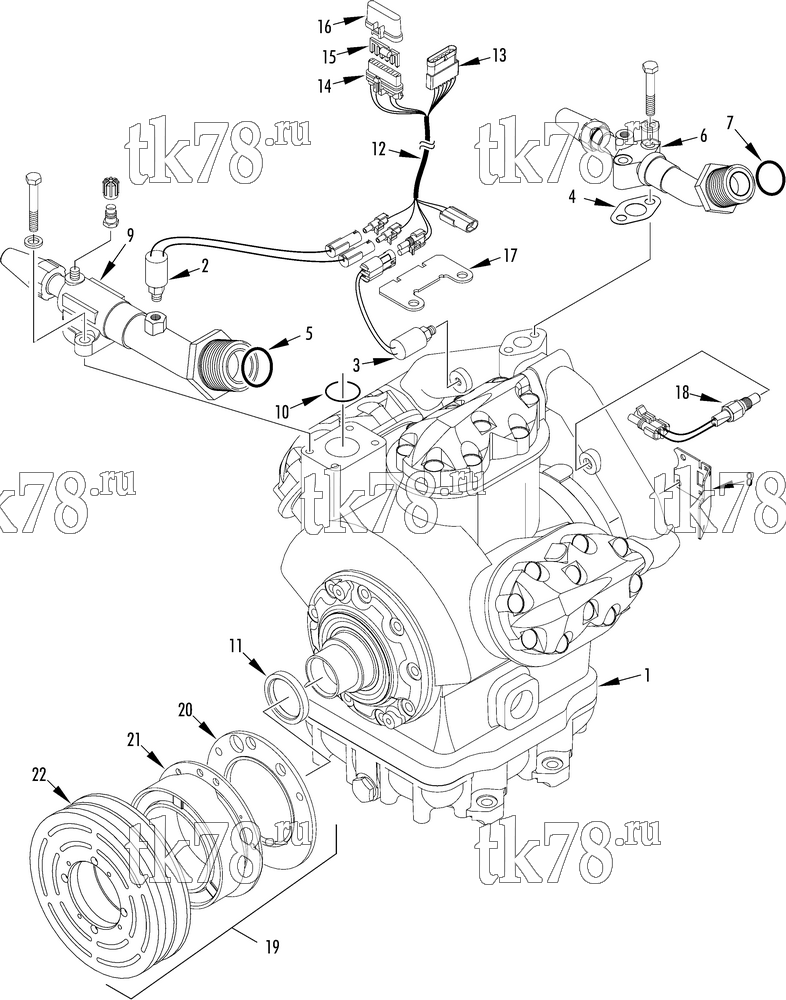

Установкa Thermo King AT13-M13 схема COMPRESSOR GROUP (2C45049G16, KIT 700907) – 232A4
Обновление от: 1/21/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-657 | COMPRESSOR - X640 (R134a, see 177H6) | 1 | |
| 2 | 41-4558 | SWITCH - lpco (for connectors see 115D14) | 1 | |
| 41-4559 | SWITCH - only | 1 | ||
| 33-768 | GASKET - switch | 1 | ||
| 3 | 41-4146 | SWITCH - hpco (for connectors see 115D14) | 1 | |
| 41-4531 | SWITCH - only | 1 | ||
| 4 | 33-2805 | GASKET - valve | 1 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 5 | 33-920 | O-RING - suction valve | 1 | |
| 6 | 61-4349 | VALVE - discharge (see 230E4) | 1 | |
| 55-3674 | SCREW - discharge valve | 2 | ||
| 55-6804 | WASHER - sealing | 2 | ||
| 7 | 33-1785 | O-RING - discharge | 1 | |
| 8 | 92-2700 | BRACKET - harness | 1 | |
| 9 | 61-4554 | VALVE - suction (see 232A5) | 1 | |
| 55-129 | SCREW - valve | 2 | ||
| 55-896 | FLATWASHER | 2 | ||
| 10 | 33-230 | O-RING - valve (1.875 id) | 2 | |
|
10-33-230 | О-ринг сервисного клапана, X418/426/430/640 | 380 ₽ |
|
| PP-33-230 | О-ринг сервисного клапана, X418/426/430/640 | 220 ₽ |
|
|
| 11 | 33-2120 | SEAL - oil | 1 | |
|
10-33-2120 | Сальник крышки компрессора X426/430/640 | 1 690 ₽ |
|
| PP-33-2120 | Сальник крышки компрессора X426/430/640 | 480 ₽ |
|
|
| 12 | 41-4810 | HARNESS - compressor (for connectors see 115D14) | 1 | |
| 13 | 44-8294 | CONNECTOR - shroud (6-pin) | 1 | |
| 14 | 41-1789 | CONNECTOR - tower (6-pin) | 1 | |
| 41-1790 | LOCK - secondary (6-pin connector) | 1 | ||
| 15 | 41-4280 | BUSBAR (w/diode) | 1 | |
| 16 | 41-1787 | COVER - connector | 1 | |
| 17 | 92-3253 | BRACKET - wire support | 1 | |
| 18 | 41-3345 | SENSOR - high temperature (for connectors see 115D14) | 1 | |
| 19 | NSS | CLUTCH - assembly | 1 | |
| 107-192 | KIT - clutch drive repair (see 153E8) | 1 | ||
| 20 | 77-1083 | PLATE | 1 | |
| 21 | 45-1965 | FIELD - clutch (24VDC) | 1 | |
| 22 | 77-1672 | PULLEY (2-5V grooves, 7.75 in od) | 1 |
