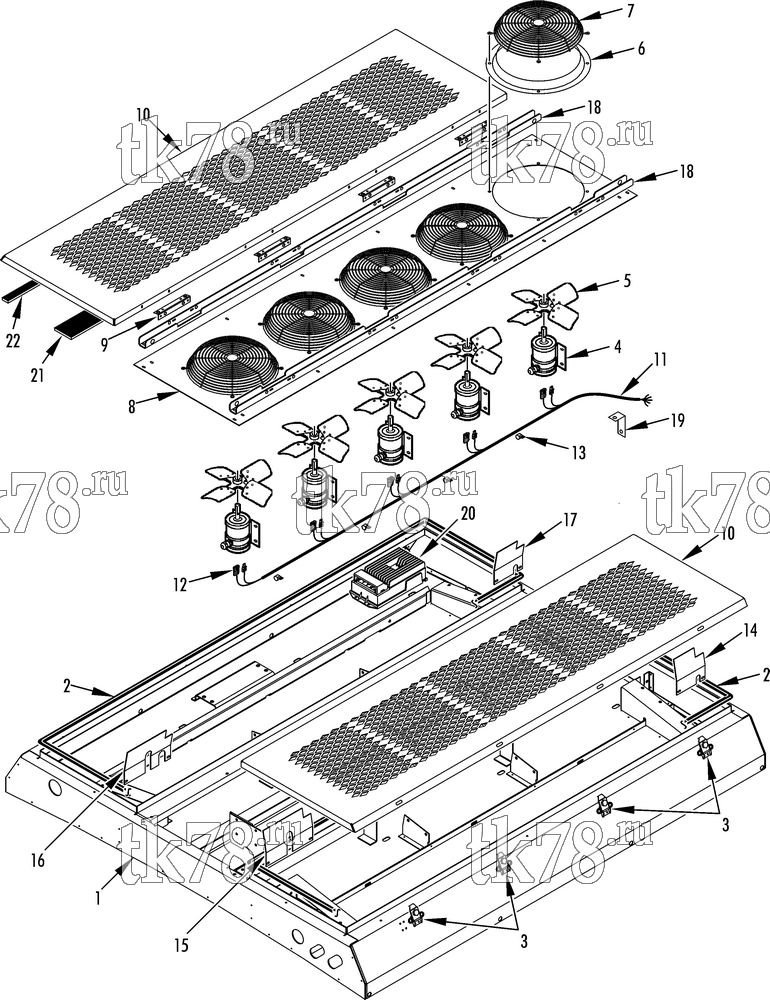

Установкa Thermo King AT13-M11 схема CONDENSER STRUCTURAL & ELECTRICAL (R5C) – 189E6
Обновление от: 3/9/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-6814 | FRAME - condenser | 1 | |
| 2 | 33-4483 | EXTRUSION - rubber | A/R | |
| 203-389 | SEALER - polyurethane (white) | A/R | ||
| 3 | 91-6774 | LATCH - cover | 8 | |
| 55-2991 | SCREW | 32 | ||
| 55-2001 | FLATWASHER | 64 | ||
| 55-4560 | NUT | 32 | ||
| 4 | 104-808 | MOTOR - condenser fan (for connectors see 115D14) | 5 | |
| 41-1911 | CONNECTOR - drive | 2 | ||
| 41-1912 | LOCK - secondary (3-pin connector) | 5 | ||
| 41-1913 | SEAL - cable | 15 | ||
| 55-3490 | SCREW - motor | 20 | ||
| 55-4931 | WASHER - special (0.406 id) | 20 | ||
| 55-4727 | WASHER - special (0.344 id) | 20 | ||
| 55-9010 | ISOLATOR - rubber | 40 | ||
| 91-8516 | ISOLATOR - rubber | 5 | ||
| 55-4954 | NUT | 20 | ||
| 5 | 78-859 | FAN - condenser | 5 | |
| 6 | 98-4334 | RING - inlet | 5 | |
| 7 | 91-5917 | GUARD - fan | 5 | |
| 55-2977 | SCREW - guard | 20 | ||
| 55-2086 | FLATWASHER | 20 | ||
| 55-1800 | LOCKWASHER | 20 | ||
| 55-3045 | WASHER - dome | 20 | ||
| 55-6526 | INSERT - threaded | 20 | ||
| 8 | 98-5307 | ORIFICE - fan | 1 | |
| 55-2957 | SCREW - orifice | 16 | ||
| 55-2086 | FLATWASHER | 16 | ||
| 55-1800 | LOCKWASHER | 16 | ||
| 55-6526 | INSERT - threaded | 16 | ||
| 9 | 91-6039 | HINGE - cover | 8 | |
| 55-2991 | SCREW - hinge | 32 | ||
| 55-2001 | FLATWASHER | 64 | ||
| 55-4560 | NUT | 32 | ||
| 10 | 98-6510 | COVER - condenser | 2 | |
| 33-4082 | STRIP - insulation (cut to 7.25 inch) | A/R | ||
| 92-6195 | STRAP - cover | 1 | ||
| 11 | 41-8438 | HARNESS - condenser (see 235D0) | 1 | |
| 12 | 41-1915 | CONNECTOR (3-pin) | 5 | |
| 41-1912 | LOCK - secondary (3-pin connector) | 5 | ||
| 13 | 55-9702 | CLAMP (.625 dia) | 5 | |
| 55-2977 | SCREW - clamp | 5 | ||
| 55-2086 | FLATWASHER | 10 | ||
| 55-4953 | NUT | 5 | ||
| 55-9228 | CLAMP - harness (.875 dia) | 3 | ||
| 55-2991 | SCREW | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-6721 | INSERT | 4 | ||
| 55-2330 | BANDWRAP | 4 | ||
| 14 | 92-2770 | PLATE - blockoff (rear, curbside) | 1 | |
| 15 | 92-2771 | PLATE - blockoff (front, curbside) | 1 | |
| 16 | 91-8656 | PLATE - blockoff (front, roadside) | 1 | |
| 17 | 92-2772 | PLATE - blockoff (rear, roadside) | 1 | |
| 51-833 | STOPPER (3/8 in thd) | 1 | ||
| 51-834 | STOPPER (7/16 in thd) | 1 | ||
| 55-2977 | SCREW - plate | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-6526 | INSERT | 8 | ||
| 18 | 98-6619 | CHANNEL - cover | 2 | |
| 19 | 91-6732 | BRACKET | 1 | |
| 20 | 41-3590 | MOTOR - drive | 1 | |
| 55-1587 | SCREW - motor | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-6526 | INSERT | 4 | ||
| 41-5892 | HARNESS - jumper (motor drive) | 1 | ||
| 33-316 | GROMMET (1.0 in id) | 1 | ||
| 203-524 | GREASE | A/R | ||
| 21 | 92-2620 | INSULATION - cover | 1 | |
| 22 | 99-6968 | STRIP - sealing (0.12 x 1 x 50 ft) | A/R |
