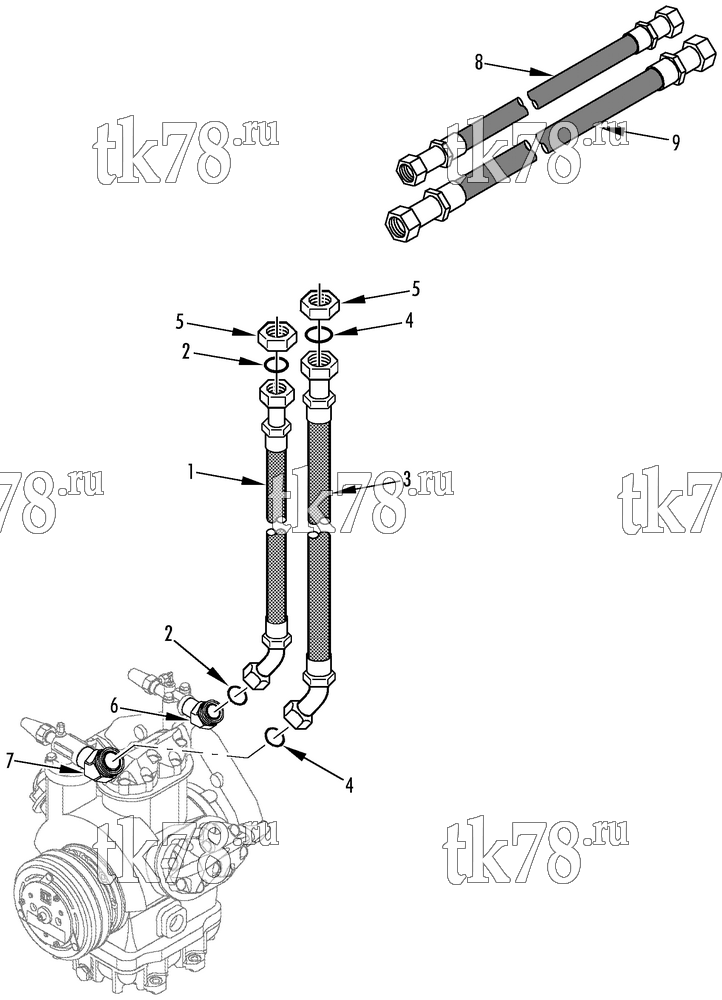

Установкa Thermo King AT13-M1, M1A & M1B схема COMPRESSOR CONNECTIONS & HOSES (KIT 819957, HIGH FLOOR) – 182B4
Обновление от: 11/4/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-1320 | HOSE - discharge (30.0 in lg, #20) | 1 | |
| 2 | 33-2790 | O-RING - discharge (brass) | 2 | |
| 33-1777 | O-RING - discharge (neoprene) | 2 | ||
| 3 | 66-9688 | HOSE - suction (39.3 in lg, #24) | 1 | |
| 4 | 33-920 | O-RING - suction | 4 | |
| 5 | 55-7401 | NUT - fitting | 4 | |
| 55-7402 | SLEEVE | 4 | ||
| 6 | 55-5887 | ADAPTER - discharge (#20) | 1 | |
| 7 | 55-7050 | ADAPTER - suction (#24) | 1 | |
| 8 | 61-1925 | HOSE - discharge (70 in lg, #12) | 1 | |
| 9 | 61-703 | HOSE - suction (67 in lg, #20) | 1 |
