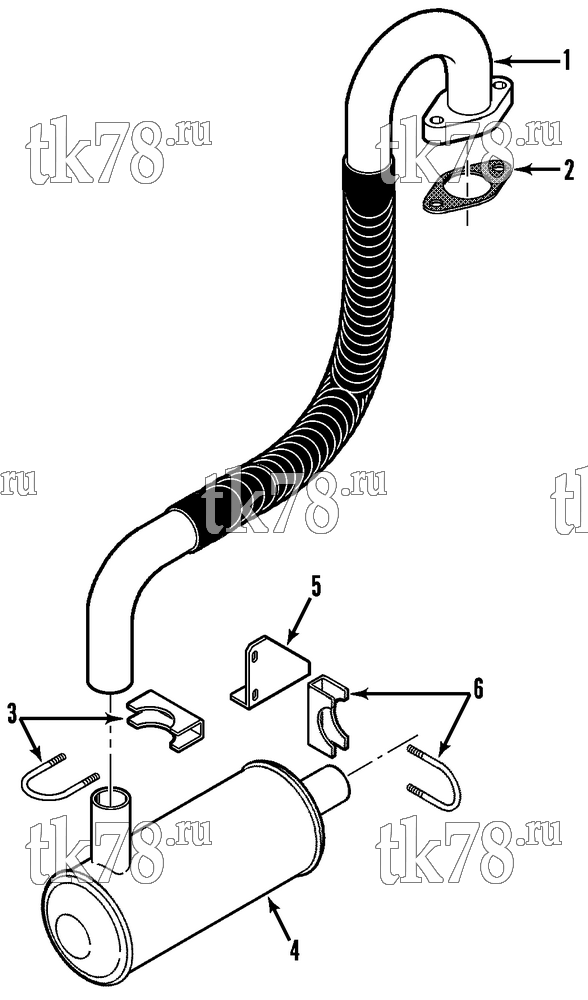

Установкa Thermo King AT12 схема MUFFLER GROUP – 143F3
Обновление от: 12/5/97
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-9011 | TUBE - exhaust (flexible) | 1 | |
| 55-3490 | SCREW - flange | 2 | ||
| 55-2958 | FLATWASHER | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 55-2114 | NUT | 2 | ||
| 2 | 33-2314 | GASKET - flange | 1 | |
| 33-2314 OEM | Прокладка глушителя, Isuzu 2.2 DI (D201), Yanmar 482 / 486 / 486V | 1 250 ₽ |
|
|
|
10-33-2314 | Прокладка глушителя, Isuzu 2.2 DI (D201), Yanmar 482 / 486 / 486V | 990 ₽ |
|
|
PP-33-2314 | Прокладка глушителя, Isuzu 2.2 DI (D201), Yanmar 482 / 486 / 486V | 480 ₽ |
|
| 3 | 55-8362 | CLAMP - tube | 2 | |
| 4 | 12-357 | MUFFLER | 1 | |
| 5 | 91-7666 | BRACKET - exhaust support | 1 | |
| 6 | 99-496 | U-CLAMP - support | 1 |
