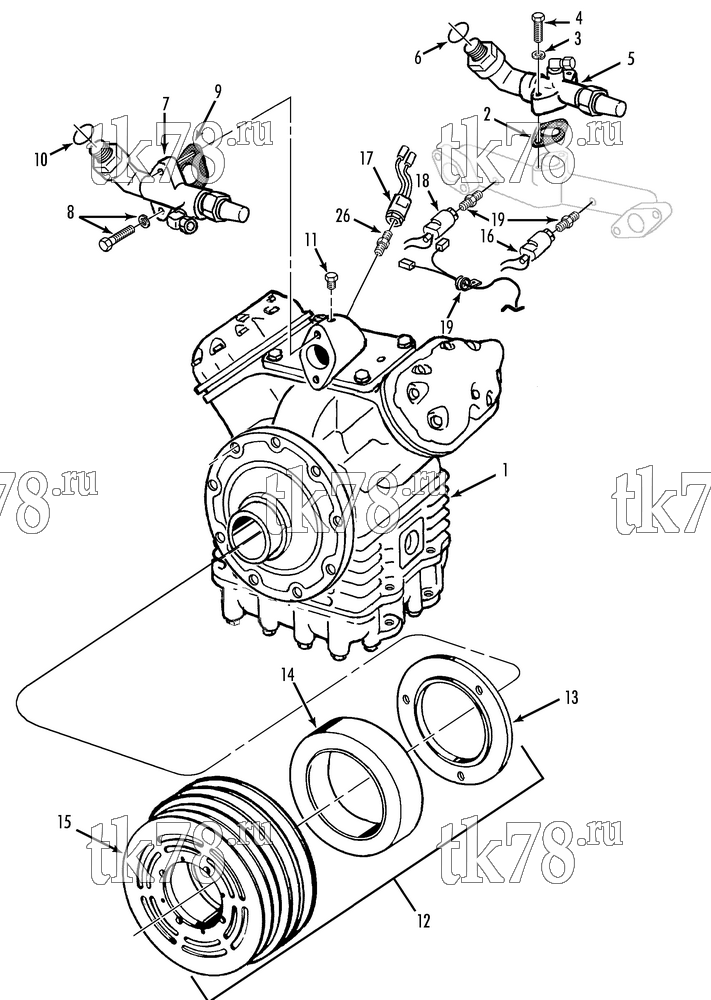

Установкa Thermo King AT11 схема COMPRESSOR GROUP (5D37227G07, KIT 715650) – 143F2
Обновление от: 9/19/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-916 | COMPRESSOR - X426 C5 (bus, see 230C5) | 1 | |
| 2 | 33-2805 | GASKET - manifold & discharge valve | 1 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 3 | 55-6804 | WASHER - sealing | 2 | |
| 4 | 55-6776 | SCREW - discharge valve | 2 | |
| 6 | 33-594 | O-RING | 1 | |
| 5 | 66-8893 | VALVE - discharge (see 142E10) | 1 | |
| 7 | 66-8891 | VALVE - suction (see 142E11) | 1 | |
| 8 | 55-201 | SCREW - suction valve | 2 | |
| 55-895 | FLATWASHER | 2 | ||
| 9 | 33-2541 | GASKET - suction valve | 1 | |
| 10 | 33-544 | O-RING | 1 | |
| 11 | 55-433 | PLUG - pipe | 1 | |
| 12 | 107-192 | KIT - clutch drive repair (see 153E8) | 1 | |
| 13 | 77-1083 | PLATE | 1 | |
| 14 | 45-1389 | FIELD - clutch (24VDC) | 1 | |
| 15 | 77-1663 | PULLEY (2-B/2-A grooves, 7.75/8.9 in od) | 1 | |
| 16 | 41-3345 | SENSOR - temperature (yellow band, for connector see 115D14) | 1 | |
| 17 | 44-2267 | SWITCH - lpco (blue band, for connectors see 115D14) | 1 | |
| 44-4338 | SWITCH - only | 1 | ||
| 19 | 11-2886 | VALVE (see 119G12) | 2 | |
| 18 | 41-2266 | SWITCH - hpco (red band, for connectors see 115D14) | 1 | |
| 304-752 | SWITCH - only | 1 | ||
| 19 | 55-5261 | CLAMP - harness | 2 |
