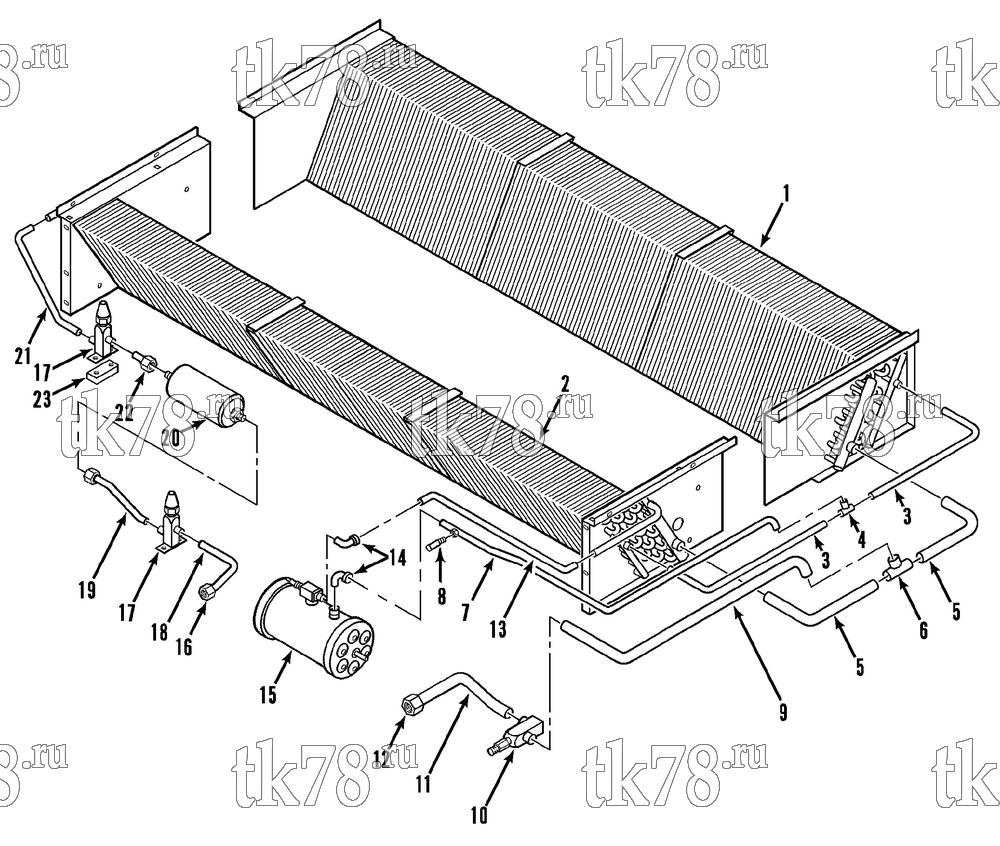

Установкa Thermo King AT11 схема CONDENSER REFRIGERATION – 143C8
Обновление от: 10/20/00
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1140 | COIL - condenser (rear) | 1 | |
| 2 | 67-1139 | COIL - condenser (front) | 1 | |
| 3 | 66-6913 | TUBE - liquid (coil to tee) | 2 | |
| 4 | 55-2296 | TEE | 1 | |
| 5 | 66-6914 | TUBE - discharge (coil to tee) | 2 | |
| 6 | 55-6174 | TEE | 1 | |
| 7 | 66-6230 | TUBE - tee to receiver tank | 1 | |
| 55-3295 | FITTING - saddle | 1 | ||
| 91-3557 | BRACKET - tube support | 2 | ||
| 91-3558 | PLATE - tube | 1 | ||
| 55-549 | CLAMP - tube | 2 | ||
| 55-1587 | SCREW - bracket | 4 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-4953 | NUT | 4 | ||
| 8 | 66-7392 | VALVE - relief (see 119B8) | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 9 | 66-6226 | TUBE - valve to tee | 1 | |
| 10 | 66-4172 | VALVE - shutoff | 1 | |
| 91-3556 | BRACKET - valve | 1 | ||
| 55-1587 | SCREW - bracket/valve | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-5943 | NUT | 2 | ||
| 11 | 66-6227 | TUBE - valve to bulkhead | 1 | |
| 12 | 55-5936 | NUT - shoulder | 1 | |
| 55-5938 | SLEEVE - adapter | 1 | ||
| 13 | 66-6231 | TUBE - receiver to subcool | 1 | |
| 14 | 55-1464 | ELBOW | 2 | |
| 15 | 67-1483 | TANK - receiver | 1 | |
| 55-4955 | NUT - tank | 2 | ||
| 55-2641 | FLATWASHER | 2 | ||
| 91-3555 | BRACKET - tank | 2 | ||
| 55-2963 | SCREW - bracket | 4 | ||
| 55-2958 | FLATWASHER | 4 | ||
| 55-2959 | LOCKWASHER | 4 | ||
| 16 | 55-7054 | NUT - shoulder | 1 | |
| 55-7052 | SLEEVE - adapter | 1 | ||
| 33-2789 | WASHER - sealing | 1 | ||
| 33-2193 | O-RING (11/16 id) | 1 | ||
| 17 | 66-2104 | VALVE - shutoff | 2 | |
| 66-2170 | CAP - valve | 1 | ||
| 18 | 66-6234 | TUBE - valve to bulkhead (before 9/00) | 1 | |
| 19 | 66-6233 | TUBE - dehydrator to valve | 1 | |
| 20 | 66-4858 | DEHYDRATOR | 1 | |
| 55-2365 | HANGER - dehydrator | 2 | ||
| 55-3121 | SCREW - dehydrator | 2 | ||
| 55-1587 | SCREW - hanger | 2 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-4953 | NUT (hexstop) | 2 | ||
| 21 | 66-8930 | TUBE - subcool to valve | 1 | |
| 22 | 66-8931 | TUBE - valve to dehydrator | 1 | |
| 23 | 91-8338 | SPACER - valve | 1 | |
| 55-3031 | SCREW - spacer/valve | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 |
