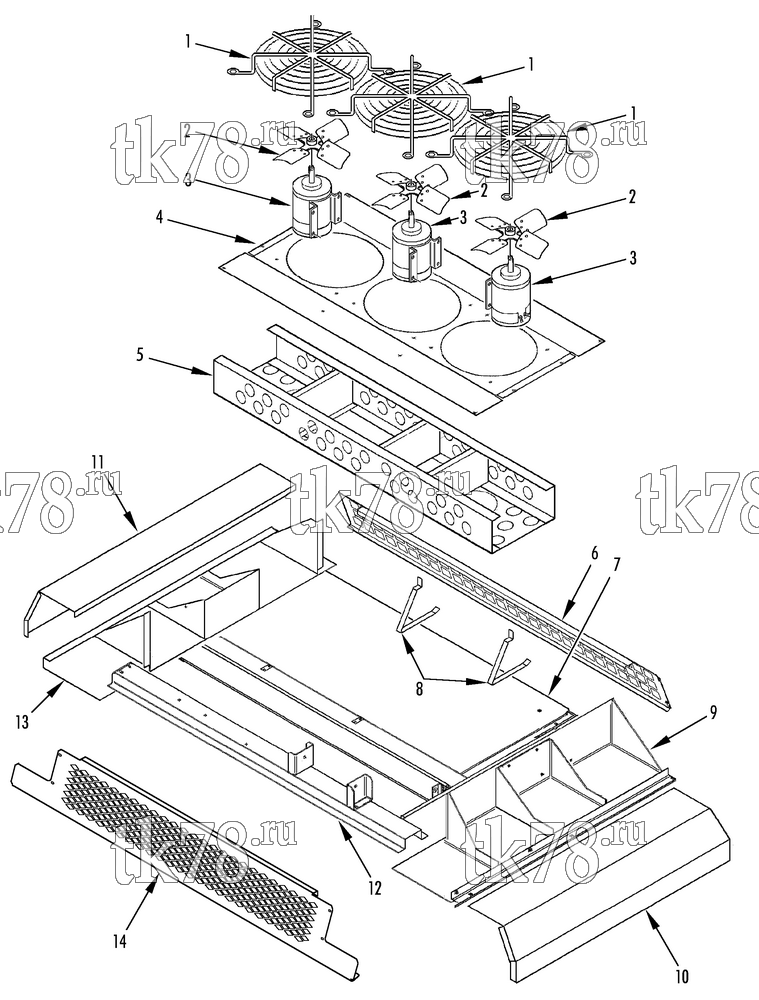

Установкa Thermo King AT11 схема CONDENSER STRUCTURAL - MOTORS & FANS – 103E2
Обновление от: 10/20/00
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-2037 | GUARD - fan | 3 | |
| 55-1587 | SCREW - guard | 12 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 55-1800 | LOCKWASHER | 12 | ||
| 55-3059 | NUT - captive | 12 | ||
| 2 | 78-422 | FAN - condenser | 3 | |
| 3 | 104-525 | MOTOR - condenser fan (see 120G12) | 3 | |
| 55-2969 | SCREW - motor | 12 | ||
| 55-2958 | FLATWASHER | 12 | ||
| 55-2959 | LOCKWASHER | 12 | ||
| 99-8335 | NUTSTRIP - motor | 6 | ||
| 4 | 98-4097 | ORIFICE - condenser fan | 1 | |
| 55-1587 | SCREW - orifice | 8 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-4953 | NUT | 4 | ||
| 5 | 98-4093 | CHANNEL - condenser motor | 1 | |
| 55-2969 | SCREW - channel | 4 | ||
| 55-2958 | FLATWASHER | 8 | ||
| 55-4954 | NUT | 4 | ||
| 6 | 98-4101 | PANEL - rear | 1 | |
| 55-1587 | SCREW - panel | 8 | ||
| 55-2086 | FLATWASHER | 10 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-3059 | NUT | 2 | ||
| 55-4953 | NUT | 2 | ||
| 7 | 98-4098 | PANEL - bottom | 1 | |
| 91-3554 | PLATE - weld screw | 4 | ||
| 55-2988 | RIVET - plate | 4 | ||
| 55-2991 | SCREW - panel (hh) | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 4 | ||
| 91-3071 | STRIP - insulation | 3 | ||
| 8 | 91-3559 | BRACKET - panel (rear) | 2 | |
| 55-2988 | RIVET - bracket | 4 | ||
| 9 | 98-4094 | BASE (roadside) | 1 | |
| 91-3553 | ANGLE - lifting (before 9/00) | 2 | ||
| 92-817 | BRACKET - lifting (after 8/00) | 2 | ||
| 55-2977 | SCREW - angle | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 4 | ||
| 10 | 98-4100 | PANEL (roadside) | 1 | |
| 11 | 98-4099 | PANEL (curbside) | 1 | |
| 55-1587 | SCREW - panel | 16 | ||
| 55-2086 | FLATWASHER | 16 | ||
| 55-4966 | NUT | 8 | ||
| 55-3059 | NUT | 12 | ||
| 55-4953 | NUT | 2 | ||
| 12 | 98-4096 | CHANNEL - receiver tank | 1 | |
| 55-2963 | SCREW - channel | 4 | ||
| 55-2958 | FLATWASHER | 4 | ||
| 55-2959 | LOCKWASHER | 4 | ||
| 55-4954 | NUT | 4 | ||
| 13 | 98-4095 | BASE (curbside) | 1 | |
| 91-3553 | ANGLE - lifting (before 9/00) | 2 | ||
| 92-818 | BRACKET - lifting (after 8/00) | 2 | ||
| 55-2977 | SCREW - angle | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 4 | ||
| 14 | 98-5888 | GUARD - front | 1 | |
| 55-1587 | SCREW - guard | 8 | ||
| 55-2086 | FLATWASHER | 10 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-4953 | NUT | 2 | ||
| 55-3059 | NUT - captive | 2 |
