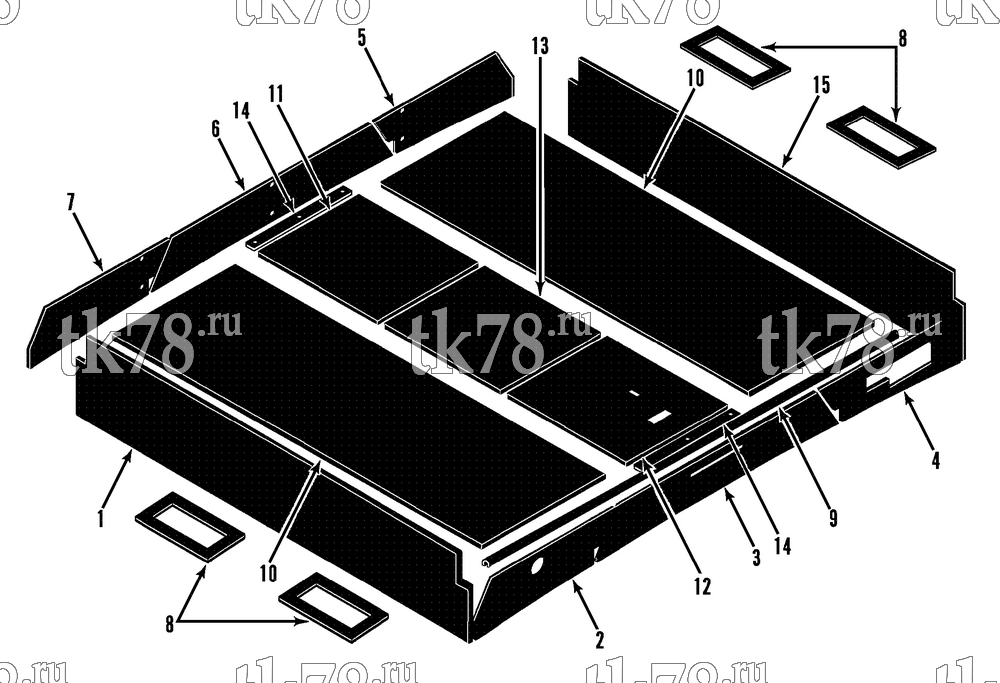

Установкa Thermo King AT10-M3B схема INSULATION - EVAPORATOR – 141C5
Обновление от: 1/20/00
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-8126 | INSULATION - panel (side) | 1 | |
| 91-7976 | INSULATION - panel (side, AT-10 M6A, M7) | 1 | ||
| 2 | 91-7978 | INSULATION (rear, curbside) | 1 | |
| 3 | 91-7732 | INSULATION (rear, center) | 1 | |
| 4 | 91-7977 | INSULATION (rear, roadside) | 1 | |
| 5 | 91-7736 | INSULATION (front, roadside) | 1 | |
| 6 | 91-7734 | INSULATION (front, center) | 1 | |
| 7 | 91-7735 | INSULATION (front, curbside) | 1 | |
| 8 | 33-2635 | GASKET - duct outlet | 4 | |
| 9 | 91-6190 | EXTRUSION (5 ft) | A/R | |
| 10 | 91-6086 | INSULATION - access cover | 2 | |
| 11 | 91-6744 | INSULATION - cover (center, front) | 2 | |
| 12 | 91-6084 | INSULATION - cover (center, rear) | 1 | |
| 13 | 91-6746 | INSULATION - cover (center) | 1 | |
| 14 | 33-2730 | GASKET - cover | 2 | |
| 15 | 91-8125 | INSULATION - panel (side) | 1 | |
| 91-7975 | INSULATION - panel (side, AT-10 M6A, M7) | 1 |
