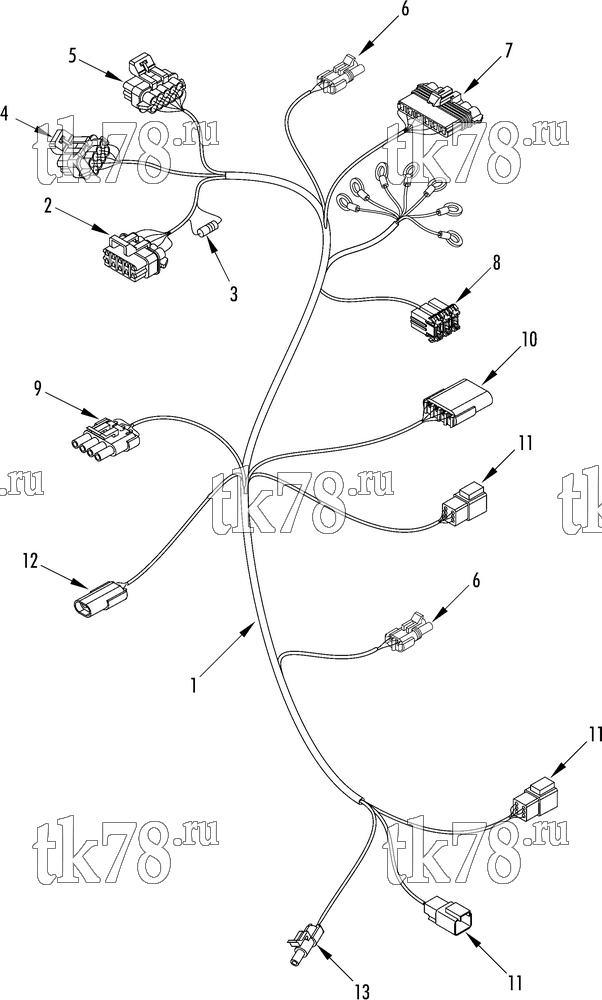

Установкa Thermo King AT10-M20 схема HARNESS SECONDARY CONTROL – 232A2
Обновление от: 3/18/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-8477 | HARNESS - secondary control | 1 | |
| 41-281 | TERMINAL - ring (red #6, 22-16 ga) | 1 | ||
| 44-7245 | TERMINAL - ring (red #10, 22-16 ga) | 5 | ||
| 651-295 | TERMINAL - ring (blue # 6, 16-14 ga) | 1 | ||
| 44-2791 | TERMINAL - ring (blue #10, 14-16 ga) | 1 | ||
| 44-2786 | TERMINAL - ring (blue 3/8, 16-14 ga) | 1 | ||
| 44-5066 | TERMINAL - fingrip (14-18 ga) | 4 | ||
| 2 | 41-4198 | CONNECTOR (10-pin, gray) | 1 | |
| 41-8981 | TERMINAL | 8 | ||
| 41-8982 | WIRE - seal | 8 | ||
| 41-8983 | PLUG - cavity | 2 | ||
| 41-5054 | LOCK - secondary | 1 | ||
| 3 | 41-5819 | RESISTOR (1.21 K ohm) | 1 | |
| 4 | 41-4199 | CONNECTOR (8-pin) | 1 | |
| 41-8981 | TERMINAL | 7 | ||
| 41-8982 | WIRE - seal | 7 | ||
| 41-8983 | PLUG - cavity | 1 | ||
| 41-5055 | LOCK - secondary | 1 | ||
| 5 | 41-4197 | CONNECTOR (10-pin, black) | 1 | |
| 41-8981 | TERMINAL | 6 | ||
| 41-8982 | WIRE - seal | 6 | ||
| 41-8983 | PLUG - cavity | 4 | ||
| 41-5054 | LOCK - secondary | 1 | ||
| 6 | 44-5838 | CONNECTOR - tower (2-pin, see 115D14) | 2 | |
| 44-5884 | TERMINAL - female (18-20 ga) | 2 | ||
| 44-8681 | SEAL - cable (red, 18-20 ga) | 2 | ||
| 7 | 41-1789 | CONNECTOR - tower (6-pin) | 1 | |
| 44-5884 | TERMINAL - female (18-20 ga) | 5 | ||
| 44-8681 | SEAL - cable (red, 18-20 ga) | 5 | ||
| 41-1790 | LOCK - secondary (6-pin connector) | 1 | ||
| 41-1787 | COVER - connector | 1 | ||
| 41-1788 | JUMPER - connector | 1 | ||
| 8 | 41-2973 | HOLDER - fuse | 3 | |
| 41-3327 | TERMINAL (14 awg) | 6 | ||
| 9 | 44-7881 | CONNECTOR - tower (4-pin) | 1 | |
| 44-5884 | TERMINAL - female (18-20 ga) | 1 | ||
| 44-8681 | SEAL - cable (red, 18-20 ga) | 1 | ||
| 44-7812 | PLUG - cavity (green) | 3 | ||
| 10 | 44-7880 | CONNECTOR - shroud (4-pin, see 115D14) | 1 | |
| 44-5883 | TERMINAL - male (18-20 ga) | 4 | ||
| 44-8681 | SEAL - cable (red, 18-20 ga) | 4 | ||
| 11 | 41-4281 | CONNECTOR (6-pin) | 3 | |
| 41-8978 | PIN (16-20 ga) | 6 | ||
| 41-8979 | PIN - sealing | 6 | ||
| 41-4282 | CONNECTOR - wedge | 3 | ||
| 12 | 44-5835 | CONNECTOR - shroud (2-pin, see 115D14) | 1 | |
| 44-5883 | TERMINAL - male (18-20 ga) | 2 | ||
| 44-8681 | SEAL - cable (red, 18-20 ga) | 2 | ||
| 13 | 44-7327 | CONNECTOR - tower (1-pin) | 1 | |
| 44-6324 | SEAL - cable (blue, 12-14 ga) | 1 | ||
| 44-5839 | TERMINAL - female (14-16 ga) | 1 |
