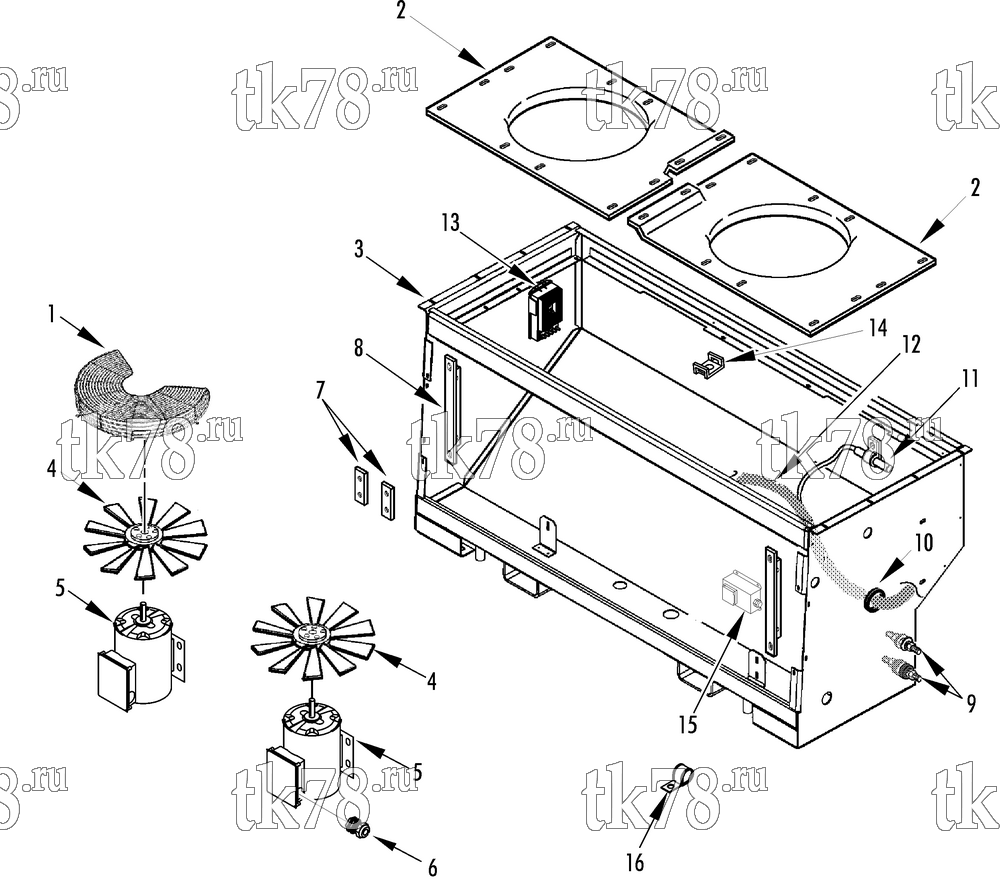

Установкa Thermo King AT10-M20 схема CONDENSER STRUCTURAL/ELECTRICAL – 223A4
Обновление от: 6/20/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-5414 | GUARD - fan | 2 | |
| 55-2979 | SCREW - guard | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-3045 | WASHER - dome | 8 | ||
| 2 | 98-3950 | ORIFICE - condenser fan | 2 | |
| 98-7199 | ORIFICE - condenser (C7 M1 & M2) | 2 | ||
| 99-6968 | STRIP - sealing (0.12 x 1 x 50 ft) | A/R | ||
| 55-2979 | SCREW - orifice | 24 | ||
| 55-2086 | FLATWASHER | 24 | ||
| 55-1800 | LOCKWASHER | 24 | ||
| 55-3045 | WASHER - dome | 16 | ||
| 55-8711 | INSERT | 24 | ||
| 3 | 98-5195 | FRAME - condenser | 1 | |
| 98-6843 | FRAME - condenser (C6 M7) | 1 | ||
| 98-7198 | FRAME - condenser (C7 M1 & M2) | 1 | ||
| 4 | 78-1077 | FAN - condenser | 2 | |
| 55-3089 | SCREW - fan | 4 | ||
| 55-2958 | FLATWASHER | 4 | ||
| 55-2959 | LOCKWASHER | 4 | ||
| 5 | 104-740 | MOTOR - fan | 2 | |
| 55-2969 | SCREW - motor | 8 | ||
| 55-4727 | WASHER - spacer | 8 | ||
| 55-2959 | LOCKWASHER | 8 | ||
| 6 | 55-6141 | CONNECTOR - motor (liquid tite) | 2 | |
| 55-2635 | LOCKNUT (connector) | 2 | ||
| 7 | 99-6861 | NUTSTRIP - motor | 4 | |
| 8 | 91-2858 | BRACKET - side panel | 2 | |
| 55-2977 | SCREW - bracket | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-8711 | INSERT | 8 | ||
| 9 | 55-3167 | STUD - terminal | 2 | |
| 55-5901 | WASHER - shoulder (polyester) | 1 | ||
| 55-5902 | FLATWASHER (polyester) | 1 | ||
| 55-671 | NUT (hexjam, brass) | 8 | ||
| 55-448 | FLATWASHER (brass) | 8 | ||
| 55-3066 | LOCKWASHER (internal, brass) | 8 | ||
| 55-3672 | LOCKWASHER (internal/external, brass) | 1 | ||
| 10 | 33-629 | GROMMET (1.0 id) | 1 | |
| 11 | 41-7706 | SENSOR - temperature | 1 | |
| 55-9720 | CLAMP - sensor | 1 | ||
| 12 | 41-3434 | HARNESS - condenser (for connectors see 115D14) | 1 | |
| 13 | 41-3590 | DRIVE - motor upgrade | 2 | |
| 841-3590 | DRIVE - motor (remanufactured) | 2 | ||
| 40-885 | KIT - power cleanup (see 187F2) | 1 | ||
| 41-3298 | HARNESS - drive (for connectors see 115D14) | 1 | ||
| 41-5892 | HARNESS - drive, jumper (for connectors see 115D14) | 1 | ||
| 55-2977 | SCREW - drive | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-8711 | INSERT | 8 | ||
| 14 | 99-3427 | MOUNT - cable tie | 5 | |
| 55-3035 | RIVET - mount | 5 | ||
| 15 | NSS | BOX - circuit breaker (see 163A4) | 1 | |
| 16 | 55-2536 | CLAMP (0.250 dia) | 3 | |
| 55-9701 | CLAMP (0.375 dia) | 3 | ||
| 55-3026 | CLAMP (0.625 dia) | 1 | ||
| 55-9721 | CLAMP (0.875 dia) | 2 | ||
| 55-6147 | CLAMP (0.937 dia) | 2 | ||
| 55-9722 | CLAMP (1.125 dia) | 1 | ||
| 55-5639 | SCREW (HHSM # 10 x 1/2 in lg) | 1 | ||
| 55-3021 | SCREW - clamp (1/4-20 x 1/2 in lg) | 7 | ||
| 55-2086 | FLATWASHER | 9 | ||
| 55-1800 | LOCKWASHER | 3 | ||
| 55-8711 | INSERT | 3 | ||
| 55-4953 | NUT | 3 |
