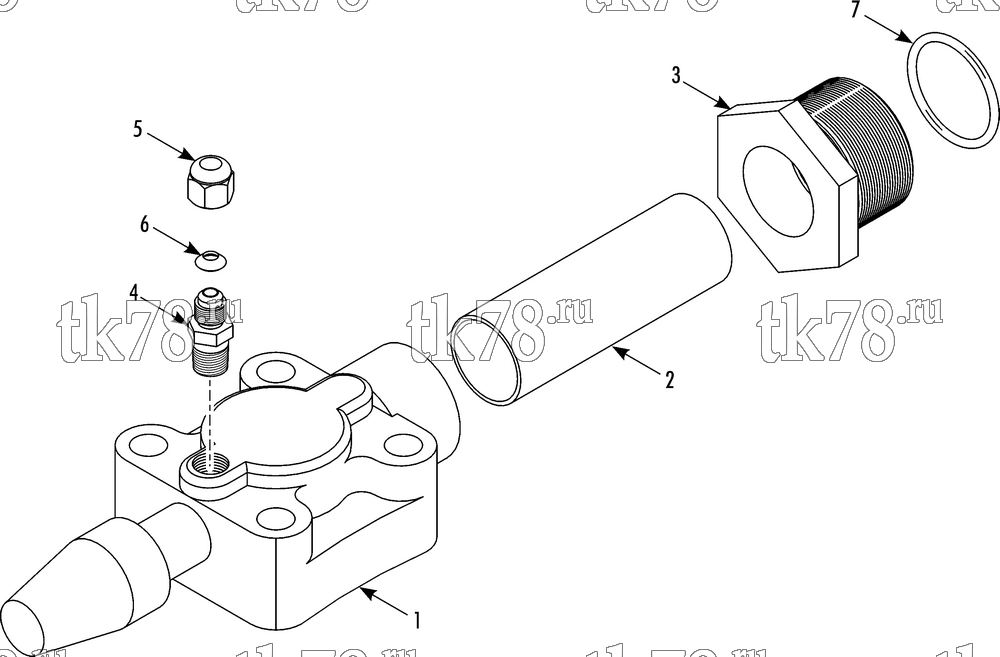

Установкa Thermo King AT10-M15 схема VALVE ASSEMBLY - SUCTION – 269G4
Обновление от: 7/22/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 61-6576 | VALVE - suction (assembly) | 1 | ||
| 1 | 61-1977 | VALVE - suction | 1 | |
| 2 | NSS | TUBE - valve | 1 | |
| 3 | 55-6570 | ADAPTER - bulkhead (#24, o-ring seal) | 1 | |
| 4 | 55-1685 | COUPLING | 1 | |
| 5 | 55-1983 | CAP | 1 | |
| 6 | 33-768 | GASKET - cap | 1 | |
| 7 | 33-920 | O-RING | 1 | |
| 203-393 | SEALER - thread | A/R |
