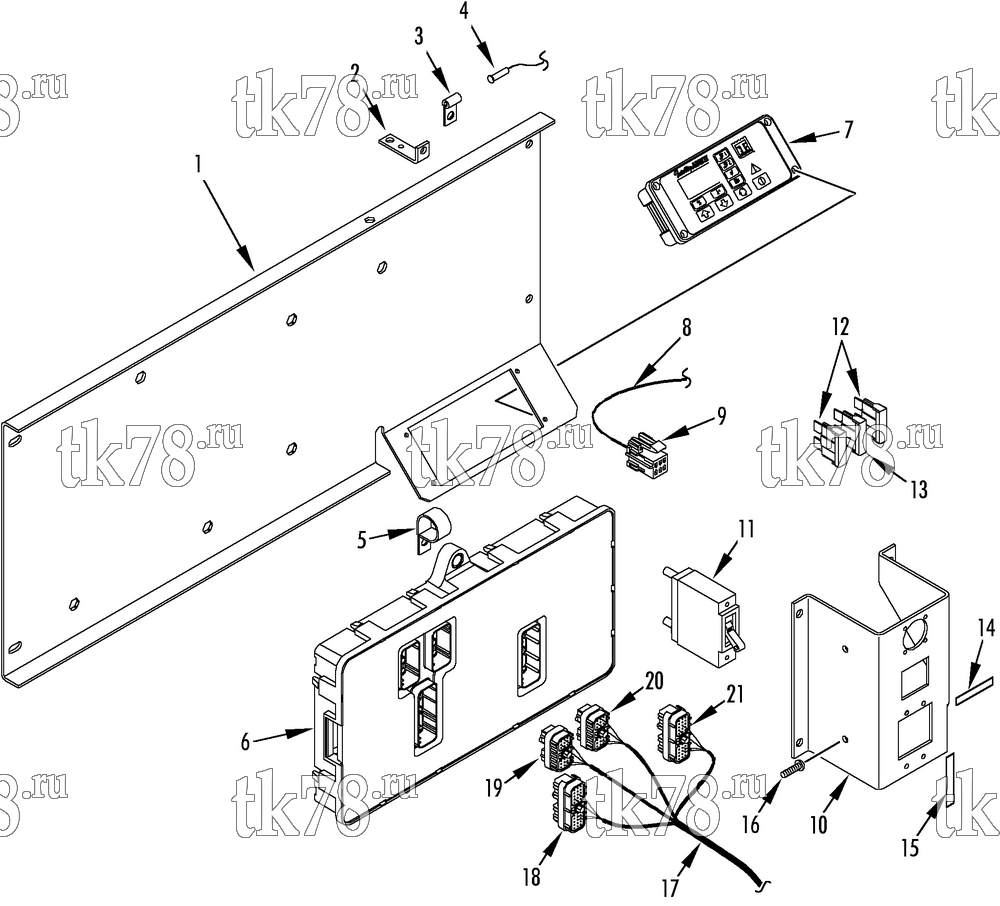

Установкa Thermo King AT10-M12 схема CONTROL PANEL ASSEMBLY – 223A1
Обновление от: 8/22/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-6244 | PLATE - IntelligAIRE | 1 | |
| 55-1587 | SCREW - plate | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-3059 | NUT - captive | 4 | ||
| 2 | 91-6752 | BRACKET - sensor | 1 | |
| 55-3027 | SCREW - bracket | 1 | ||
| 55-2996 | LOCKWASHER | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-8752 | INSERT | 1 | ||
| 3 | 55-9720 | CLAMP - sensor | 1 | |
| 55-3027 | SCREW - clamp | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-4560 | NUT | 1 | ||
| 4 | 41-7706 | SENSOR - temperature | 1 | |
| 5 | 55-9721 | CLAMP (0.875 dia) | 1 | |
| 6 | 41-3616 | MODULE - IntelligAIRE II | 1 | |
| 55-2979 | SCREW - module | 3 | ||
| 55-1800 | LOCKWASHER | 3 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 55-8711 | INSERT | 3 | ||
| 7 | 41-7199 | MODULE - display | 1 | |
| 55-3256 | SCREW - module | 4 | ||
| 55-5754 | NUT | 4 | ||
| 8 | 41-4536 | HARNESS - unit display | 1 | |
| 9 | 41-4284 | CONNECTOR (6F) | 1 | |
| 41-4285 | LOCK - terminal | 2 | ||
| 10 | 92-1763 | PLATE - circuit breaker | 1 | |
| 55-1587 | SCREW - plate | 3 | ||
| 55-1800 | LOCKWASHER | 3 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 55-8711 | INSERT | 3 | ||
| 11 | 41-2455 | BREAKER - circuit (85 amp, manual reset) | 1 | |
| 55-3513 | SCREW - circuit breaker | 4 | ||
| 55-3013 | FLATWASHER | 8 | ||
| 55-3014 | LOCKWASHER | 4 | ||
| 12 | 41-3996 | FUSE (10 amp) | 2 | |
| 13 | 41-3995 | FUSE (15 amp) | 1 | |
| 14 | 92-1764 | MARKSTRIP (10A/15A/10A) | 1 | |
| 15 | 92-1293 | MARKSTRIP (evaporator fan) | 1 | |
| 16 | 55-3000 | SCREW - ground | 1 | |
| 55-2001 | FLATWASHER | 4 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-3496 | LOCKWASHER (internal/external tooth) | 1 | ||
| 55-2965 | NUT | 2 | ||
| 17 | 41-7885 | HARNESS - main IntelligAIRE (see 177D2) | 1 | |
| 40-975 | KIT - temperature sensor (coil) | 1 | ||
|
40-975 OEM | Датчик температуры к-т, некалиброванный | 10 310 ₽ |
|
|
10-40-975 | Датчик температуры к-т, некалиброванный | 4 660 ₽ |
|
| 41-5210 | COLLAR - crimp | 2 | ||
| 92-846 | HEATSHRINK (1/2 in) | 2 | ||
| 41-7706 | SENSOR - water temperature | 1 | ||
| 18 | 44-8857 | CONNECTOR | 1 | |
| 19 | 44-8858 | CONNECTOR | 1 | |
| 20 | 41-4135 | CONNECTOR | 1 | |
| 21 | 41-4136 | CONNECTOR | 1 |
