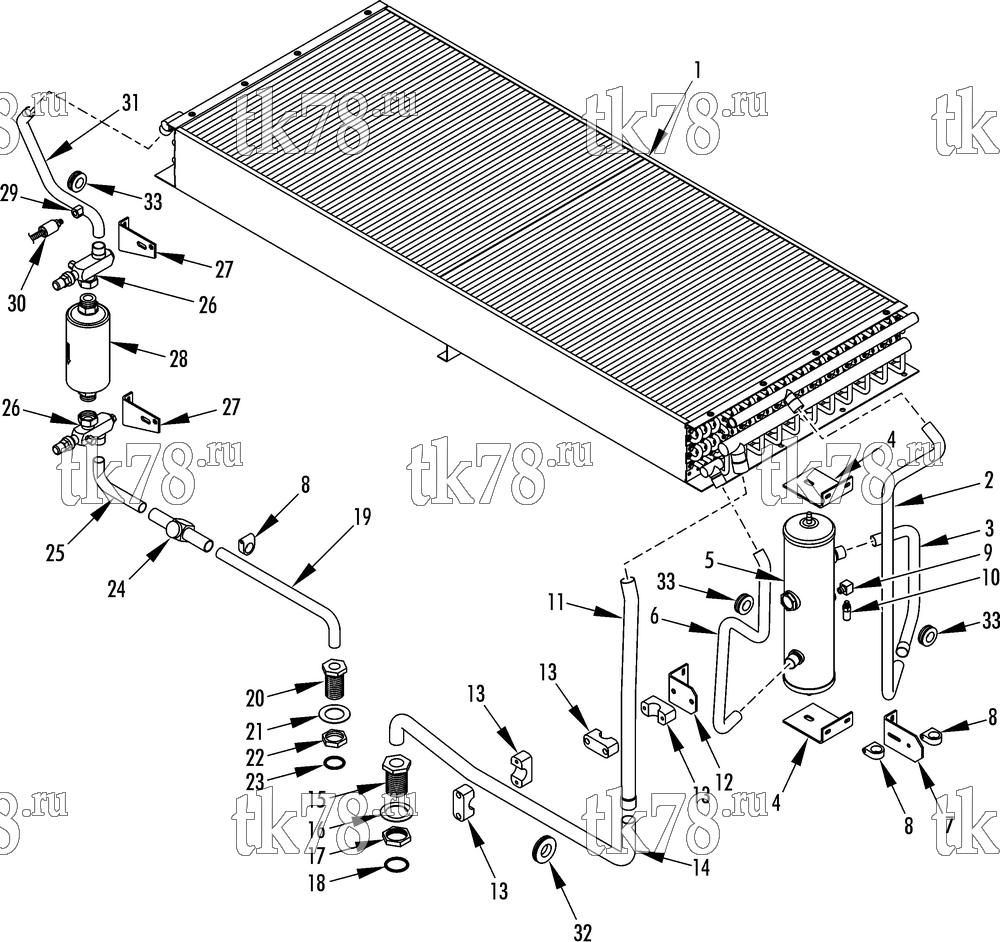

Установкa Thermo King AT10-M12 схема CONDENSER REFRIGERATION GROUP – 205A6
Обновление от: 10/26/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2005 | COIL - condenser/subcool | 1 | |
| 55-2977 | SCREW - coil | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-8711 | INSERT - threaded | 8 | ||
| 99-6968 | STRIP - sealing (50 ft) | A/R | ||
| 2 | 66-9960 | TUBE - coil to receiver (C6 M7,M8 & M9) | 1 | |
| 61-3300 | TUBE - coil to receiver (C7 M1,M2 & M3) | 1 | ||
| 3 | 66-9961 | TUBE - receiver to swage | 1 | |
| 4 | 91-8119 | BRACKET - receiver tank | 2 | |
| 55-2977 | SCREW - bracket | 4 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | NUT | 4 | ||
| 5 | 67-2006 | TANK - receiver | 1 | |
| 55-4955 | NUT - receiver tank | 2 | ||
| 55-2641 | FLATWASHER | 4 | ||
| 6 | 61-2664 | TUBE - subcool to receiver | 1 | |
| 7 | 92-2855 | BRACKET - tube support (C6 M7,M8 & M9) | 1 | |
| 92-4994 | BRACKET - tube support (C7 M1,M2 & M3) | 1 | ||
| 55-2977 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-8711 | INSERT - threaded | 2 | ||
| 8 | 55-7013 | CLAMP - tube | 3 | |
| 55-3462 | SCREW - clamp | 3 | ||
|
20-55-3462 | Болт | 600 ₽ |
|
| 55-2086 | FLATWASHER | 6 | ||
| 55-4953 | NUT | 2 | ||
| 9 | 55-636 | ELBOW - relief valve | 1 | |
| 10 | 66-7392 | VALVE - relief (see 119B8) | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 66-2297 | ADAPTER - relief valve | 1 | ||
| 11 | 61-1712 | TUBE - swage to coil | 1 | |
| 12 | 91-8120 | BRACKET - tube support | 1 | |
| 55-2977 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-8711 | INSERT - threaded | 2 | ||
| 13 | 91-6554 | CLAMP - suction tube | 4 | |
| 55-3344 | SCREW - clamp | 4 | ||
|
20-55-3344 | Болт | 520 ₽ |
|
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | NUT | 4 | ||
| 14 | 66-9380 | TUBE - liquid fitting to swage | 1 | |
| 15 | 55-7832 | ADAPTER - bulkhead (#20) | 1 | |
| 16 | 55-5742 | LOCKWASHER | 2 | |
| 17 | 55-5739 | NUT - bulkhead | 2 | |
| 18 | 33-2790 | WASHER - sealing | 1 | |
| 19 | 66-8795 | TUBE - indicator to adapter | 1 | |
| 20 | 55-7380 | ADAPTER - bulkhead (#16) | 1 | |
| 21 | 55-5741 | LOCKWASHER | 1 | |
| 22 | 55-5740 | NUT - bulkhead | 1 | |
| 23 | 33-2789 | WASHER - sealing | 1 | |
| 24 | 66-6976 | INDICATOR - liquid | 1 | |
| 25 | 66-8796 | TUBE - valve to indicator | 1 | |
| 26 | 66-5946 | VALVE - shutoff | 2 | |
| 55-2977 | SCREW - valve/bracket (1/4-20) | 4 | ||
| 55-2086 | FLATWASHER (1/4) | 8 | ||
| 55-4953 | NUT (1/4-20) | 4 | ||
| 55-8926 | SCREW (3/8-24) | 2 | ||
| 27 | 91-8122 | BRACKET - valve | 2 | |
| 28 | 306-221 | DEHYDRATOR | 1 | |
| 29 | 66-4553 | FITTING - saddle | 1 | |
| 30 | 44-5840 | SWITCH - hpco (R134a, for connectors see 115D14) | 1 | |
| 44-5841 | SWITCH - only (R134a) | 1 | ||
| 44-5833 | SWITCH - hpco (R22 & R407c, for connectors see 115D14) | 1 | ||
| 44-5834 | SWITCH - only (R22 & R407c) | 1 | ||
| 31 | 66-8794 | TUBE - coil to valve | 1 | |
| 32 | 33-2642 | GROMMET - tube (1-1/8 id) | 1 | |
| 33 | 33-507 | GROMMET - tube (7/8 id) | 3 |
