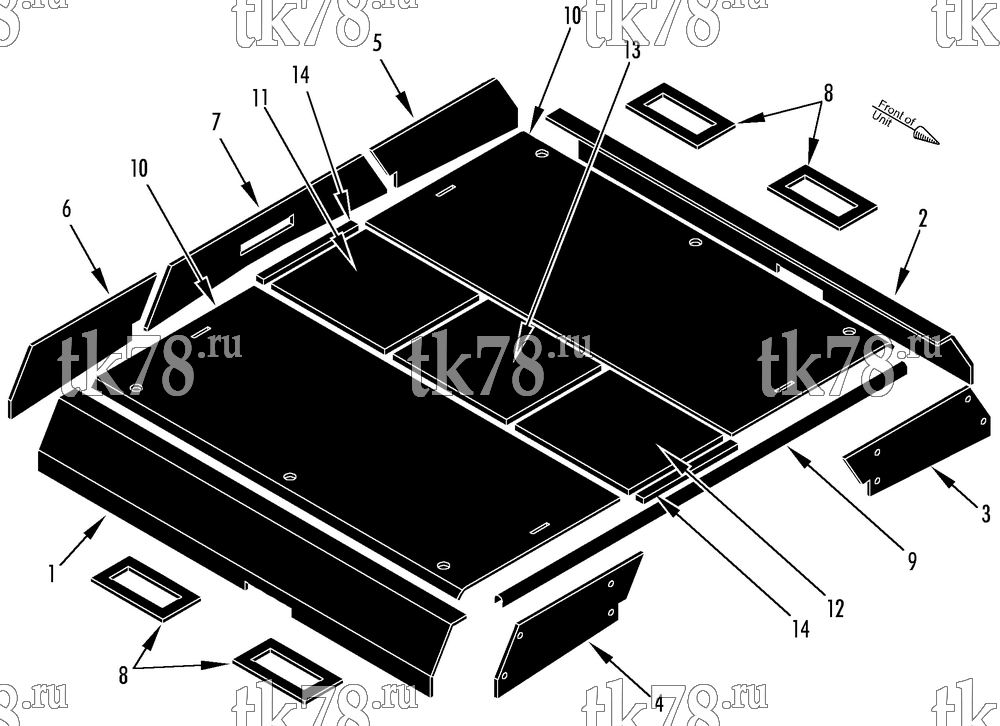

Установкa Thermo King AT10-M12 схема EVAPORATOR INSULATION – 185A6
Обновление от: 4/18/05
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-2860 | INSULATION - curbside | 1 | |
| 2 | 92-2861 | INSULATION - roadside | 1 | |
| 3 | 92-2862 | INSULATION - roadside (front) | 1 | |
| 4 | 92-2863 | INSULATION - curbside (front) | 1 | |
| 5 | 92-2864 | INSULATION - roadside (rear) | 1 | |
| 6 | 92-6315 | INSULATION - curbside (rear) | 1 | |
| 7 | 92-1781 | INSULATION - center (rear) | 1 | |
| 8 | 33-2635 | GASKET - duct outlet | 4 | |
| 9 | 92-2474 | EXTRUSION (14.65 ft) | A/R | |
| 10 | 92-2866 | INSULATION - access cover | 2 | |
| 11 | 91-6744 | INSULATION - cover (center, rear) | 2 | |
| 12 | 91-6084 | INSULATION - cover (center, front) | 1 | |
| 13 | 91-6746 | INSULATION - cover (center) | 1 | |
| 14 | 33-2730 | GASKET - cover | 2 |
