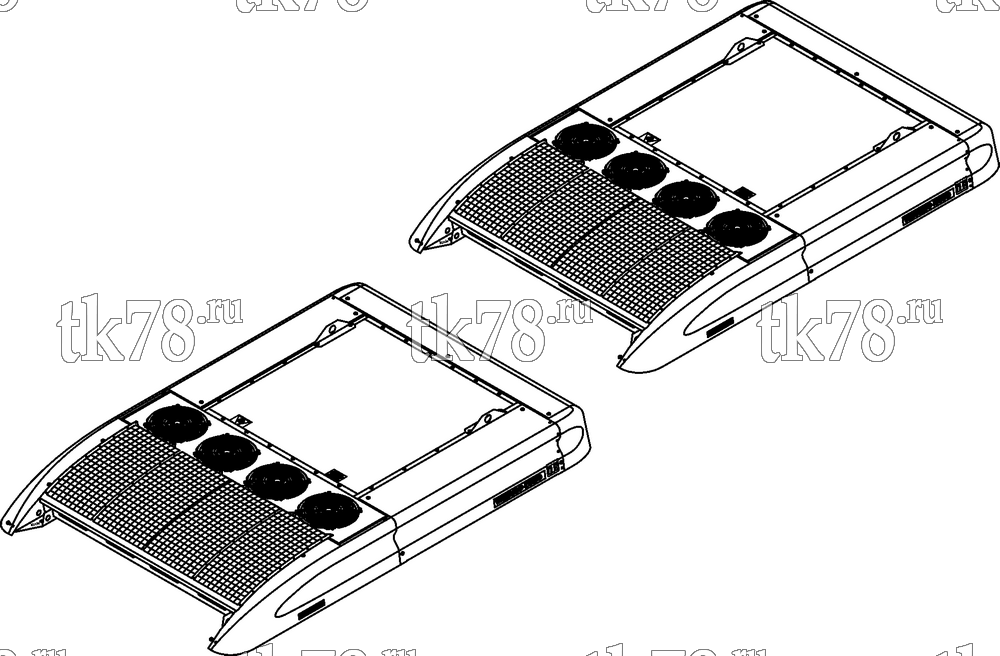

Установкa Thermo King ASR-160 схема ASR-160 REFERENCE SHEET – 11U14
Обновление от: 6/21/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 920336 | ASR-160 N 1000 | 6/06 | ||
| 920337 | ASR-160 N 1004 | 6/06 | ||
| 920346 | ASR-160 1000 | 6/06 | ||
| 920347 | ASR-160 1004 | 6/06 | ||
| 006533 | Tube Heating System without Heat Valve - Citi, Coach RT | 6/06 | ||
| 720749 | Electrical Circuiting, ASR-160 for CA II | 6/06 | ||
| 720753 | ClimaAIRE II DP for ASR with Harnesses (M16+4, C3, S4m) Vie | 6/06 | ||
| 720772 | ClimaAIRE II DP for ASR with Harnesses (M9+8, C8, S6m) Frig | 6/06 | ||
| 719302 | Harness, ClimaAIRE (Unit to Compressor - 8.3 m length) | 6/06 | ||
| 720028 | Harness, ClimaAIRE (Unit to Compressor - 14 m length) | 6/06 | ||
| 720027 | Harness, ClimaAIRE (Unit to Compressor - 18 m length) | 6/06 | ||
| 720754 | Harness (A/C Unit-Comp. S616 - 10 m length) | 6/06 | ||
| 720755 | Harness (A/C Unit-Comp. S616 - 18 m length) | 6/06 | ||
| 007138 | Fresh Air Damper - ASR-160 | 6/06 | ||
| 006721 | NO Fresh Air Damper - ASR-160 | 6/06 | ||
| 700278 | Compressor S616-HPC, R134a, 24V, Pulley 2/5V, 207 mm | 6/06 | ||
| 720587 | Compressor X430-HPC, R134a, 24V, Pulley 2B/2A, 8.03 in / 8.89 in | 6/06 | ||
| 720588 | Compressor X430-HPC, R134a, 24V, Pulley 2B/2A, 8.03 in / 8.89 in, Turn Head, Add Spacer Disch Tubes | 6/06 | ||
| 720590 | Compressor X430-HPC, R134a, 24V, Pulley 12-K, Width 2.28 in, Dia 7.75 in | 6/06 | ||
| 720855 | Compressor FKX 40/655, Clutch LA16.172 | 6/06 | ||
| 720856 | Compressor FKX 40/655, Clutch LA16.156 | 6/06 | ||
| 720857 | Compressor FKX 40/655, Clutch LA16.168 | 6/06 | ||
| 719362 | Compressor FKX 40/655, Pulley 2B, Dia 173 mm, without Service Valves - use with Kit 719363 or 720688 | 6/06 | ||
| 700416 | Kit - Compressor S616 - TK China | 6/06 | ||
| 880233 | Kit - Adapters for X430 Compressor (#20, #24) | 6/06 | ||
| 880153 | Kit - Adapters for S616 Compressor (#20, #24) | 6/06 | ||
| 719305 | Kit - Alternator, 150A, 24VDC, 24V Excitation, 3.25 in for ClimaAIRE | 6/06 | ||
| 719306 | Kit - Alternator, 125A, 24VDC, 12V Excitation, 3.25 in for ClimaAIRE | 6/06 | ||
| 880256 | Kit - Installation, ASR-140/160 | 6/06 | ||
| 880255 | Return Air Grille - ASR-160 | 6/06 | ||
| 720750 | Kit - Water Valves (with Adapters) | 6/06 | ||
| 720751 | Kit - Harness (Unit to Water Solenoid Valve - 20 m length) | 6/06 | ||
| 720771 | Kit - Harness (Unit to Water Solenoid Valve - 10 m length) | 6/06 | ||
| 700291 | Kit - Water Valve, 2-way Servomotor | 6/06 | ||
| 700292 | Kit - Water Valve, 3-way Servomotor | 6/06 | ||
| 700293 | Kit - Harness, Water Valve Servomotor - 10 m | 6/06 | ||
| 700294 | Kit - Harness, Water Valve Servomotor - 20 m | 6/06 | ||
| 719005 | Kit - Water Boost Pump, 27VDC, Hose Connection id 38 mm, 5000 L/Hr | 6/06 | ||
| 719006 | Harness (Unit to Water Boost Pump - 14 m length) | 6/06 | ||
| 719007 | Harness (Unit to Water Boost Pump - 9 m length) | 6/06 | ||
| 719008 | Harness (Unit to Water Boost Pump - 7.6 m length) | 6/06 | ||
| 720824 | ClimaAIRE II Extension Harness - 7 m | 6/06 | ||
| 720320 | Kit - Adapters, id 19 mm / 38 mm | 6/06 | ||
| 719701 | Kit - Reheat Option (Software for ClimaAIRE - Factory Settings) | 6/06 | ||
| 720696 | Fitting & Hose Kit for ASR-160 | 6/06 | ||
| 720752 | Kit - Fittings & Hose Refrigerant for ASR-140/160 (GF) | 6/06 | ||
| 720698 | Kit - Muffler with Hose id 35 mm (#20) | 6/06 | ||
| 720688 | Kit - Valve SPECIAL for Compr FKX 40/655 (FRGL application) with Harness, Screws (for #20, #24 Hose) | 6/06 | ||
| 720319 | Kit - Solder Adapters for ASR unit | 6/06 | ||
| 720321 | Kit - Solder Adapters, #16, #20 | 6/06 | ||
| 720823 | Kit - Hoses, NC & Fittings - length 1 m (#20 Fittings 45 deg - 0 deg, #24 Fittings 45 deg - 0 deg) | 6/06 | ||
| 720864 | Kit - Hoses, NC & Fittings - length 1 m (#20; #24; Flange-ORS) | 6/06 | ||
| 720865 | Kit - Fittings (#16 45 deg - 0 deg; #20 45 deg - 0 deg) | 6/06 | ||
| 720866 | Kit - Fittings (#16 straight; #20 straight) | 6/06 | ||
| 720216 | Kit - Refrigerant Hose (#16, #20, 6 m without Fittings) | 6/06 | ||
| 099721 | Kit - Bottom Insulation - Citi RT, Coach RT | 6/06 | ||
| 700138 | Kit - Battery Cables, 13 m | 6/06 | ||
| 700187 | Kit - Battery Cables, 10.5 m | 6/06 |
