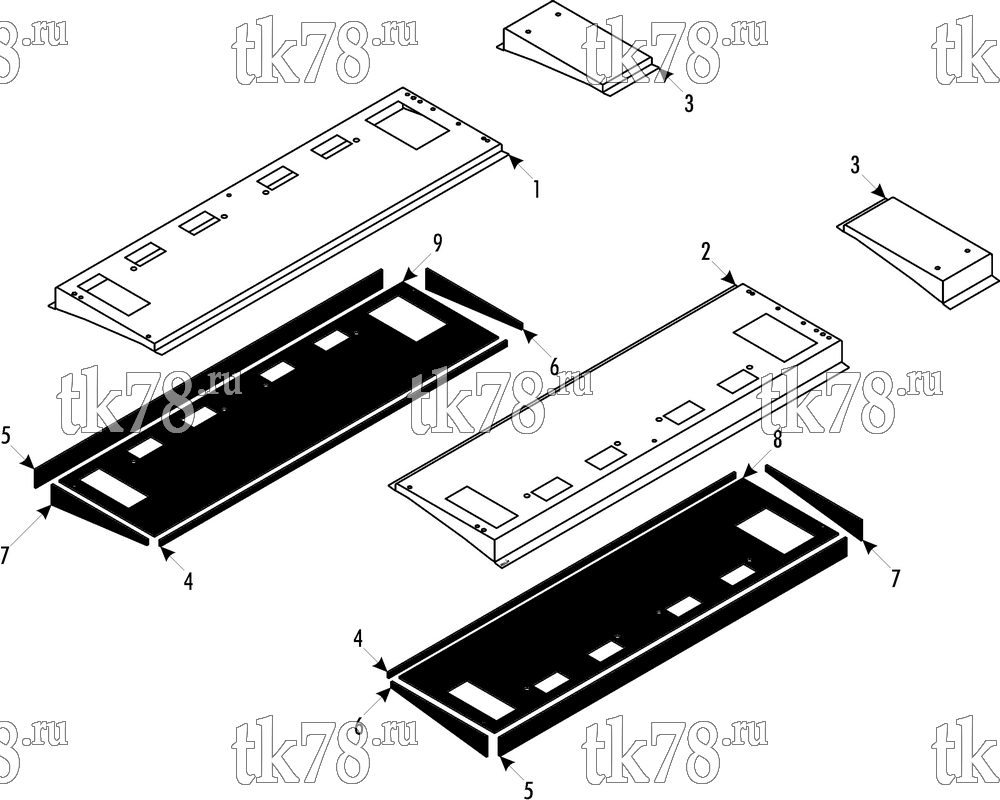

Установкa Thermo King ASR-1400 схема FRAME INSTALLATION KIT (701367 & 701368) – 245C3
Обновление от: 7/31/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-8651 | FRAME - installation (height 77 mm) | 2 | |
| 92-8652 | FRAME - installation (height 51 mm) | 2 | ||
| 2 | 92-8653 | FRAME - installation (height 77 mm) | 2 | |
| 92-8654 | FRAME - installation (height 51 mm) | 2 | ||
| 3 | 92-8655 | SUPPORT - front (height 77 mm) | 4 | |
| 92-8656 | SUPPORT - front (height 51 mm) | 4 | ||
| 4 | 92-8657 | INSULATION (for height 77 mm) | 4 | |
| 92-8658 | INSULATION (for height 51 mm) | 4 | ||
| 5 | 92-8659 | INSULATION (for height 77 mm) | 4 | |
| 92-8660 | INSULATION (for height 51 mm) | 4 | ||
| 6 | 92-8661 | INSULATION (for height 77 mm) | 4 | |
| 92-8662 | INSULATION (for height 51 mm) | 4 | ||
| 7 | 92-8663 | INSULATION (for height 77 mm) | 4 | |
| 92-8664 | INSULATION (for height 51 mm) | 4 | ||
| 8 | 92-8665 | INSULATION | 2 | |
| 9 | 92-8666 | INSULATION | 2 | |
| 55-6987 | SCREW - cap HH M8X1.25X30 SS | 12 | ||
| 55-7066 | WASHER - lock M8 SS | 12 | ||
| 55-7085 | FLATWASHER | 12 | ||
| 51-2070 | SPACER | 84 | ||
| 51-118 | NUT - hexagonal - captive M8X1.25 SS | 16 |
