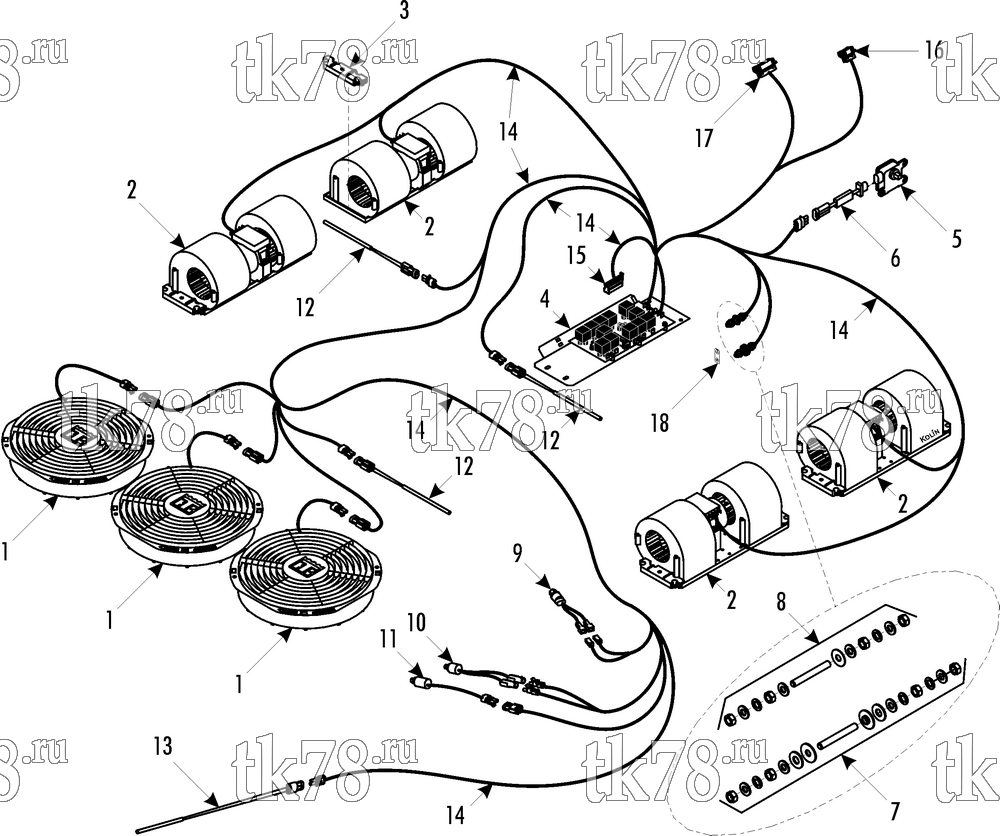

Установкa Thermo King ASR-1400 схема ELECTRICAL COMPONENTS (INTERNAL) – 245C2
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1414 | FAN (see 215H8) | 3 | |
| 2 | 78-1297 | BLOWER | 4 | |
| 3 | 51-259 | HOLDER - blower | 8 | |
| 55-7372 | SCREW - holder | 8 | ||
| 55-6996 | LOCKWASHER | 8 | ||
| 55-7075 | FLATWASHER | 8 | ||
| 51-290 | NUT - captive | 8 | ||
| 4 | NSS | CONTROL PANEL (see 216A6) | 1 | |
| 5 | 41-3255 | SERVOMOTOR (unit w/ heater) | 1 | |
| 6 | 41-7190 | CONTROLLER - servomotor (unit w/ heater) | 1 | |
| 7 | 55-9367 | STUD - positive (M8) | 1 | |
| 305-1653 | NUT | 4 | ||
| 55-8955 | FLATWASHER | 4 | ||
| 55-3238 | LOCKWASHER | 3 | ||
| 55-448 | FLATWASHER | 2 | ||
| 55-8693 | WASHER - nylon | 1 | ||
| 55-8631 | WASHER - nylon | 1 | ||
| 8 | 55-9367 | STUD - negative (M8) | 1 | |
| 305-1653 | NUT | 4 | ||
| 55-8955 | FLATWASHER | 4 | ||
| 55-3238 | LOCKWASHER | 2 | ||
| 55-8568 | LOCKWASHER | 1 | ||
| 9 | 41-4309 | SWITCH - lpco | 1 | |
| 10 | 41-1501 | SWITCH - hpco | 1 | |
| 11 | 41-5220 | SWITCH - cps | 1 | |
| 12 | 41-4157 | SENSOR - temperature | 3 | |
| 13 | 41-4335 | SENSOR - temperature | 1 | |
| 14 | 41-7607 | HARNESS - SR 700 (for connector see 115D14) | 1 | |
| 15 | 41-3856 | CONNECTOR - female (18-pin) | 1 | |
| 16 | 41-4054 | CONNECTOR - male (10-pin) | 1 | |
| 17 | 41-2772 | CONNECTOR - male (18-pin) | 1 | |
| 44-3228 | DIODE - rectifier | 1 | ||
| 18 | 91-7509 | NAMEPLATE + - | 1 |
