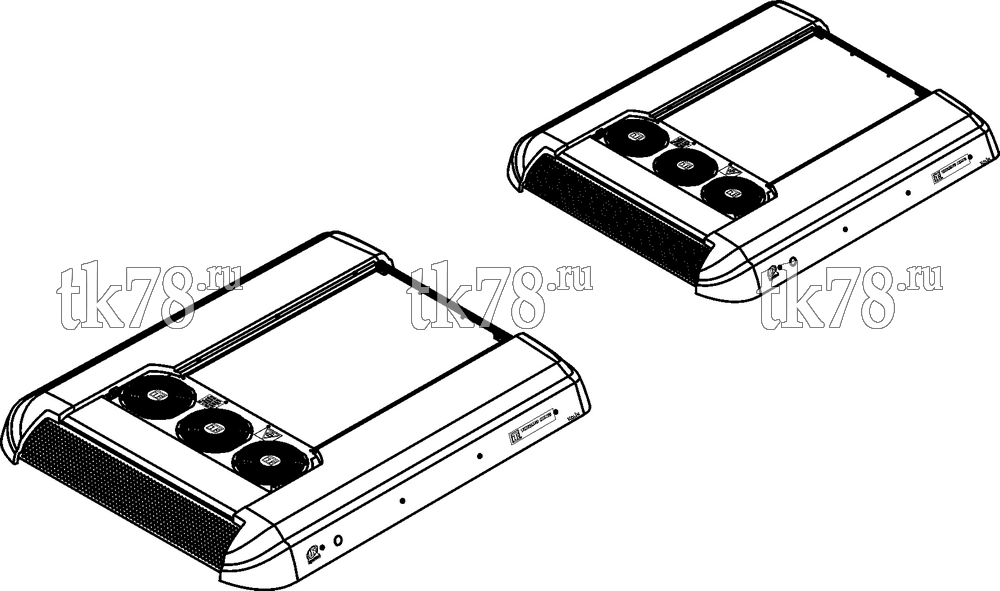

Установкa Thermo King ASR-1400 схема ASR-1400 REFERENCE SHEET – 14U63
Обновление от: 8/24/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 900774 | System - ASR-1400 1000 | 08/10 | ||
| 900775 | System - ASR-1400 1004 | 08/10 | ||
| 008504 | Option - Electrical circuit ASR-1400 for ClimaAIRE II | 08/10 | ||
| 720753 | Kit - ClimaAIRE II DP for ASR with harnesses (M16+4,C3,S4M) Vie | 08/10 | ||
| 720772 | Kit - ClimaAIRE II DP for ASR with harnesses (M9+8,C8,S6M) Frig | 08/10 | ||
| 719302 | Kit - Harness, compressor - ClimaAIRE, 8.3M | 08/10 | ||
| 720028 | Kit - Harness, compressor - ClimaAIRE, 14M | 08/10 | ||
| 720027 | Kit - Harness, compressor - ClimaAIRE , 18M | 08/10 | ||
| 720754 | Kit - Harness compressor S616, 10M | 08/10 | ||
| 720755 | Kit - Harness compressor S616, 18M | 08/10 | ||
| 008505 | Option - Refrigeration circuit standard, ASR-1400 | 08/10 | ||
| 008506 | Option - Covers ASR-1400 - bus roof radius greater then 8M | 08/10 | ||
| 008507 | Option - Covers ASR-1400 - bus roof radius 8M & smaller | 08/10 | ||
| 008508 | Option - Fresh air damper ASR-1400 (2pcs) | 08/10 | ||
| 008509 | Option - No fresh air damper ASR-400 (2pcs) | 08/10 | ||
| 700278 | Kit - Compressor S616 - HPC, R134a, Pulley 2/5V 207mm | 08/10 | ||
| 720587 | Kit - Compressor X430 - HPC, 24V, Pulley 2B/2A, 8.03 | 08/10 | ||
| 720588 | Kit - Compressor X430 - HPC, 24V, 2B/2A, 8.03/8.89 - turn head | 08/10 | ||
| 720590 | Kit - Compressor X430 - HPC, 24V, 12 - K - W 2.28 | 08/10 | ||
| 720855 | Kit - Compressor Bock FKX 40/655, Clutch LA16.172 | 08/10 | ||
| 720856 | Kit - Compressor Bock FKX 40/655, Clutch LA16.156 | 08/10 | ||
| 720857 | Kit - Compressor Bock FKX 40/655, Clutch LA16.168 | 08/10 | ||
| 719362 | Kit - Compressor Bock FKX 40/655 | 08/10 | ||
| 880233 | Kit - Adapters for compressor (#20, #24) | 08/10 | ||
| 880153 | Kit - Adapters for compressor (#20, #24) | 08/10 | ||
| 719305 | Kit - Alternator ClimaAIRE, 24V | 08/10 | ||
| 719306 | Kit - Alternator ClimaAIRE, 12V | 08/10 | ||
| 800308 | Kit - Installation ASR-1400 | 08/10 | ||
| 880254 | Kit - Grille return air ASR-1400 | 08/10 | ||
| 720696 | Kit - Hose ASR | 08/10 | ||
| 720698 | Kit - Muffler for hose ID 28mm | 08/10 | ||
| 720688 | Kit - Valve special for compressor | 08/10 | ||
| 720319 | Kit - Adapters | 08/10 | ||
| 720321 | Kit - Adapters | 08/10 | ||
| 720823 | Kit - Hose #20, #24, ORS | 08/10 | ||
| 720864 | Kit - Hose #20, #24, ORS/flange | 08/10 | ||
| 720865 | Kit - Fittings for hose #16, #20 | 08/10 | ||
| 720866 | Kit - Fittings for hose #16, #20 | 08/10 | ||
| 720216 | Kit - Hose #16, #20, 6M, w/o fittings | 08/10 | ||
| 701367 | Kit - Frame installation ASR-1400, height 77mm | 08/10 | ||
| 701368 | Kit - Frame installation ASR-1400, height 51mm | 08/10 | ||
| 700291 | Kit - Water valve water - 2 way | 08/10 | ||
| 700292 | Kit - Water valve water - 3 way | 08/10 | ||
| 700293 | Kit - Harness water valve, 10M, 2pcs | 08/10 | ||
| 700294 | Kit - Harness water valve, 20M, 2pcs | 08/10 | ||
| 701656 | Kit - Compressor Bock FKX40/655, Clutch LA16.286Y | 08/10 | ||
| 700257 | Kit - T-hose fitting | 08/10 | ||
| 701861 | Kit - Adapter - double unit (tubes 28/35mm) | 08/10 | ||
| 719005 | Kit - Boost pump | 08/10 | ||
| 719006 | Kit - Harness pump, 14M | 08/10 | ||
| 719007 | Kit - Harness pump, 9M | 08/10 | ||
| 719008 | Kit - Harness pump, 7.6M | 08/10 | ||
| 720824 | Kit - Harness extension ClimaAIRE II, 7M | 08/10 | ||
| 720320 | Kit - Adapters - I.D. 19mm/38mm | 08/10 | ||
| 719701 | Kit - Reheat option | 08/10 |
