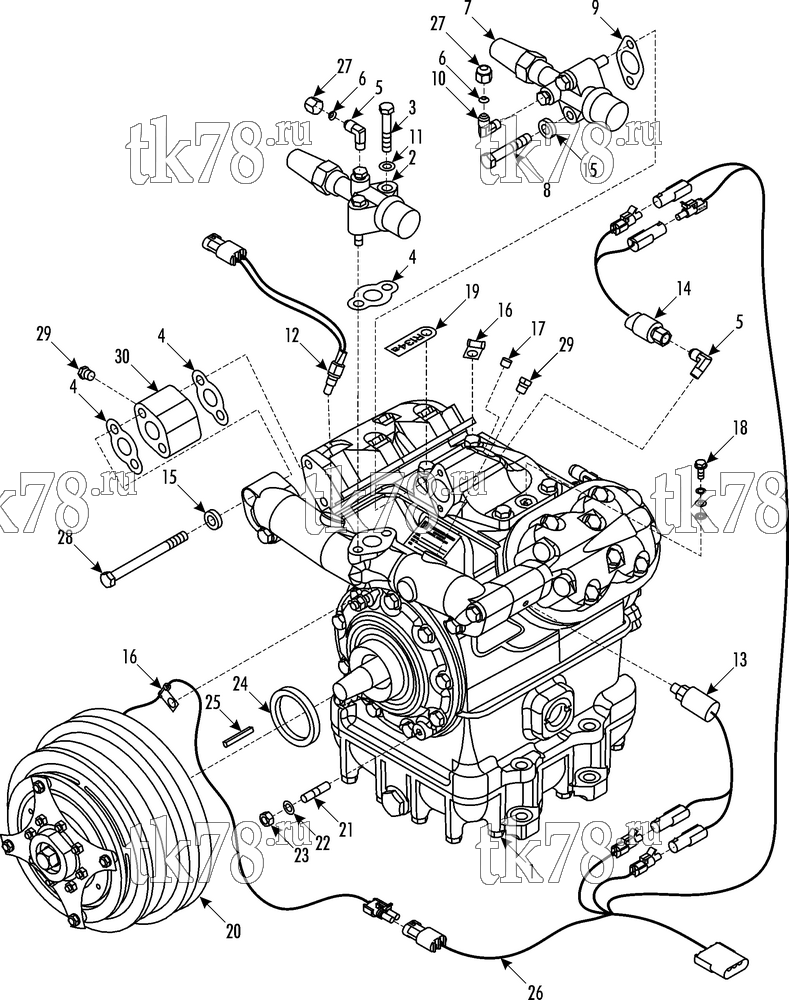

Установкa Thermo King ASR-140 схема COMPRESSOR GROUP (KIT 720588) – 206B6
Обновление от: 9/11/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-917 | COMPRESSOR - X430 (see 228E5) | 1 | |
| 2 | 66-2140 | VALVE - discharge | 1 | |
| 3 | 55-201 | SCREW - valve to compressor | 2 | |
| 4 | 33-2805 | GASKET - discharge valve | 5 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 5 | 55-308 | ELBOW | 2 | |
| 6 | 33-768 | GASKET | 2 | |
| 7 | 66-3576 | VALVE - suction | 1 | |
| 8 | 55-6776 | SCREW - valve to compressor | 2 | |
| 9 | 33-2541 | GASKET - suction valve | 1 | |
| 10 | 55-466 | ELBOW | 1 | |
| 11 | 55-895 | FLATWASHER | 2 | |
| 12 | 41-3345 | SENSOR - temperature (for connector see 115D14) | 1 | |
| 13 | 41-4146 | SWITCH - hpco (for connector see 115D14) | 1 | |
| 14 | 41-4147 | SWITCH - lpco (for connector see 115D14) | 1 | |
| 15 | 55-6804 | WASHER - sealing | 6 | |
| 16 | 55-5261 | CLAMP | 2 | |
| 17 | 55-433 | PLUG | 1 | |
| 18 | 57-2308 | SCREW | 1 | |
| 56-2964 | LOCKWASHER | 1 | ||
| 55-2201 | FLATWASHER | 1 | ||
| 55-2996 | WASHER - special | 1 | ||
| 19 | 92-4114 | NAMEPLATE - R134a | 1 | |
| 20 | NSS | CLUTCH (see 203E3) | 1 | |
| 21 | 55-3451 | STUD - clutch to compressor | 3 | |
| 22 | 56-790 | LOCKWASHER | 3 | |
| 23 | 55-789 | NUT | 3 | |
| 24 | 77-1491 | SPACER | 1 | |
| 25 | 55-9088 | KEY - shaft | 1 | |
| 26 | 41-6795 | HARNESS - compressor (for connectors see 115D14) | 1 | |
| 27 | 56-1983 | CAP | 2 | |
| 28 | 55-2888 | SCREW | 4 | |
| 29 | 55-3364 | PLUG - pipe | 2 | |
| 30 | 108-1718 | ADAPTER | 2 |
