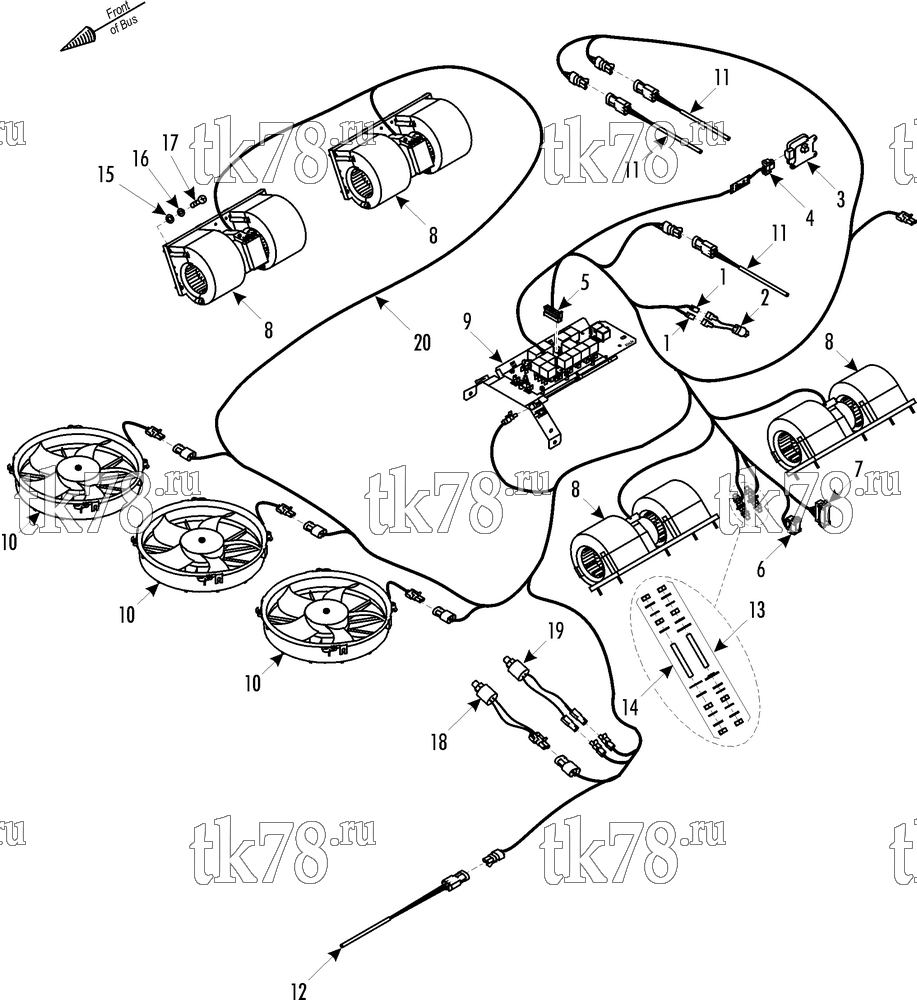

Установкa Thermo King ASR-140 схема ELECTRICAL COMPONENTS (INTERNAL) – 206A7
Обновление от: 7/1/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-6381 | CONNECTOR (1-pin, female) | 2 | |
| 2 | 41-4309 | SWITCH - lpco | 1 | |
| 3 | 41-4315 | SERVOMOTOR (12V) | 1 | |
| 55-7696 | SCREW - servomotor | 3 | ||
| 55-7697 | FLATWASHER | 3 | ||
| 4 | 41-2768 | CONNECTOR (6-pin, female) | 1 | |
| 5 | 41-3856 | TERMINAL - connector (18-pin, female) | 1 | |
| 6 | 41-4054 | CONNECTOR (10-pin, male) | 1 | |
| 7 | 41-2772 | CONNECTOR (18-pin, male) | 1 | |
| 8 | 78-1297 | BLOWER - evaporator (24V) | 4 | |
| 9 | NSS | PANEL - control (24V, see 184F8) | 1 | |
| 55-7170 | LOCKWASHER | 4 | ||
| 55-6994 | SCREW | 4 | ||
| 10 | 78-1344 | FAN - condenser (24V) | 3 | |
| 11 | 41-4157 | SENSOR - temperature | 3 | |
| 12 | 41-4335 | SENSOR - temperature | 1 | |
| 13 | 55-9367 | STUD - positive | 1 | |
| 55-8631 | WASHER - shoulder (nylon) | 1 | ||
| 55-8693 | FLATWASHER (nylon) | 1 | ||
| 55-3238 | LOCKWASHER (internal tooth) | 3 | ||
| 305-1653 | NUT | 4 | ||
| 55-8955 | WASHER - bright | 4 | ||
| 55-448 | FLATWASHER | 2 | ||
| 14 | 55-9367 | STUD - negative | 1 | |
| 305-1653 | NUT | 4 | ||
| 55-8568 | WASHER - bright | 1 | ||
| 55-3238 | LOCKWASHER (internal tooth) | 2 | ||
| 55-8955 | WASHER - bright | 4 | ||
| 15 | 55-7697 | FLATWASHER | 20 | |
| 16 | 55-7031 | LOCKWASHER | 20 | |
| 17 | 55-7696 | SCREW - blower | 20 | |
| 18 | 41-5220 | SWITCH - hpco | 1 | |
| 41-3831 | SWITCH - only | 1 | ||
| 19 | 41-1501 | SWITCH - hpco | 1 | |
| 41-1502 | SWITCH - only | 1 | ||
| 20 | 41-5388 | HARNESS - unit (24V, for connectors see 115D14) | 1 | |
| 41-6773 | HARNESS - unit (24V, for connectors see 115D14) | 1 | ||
| 41-8662 | HARNESS - unit (24V, for connectors see 115D14, 700644) | 1 |
