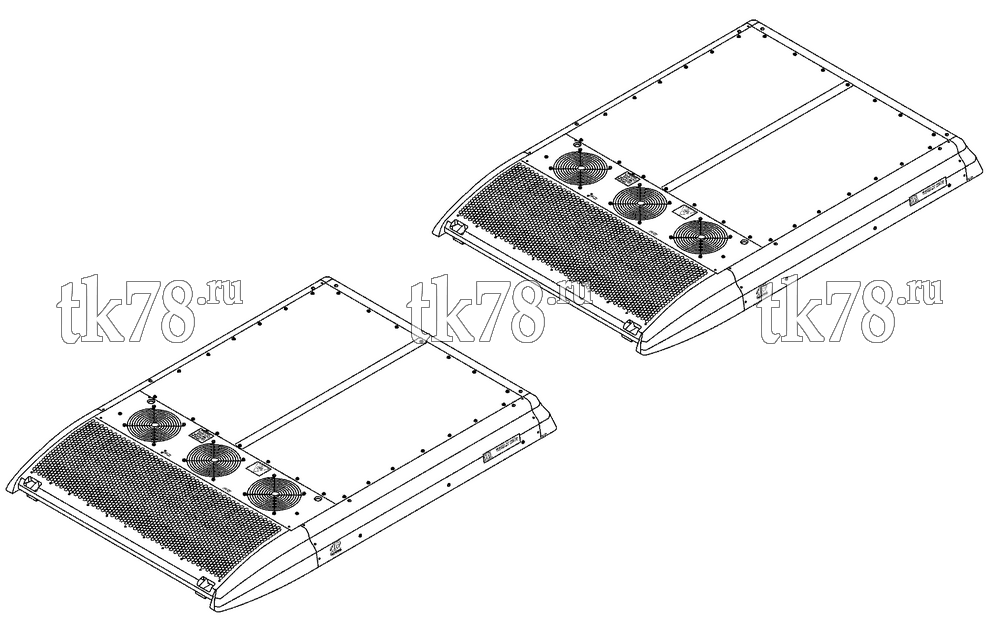

Установкa Thermo King ASR-140 схема ASR-140 REFERENCE SHEET – 10U42
Обновление от: 5/25/05
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 920293 | ASR-140-1000 | 5/05 | ||
| 920294 | ASR-140-1004 | 5/05 | ||
| 006131 | SR-70 Cond/Evap 1000 | 5/05 | ||
| 006132 | SR-70 Cond/Evap/Heat 1004 | 5/05 | ||
| 720748 | Electrical Circuiting ASR-140 for CAII | 5/05 | ||
| 720753 | ClimaAIRE II DP for ASR with Harnesses (M16+4, C3, S4m) Vie | 5/05 | ||
| 720772 | ClimaAIRE II DP for ASR with Harnesses (M9+8, C8, S6m) Frig | 5/05 | ||
| 719302 | Harness - ClimaAIRE (Unit to Compressor - 8.3 m length) | 5/05 | ||
| 720028 | Harness - ClimaAIRE (Unit to Compressor - 14 m length) | 5/05 | ||
| 720027 | Harness - ClimaAIRE (Unit to Compressor - 18 m length) | 5/05 | ||
| 720754 | Harness (A/C Unit - S616 Comp - 10 m length) | 5/05 | ||
| 720755 | Harness (A/C Unit - S616 Comp - 18 m length) | 5/05 | ||
| 006718 | Fresh Air Damper for ASR-140 (2 pc) | 5/05 | ||
| 006719 | NO Fresh Air Damper for ASR-140 (2 pcs) | 5/05 | ||
| 007017 | Refrigerant Circuiting Standard ASR-140 | 5/05 | ||
| 700278 | Compressor Kit - S616-HPC, R134a, 24V, 2/5V Pulley, 207 mm | 5/05 | ||
| 720587 | Compressor X430-HPC, R134a, 24V, 2B/2A Pulley, 8.03 in/8.89 in | 5/05 | ||
| 720588 | Compressor X430-HPC, R134a, 24V, 2B/2A Pulley, 8.03 in/8.89 in - Turn Head, Add Spacer Disch Tubes | 5/05 | ||
| 720590 | Compressor X430-HPC, R134a, 24V, 12K Pulley - Width 2.28 in; Dia 7.75 in | 5/05 | ||
| 720855 | Compressor FKX 40/655, Clutch LA16.172 | 5/05 | ||
| 720856 | Compressor FKX 40/655, Clutch LA16.156 | 5/05 | ||
| 720857 | Compressor FKX 40/655, Clutch LA16.168 | 5/05 | ||
| 719362 | Compressor FKX 40/655, 2B Pulley, Dia 173 mm without Service Valves - Use with Kit 719363 or 720688 | 5/05 | ||
| 880233 | Adapters Kit for X430 Compressor (#20, #24) | 5/05 | ||
| 880153 | Adapters Kit for S616 Compressor (#20, #24) | 5/05 | ||
| 719305 | Alternator Kit - 150A, 24VDC, 24V Excitation, 3.25 in for ClimaAIRE | 5/05 | ||
| 719306 | Alternator Kit - 125A, 24VDC, 12V Excitation, 3.25 in for ClimaAIRE | 5/05 | ||
| 880256 | Installation Kit - ASR-140/160 | 5/05 | ||
| 880254 | Return Air Grille - ASR-140 (2 pcs) | 5/05 | ||
| 700291 | Water Valve Kit - 2-way Servomotor (2 pcs) | 5/05 | ||
| 700292 | Water Valve Kit - 3-way Servomotor (2 pcs) | 5/05 | ||
| 700293 | Harness Kit - Servomotor Water Valve 10 m (2 pcs) | 5/05 | ||
| 700294 | Harness Kit - Servomotor Water Valve 20 m (2 pcs) | 5/05 | ||
| 719005 | Water Boost Pump Kit - 27VDC; Hose Connections - 38 mm id; 5000L/Hr | 5/05 | ||
| 719006 | Harness (Unit to Water Boost Pump - 14 m length) | 5/05 | ||
| 719007 | Harness (Unit to Water Boost Pump - 9 m length) Recommended | 5/05 | ||
| 719008 | Harness (Unit to Water Boost Pump - 7.6 m length) | 5/05 | ||
| 720824 | ClimaAIRE II Extension Harness - 7 m | 5/05 | ||
| 720320 | Adapters Kit - 19 mm / 38 mm id | 5/05 | ||
| 719701 | Kit - Reheat Option (Software for ClimaAIRE - Factory Settings) | 5/05 | ||
| 880176 | Kit for Valve Electro for Floor Heat with ClimaAIRE II (without Water Valve) | 5/05 | ||
| 720696 | Fitting & Hose Kit for ASR-140 | 5/05 | ||
| 720752 | Kit - Refrigerant Fittings & Hose for ARS-140, 160 (GF) | 5/05 | ||
| 720698 | Muffler Kit with Hose id 35 mm (#20) | 5/05 | ||
| 720688 | Kit - Valve SPECIAL for FKX 40/655 Comp (FRGL Application) with Harness, Screws (For #20, #24 Hose) | 5/05 | ||
| 720319 | Kit - Solder Adapters ASR Unit | 5/05 | ||
| 720321 | Kit - Solder Adapters #16, #20 | 5/05 | ||
| 720823 | Kit - Hoses NC & Fittings - 1 m length (#20 Fittings 45 deg/0 deg; #24 Fittings 45 deg/0 deg) | 5/05 | ||
| 720864 | Kit - Hoses NC & Fittings - 1 m length (#20; #24; Flange - ORS) | 5/05 | ||
| 720865 | Kit - Fittings (#16 45 deg/0 deg; #20 45 deg/0 deg) | 5/05 | ||
| 720866 | Kit - Fittings (#16 straight; #20 straight) | 5/05 | ||
| 720216 | Refrigerant Hose Kit (#16, #20, 6 m without Fittings) | 5/05 |
