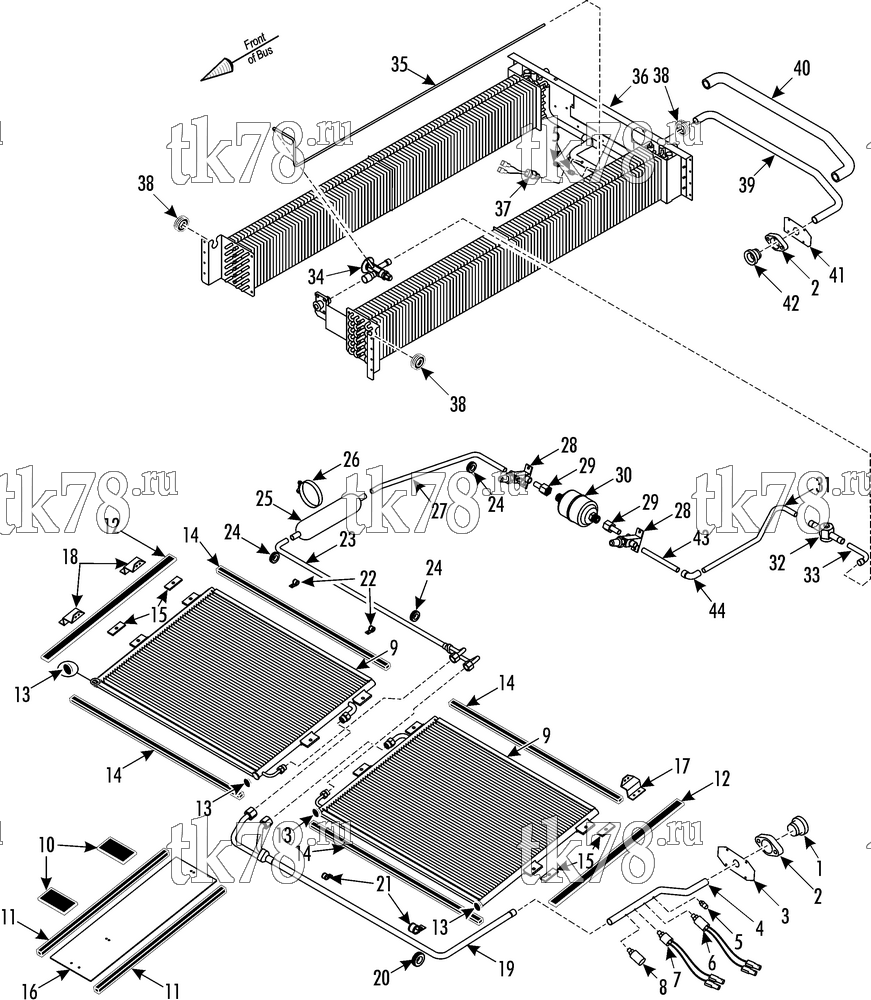

Установкa Thermo King ASR-140 II PLUS IIB/AUS схема REFRIGERATION COMPONENTS AUS – 241B3
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 51-577 | ADAPTER - tube | 1 | |
| 2 | 91-9143 | FLANGE | 2 | |
| 55-7213 | FITTING | 1 | ||
| 11-7777 | VALVE | 1 | ||
| 55-5672 | CAP | 1 | ||
| 33-3746 | GASKET | 1 | ||
| 3 | 92-2934 | HOLDER - fitting | 1 | |
| 55-5130 | RIVET | A/R | ||
| 4 | 61-5055 | TUBE - adapter to condenser | 1 | |
| 66-2805 | FITTING - saddle | 1 | ||
| 66-6996 | FITTING - saddle | 2 | ||
| 5 | 66-9842 | VALVE - pressure | 1 | |
| 6 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 7 | 41-1501 | SWITCH - hpco | 1 | |
| 41-1502 | SWITCH - only | 1 | ||
| 8 | 41-5764 | SWITCH - hpco | 1 | |
| 41-307 | SWITCH - only | 1 | ||
| 9 | 67-2402 | COIL - condenser | 2 | |
| 55-7372 | SCREW - coil | 8 | ||
| 55-8893 | FLATWASHER | 8 | ||
| 55-7373 | NUT | 8 | ||
| 10 | 33-4597 | INSULATION | 2 | |
| 11 | 33-4598 | INSULATION | 2 | |
| 12 | 33-4599 | INSULATION | 2 | |
| 13 | 33-4600 | INSULATION | 4 | |
| 14 | 33-4601 | INSULATION | 4 | |
| 15 | 33-4602 | UNDERLAYER | 8 | |
| 16 | 33-4603 | COVER | 1 | |
| 55-5130 | RIVET - cover | 6 | ||
| 17 | 92-8238 | BRACKET | 2 | |
| 18 | 33-4604 | BRACKET | 2 | |
| 55-5130 | RIVET - bracket | 4 | ||
| 19 | 61-5053 | TUBE - hot gas | 1 | |
| 33-566 | O-RING | 2 | ||
| 20 | 33-324 | GROMMET (.687 id) | 1 | |
| 21 | 55-549 | CLAMP (.500 id) | 2 | |
| 22 | 55-3026 | CLAMP (.625 id) | 2 | |
| 55-7664 | SCREW - clamp | 4 | ||
| 55-7697 | FLATWASHER | 4 | ||
| 55-7369 | LOCKWASHER | 4 | ||
| 23 | 61-5051 | TUBE - liquid | 1 | |
| 24 | 33-432 | GROMMET | 3 | |
| 25 | 61-5050 | TANK - receiver | 1 | |
| 26 | 55-7800 | CLAMP - tank | 1 | |
| 27 | 61-5056 | TUBE - receiver to valve | 1 | |
| 28 | 66-4694 | VALVE - shutoff | 2 | |
| 55-6994 | SCREW - valve | 4 | ||
| 55-6996 | LOCKWASHER | 5 | ||
| 55-6995 | FLATWASHER | 4 | ||
| 29 | 61-2246 | TUBE ASSY | 2 | |
| 30 | 66-8344 | DEHYDRATOR | 1 | |
| 31 | 61-2177 | TUBE - valve to indicator | 1 | |
| 32 | 66-1188 | INDICATOR - liquid | 1 | |
| 33 | 61-2176 | TUBE - indicator to expansion valve | 1 | |
| 34 | 66-8121 | VALVE - expansion | 1 | |
| 35 | 61-2178 | TUBE - equalizer | 1 | |
| 36 | 67-1937 | COIL - evaporator | 1 | |
| 37 | 41-4309 | SWITCH - lpco | 1 | |
| 38 | 33-324 | GROMMET (.687 id) | 3 | |
| 39 | 61-2180 | TUBE - suction | 1 | |
| 40 | 91-3542 | INSULATION - tube | 1 | |
| 41 | 92-2935 | HOLDER - fitting | 1 | |
| 55-5130 | RIVET - holder | 12 | ||
| 42 | 51-578 | ADAPTER | 1 | |
| 43 | 61-2175 | TUBE - valve to tee | 1 | |
| 44 | 55-1464 | ELBOW | 1 |
