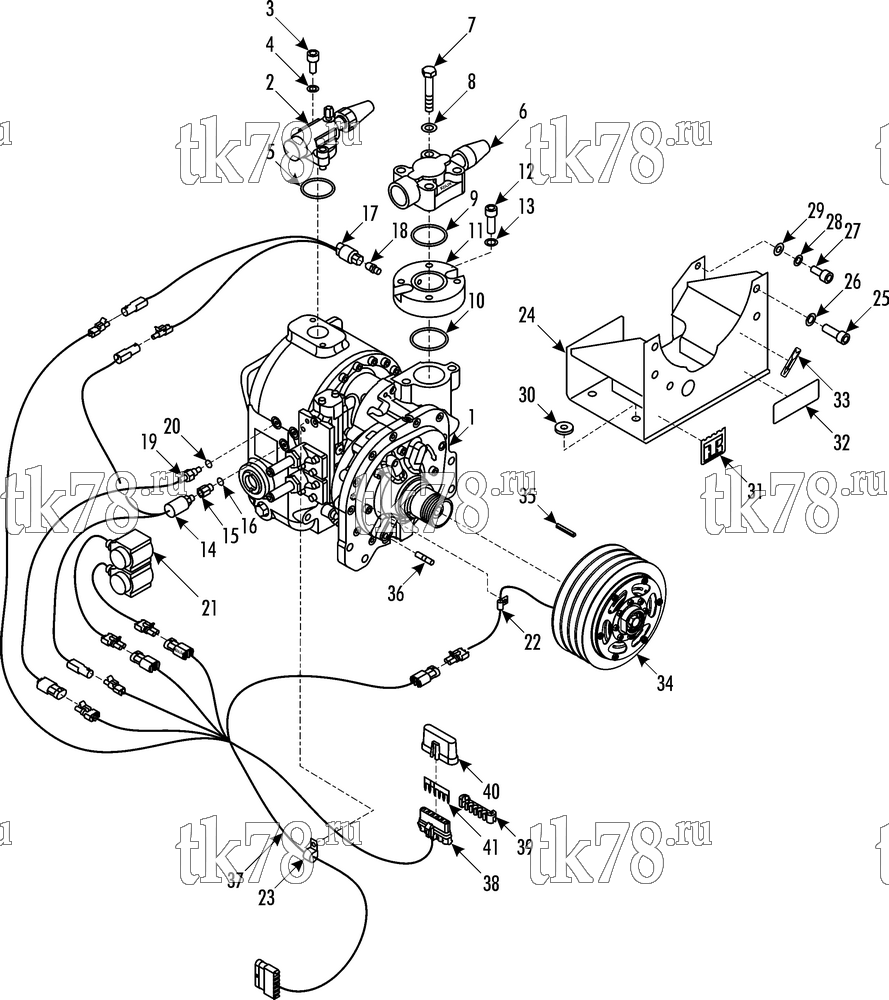

Установкa Thermo King ASR-140 II PLUS IIB/AUS схема COMPRESSOR GROUP (1E55520G01, KIT 701765) – 238H7
Обновление от: 4/24/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-970 | COMPRESSOR - QS391B (see 240H1) | 1 | |
| 2 | 66-5492 | VALVE - discharge | 1 | |
| 3 | 55-9727 | SCREW - valve to compressor | 2 | |
| 4 | 55-4625 | FLATWASHER | 2 | |
| 5 | 33-230 | O-RING (1.875 id) | 1 | |
|
10-33-230 | О-ринг сервисного клапана, X418/426/430/640 | 380 ₽ |
|
| PP-33-230 | О-ринг сервисного клапана, X418/426/430/640 | 220 ₽ |
|
|
| 6 | 61-1977 | VALVE - suction | 1 | |
| 7 | 55-7414 | SCREW - valve to compressor | 4 | |
| 8 | 55-5914 | FLATWASHER | 4 | |
| 9 | 33-3708 | O-RING (2.0 id) | 1 | |
| 10 | 33-3707 | O-RING (2.125 id) | 1 | |
| 11 | 22-1171 | SPACER - suction valve | 1 | |
| 12 | 55-9726 | SCREW - spacer | 2 | |
| 13 | 55-7024 | FLATWASHER | 2 | |
| 14 | 41-4146 | SWITCH - hpco | 1 | |
| 41-4531 | SWITCH - only | 1 | ||
| 15 | 55-9730 | ADAPTER - switch | 1 | |
| 16 | 33-3381 | O-RING (3/8 id) | 1 | |
| 17 | 41-4147 | SWITCH - lpco | 1 | |
| 41-4530 | SWITCH - only | 1 | ||
| 18 | 55-7213 | ADAPTER - switch | 1 | |
| 19 | 41-3827 | SENSOR - thermistor (for connectors see 115D14) | 1 | |
| 20 | 33-3381 | O-RING (3/8 id) | 1 | |
| 21 | 41-5213 | COIL - valve solenoid (24V, for connectors see 115D14) | 2 | |
| 22 | 55-9811 | CLAMP (1/4) | 1 | |
| 55-736 | SCREW - clamp to compressor | 1 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 23 | 55-9702 | CLAMP (5/8) | 1 | |
| 55-7172 | SCREW - clamp to compressor | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 24 | 92-1309 | BRACKET - mounting | 1 | |
| 25 | 55-9726 | SCREW - bracket | 4 | |
| 26 | 55-6283 | LOCKWASHER | 4 | |
| 27 | 55-9727 | SCREW - bracket | 3 | |
| 28 | 55-1173 | LOCKWASHER | 3 | |
| 29 | 55-7072 | FLATWASHER | 3 | |
| 30 | 55-4931 | FLATWASHER | 4 | |
| 31 | 91-3247 | NAMEPLATE - TK logo | 1 | |
| 32 | 91-5459 | NAMEPLATE - R134a | 1 | |
| 33 | 99-9084 | NAMEPLATE - arrow | 1 | |
| 34 | 107-379 | CLUTCH (assembly, see 238H8) | 1 | |
| 35 | 55-9024 | KEY - shaft | 1 | |
|
10-55-9024 | Шпонка коленвала, X418/426/430 | 590 ₽ |
|
| 36 | 55-3451 | STUD - clutch to compressor | 3 | |
| 55-790 | LOCKWASHER | 3 | ||
| 55-312 | NUT | 3 | ||
| 37 | 41-5209 | HARNESS - compressor (for connectors see 115D14) | 1 | |
| 44-8294 | CONNECTOR - shroud (6-pin) | 1 | ||
| 44-5835 | CONNECTOR - shroud (2-pin) | 3 | ||
| 44-5838 | CONNECTOR - tower (2-pin) | 1 | ||
| 44-7327 | CONNECTOR - tower (1-pin) | 2 | ||
| 38 | 41-1789 | CONNECTOR - tower (6-pin) | 1 | |
| 39 | 41-1790 | LOCK - secondary (6-pin connector) | 1 | |
| 40 | 41-1787 | COVER - connector | 1 | |
| 41 | 41-4280 | BUSBAR (6-pin, w/ diode) | 1 |
