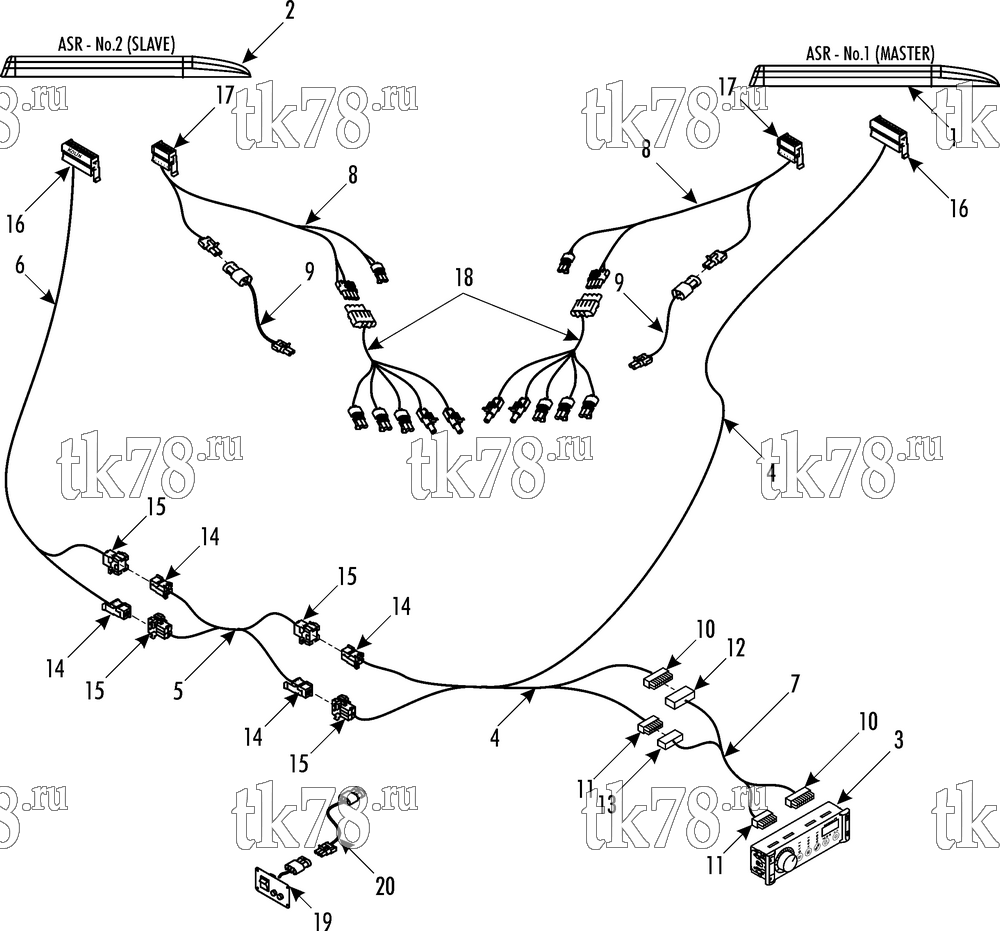

Установкa Thermo King ASR-140 II PLUS IIB/AUS схема ELECTRICAL COMPONENTS (EXTERNAL) – 232B0
Обновление от: 1/11/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | UNIT - master | 1 | |
| 2 | NSS | UNIT - slave | 1 | |
| 3 | 41-4658 | ClimaAIRE II - assembly (see 184F9) | 1 | |
| 4 | 41-6849 | HARNESS - driver panel (9 M & 8 M) | 1 | |
| 41-6850 | HARNESS - driver panel (16 M & 4 M) | 1 | ||
| 41-9308 | HARNESS - driver panel (8 M) | 1 | ||
| 41-9309 | HARNESS - driver panel (2 M & 7 M) | 1 | ||
| 5 | 41-6851 | HARNESS - extension (8 M) | 1 | |
| 41-6852 | HARNESS - extension (3 M) | 1 | ||
| 6 | 41-6853 | HARNESS - slave unit (6 M) | 1 | |
| 41-6854 | HARNESS - slave unit (4 M) | 1 | ||
| 7 | 41-6855 | HARNESS - extension (7 M) | 1 | |
| 8 | 41-4513 | HARNESS - compressor (X430 & FKX 40/655, 8.3 M) | 1 | |
| 41-5315 | HARNESS - compressor (X430 & FKX 40/655) | 1 | ||
| 41-8666 | HARNESS - compressor (QS616B, 12 M) | 1 | ||
| 41-8665 | HARNESS - compressor (QS616B, 13 M) | 1 | ||
| 41-9167 | HARNESS - compressor (QS616B, 14 M) | 1 | ||
| 41-9307 | HARNESS - compressor (QS616B, 14M) | 1 | ||
| 41-8488 | HARNESS - compressor (QS616B, 18 M) | 1 | ||
| 9 | 41-4143 | HARNESS - boost pump (14 M) | 1 | |
| 41-4144 | HARNESS - boost pump (9 M) | 1 | ||
| 41-6152 | HARNESS - boost pump (7.6 M) | 1 | ||
| 10 | 41-650 | CONNECTOR (18-pin) | 2 | |
| 11 | 41-661 | CONNECTOR (14-pin) | 2 | |
| 12 | 41-6858 | PLUG (18 terminal) | 1 | |
| 13 | 41-6160 | PLUG (14 terminal) | 1 | |
| 14 | 44-9903 | PLUG (8 terminal) | 4 | |
| 15 | 44-9900 | RECEPTACLE (8-pin) | 4 | |
| 16 | 41-3856 | CONNECTOR (18-pin) | 2 | |
| 17 | 41-3855 | CONNECTOR (10-pin) | 1 | |
| 18 | 41-6878 | HARNESS - compressor (QS616B, CA II,) | 1 | |
| 19 | 41-7262 | PANEL - driver (on/off) | 1 | |
| 20 | 41-7263 | HARNESS - extension (16 M) | 1 |
