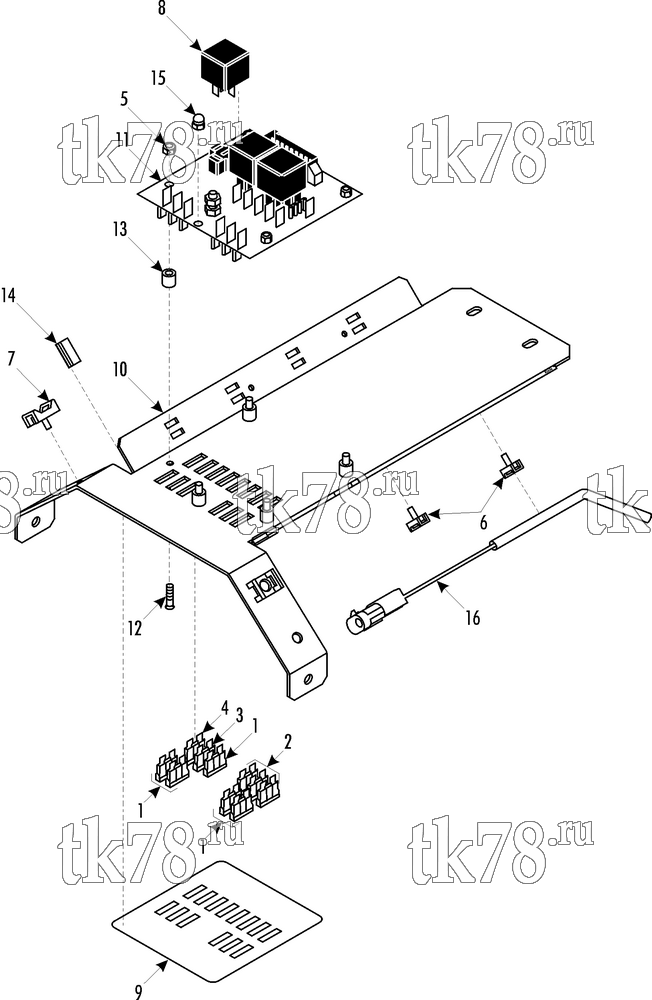

Установкa Thermo King ASR-140 II PLUS IIB/AUS схема CONTROL PANEL (007023) – 203E9
Обновление от: 2/23/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-9344 | FUSE (15 amp) | 5 | |
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 2 | 44-9758 | FUSE (10 amp) | 3 | |
|
10-44-9758 | Предохранитель 10 ампер 10 шт | 1 860 ₽ |
|
| 3 | 41-1292 | FUSE (5 amp) | 1 | |
|
10-41-1292 | Предохранитель 5 ампер 10 шт | 1 860 ₽ |
|
| 4 | 41-1932 | FUSE (1 amp) | 1 | |
| 5 | 55-7034 | NUT | 4 | |
| 6 | 99-3427 | MOUNT - cable tie | 2 | |
| 7 | 99-3281 | MOUNT - cable tie | 2 | |
| 55-5130 | RIVET - mount | 4 | ||
| 8 | 41-896 | RELAY (1pdt) | 3 | |
| 9 | 92-5002 | NAMEPLATE | 1 | |
| 10 | 92-5003 | PANEL - control | 1 | |
| 11 | 41-6794 | BOARD - pc | 1 | |
| 12 | 55-9623 | STUD - board | 5 | |
| 13 | 55-9624 | SPACER - board | 5 | |
| 14 | 92-3279 | STRIP - panel | A/R | |
| 15 | 51-310 | NUT (M5, plastic) | 1 | |
| 16 | 41-4157 | SENSOR - temperature | 1 |
