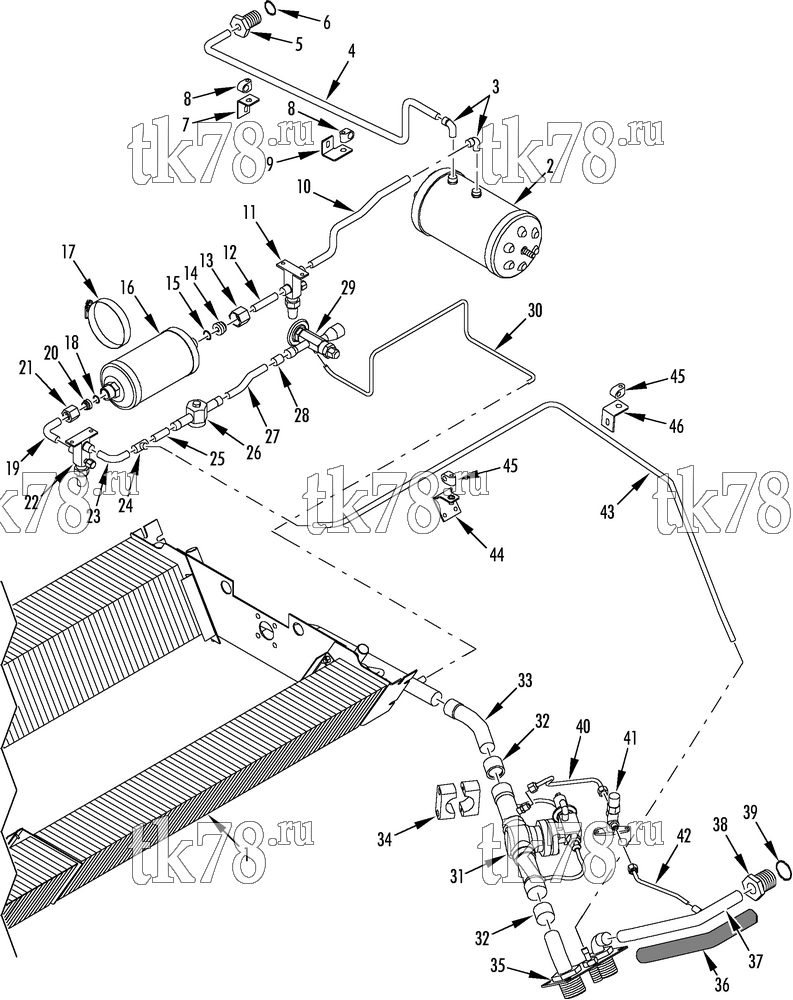

Установкa Thermo King ART-III M4 схема EVAPORATOR REFRIGERATION (SLAVE 099834) – 180C5
Обновление от: 4/19/05
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1903 | COIL - evaporator | 1 | |
| 55-3018 | SCREW - coil (5/8 lg) | 6 | ||
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 33-2466 | INSULATION - coil | 4 | ||
| 2 | 67-1062 | TANK - receiver | 1 | |
| 55-4955 | NUT - tank | 2 | ||
| 55-4931 | WASHER - special | 2 | ||
| 3 | 55-1464 | ELBOW - receiver tank | 2 | |
| 4 | 78-1338 | TUBE - adapter to receiver tank | 1 | |
| 5 | 55-7064 | ADAPTER | 1 | |
| 55-6811 | NUT - bulkhead (#10) | 1 | ||
| 55-6843 | LOCKWASHER | 1 | ||
| 6 | 33-1223 | O-RING - adapter (9/16 id) | 1 | |
| 7 | 92-2711 | BRACKET | 1 | |
| 55-8711 | INSERT (1/4-20) | 1 | ||
| 55-2957 | SCREW - bracket (1/4-20) | 1 | ||
| 8 | 55-6389 | CLAMP - tube | 2 | |
| 55-3121 | SCREW | 2 | ||
| 55-1800 | FLATWASHER | 2 | ||
| 55-2086 | LOCKWASHER | 2 | ||
| 9 | 92-2712 | BRACKET | 1 | |
| 55-8711 | INSERT (1/4-20) | 1 | ||
| 55-2957 | SCREW - bracket (1/4-20) | 1 | ||
| 10 | 61-1931 | TUBE - receiver to valve | 1 | |
| 11 | 66-4694 | VALVE - hand | 1 | |
| 66-2170 | CAP - valve | 1 | ||
| 55-2991 | SCREW - valve | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 12 | 61-1932 | TUBE - valve to shoulder | 1 | |
| 13 | 55-6839 | SHOULDER | 1 | |
| 14 | 55-6396 | NUT - shoulder | 1 | |
| 15 | 33-2115 | O-RING | 1 | |
| 16 | 61-600 | DEHYDRATOR | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 8 100 ₽ |
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 490 ₽ |
|
| 17 | 55-2688 | CLAMP - dehydrator | 1 | |
| 18 | 33-566 | O-RING | 1 | |
| 19 | 61-1933 | TUBE - dehydrator to shutoff valve | 1 | |
| 20 | 55-6837 | SHOULDER | 1 | |
| 21 | 55-6838 | NUT - shoulder | 1 | |
| 22 | 66-4694 | VALVE - shutoff | 1 | |
| 66-2170 | CAP - valve | 1 | ||
| 23 | 61-1934 | TUBE - valve to tee | 1 | |
| 24 | 55-2181 | TEE | 1 | |
| 25 | 66-8585 | TUBE - tee to liquid indicator | 1 | |
| 26 | 66-1188 | INDICATOR - liquid | 1 | |
| 27 | 61-1935 | TUBE - indicator to expansion valve | 1 | |
| 28 | 55-2182 | BUSHING | 7 | |
| 29 | 61-701 | VALVE - expansion | 1 | |
| 66-4213 | ELEMENT - power | 1 | ||
| 30 | 61-1936 | TUBE - equalizer | 1 | |
| 31 | 66-5136 | VALVE - epr (see 129C13) | 1 | |
| 32 | 55-3309 | BUSHING | 2 | |
| 33 | 61-1937 | ELBOW - epr valve suction | 1 | |
| 34 | 91-4774 | CLAMP | 1 | |
| 92-2707 | CLAMP - plate | 1 | ||
| 55-6851 | SCREW | 2 | ||
| 55-2904 | WASHER | 2 | ||
| 55-4953 | NUT | 2 | ||
| 35 | 61-1938 | PLATE & TUBE | 1 | |
| 203-391 | SEALER - tape (permagum) | A/R | ||
| 55-1587 | SCREW - plate | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 36 | 91-3542 | TUBE - sponge rubber (6 ft) | A/R | |
| 37 | 61-1939 | TUBE - discharge | 1 | |
| 38 | 66-6840 | ADAPTER - bulkhead | 1 | |
| 55-5740 | NUT - bulkhead (#16) | 1 | ||
| 55-5741 | LOCKWASHER | 1 | ||
| 39 | 33-3166 | O-RING - adapter (1-7/16 id) | 1 | |
| 40 | 61-1942 | TUBE - epr to shutoff valve | 1 | |
| 55-303 | NUT | 2 | ||
| 41 | 66-992 | VALVE - shutoff | 1 | |
| 55-2991 | SCREW - valve | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 42 | 61-1943 | TUBE - shutoff valve to discharge tube | 1 | |
| 55-303 | NUT | 1 | ||
| 43 | 61-1941 | TUBE - liquid | 1 | |
| 44 | 92-2709 | BRACKET | 1 | |
| 55-8711 | INSERT (1/4-20) | 1 | ||
| 57-5812 | SCREW - bracket (#10) | 2 | ||
| 45 | 55-6388 | CLAMP - tube | 2 | |
| 55-3121 | SCREW | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 46 | 92-2710 | BRACKET | 1 | |
| 55-8711 | INSERT (1/4-20) | 1 | ||
| 55-3462 | SCREW - bracket (1/4-20) | 1 | ||
|
20-55-3462 | Болт | 600 ₽ |
|
