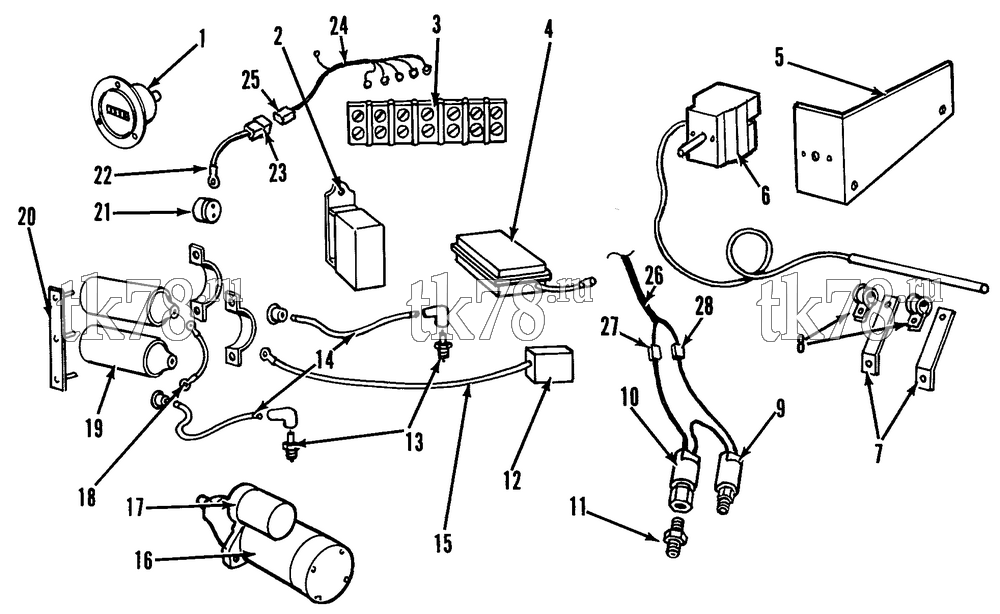

Установкa Thermo King AM2 схема ELECTRICAL COMPONENTS – 53A4
Обновление от: 6/30/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-5585 | HOURMETER | 1 | |
| 2 | 44-144 | CHOKE - assembly | 1 | |
| 11-4000 | ARM - choke | 1 | ||
| 11-1803 | ROD - choke | 1 | ||
| 3 | 44-4449 | BOARD - terminal | 1 | |
| 99-6468 | NAMEPLATE | 1 | ||
| 4 | 11-1229 | BOX - idle control | 1 | |
| 44-512 | ACTUATOR | 1 | ||
| 11-1449 | COVER - box | 1 | ||
| 5 | 99-6469 | BRACKET - thermostat | 1 | |
| 6 | 44-6119 | THERMOSTAT | 1 | |
| 99-4221 | KNOB - thermostat control | 1 | ||
| 99-1470 | NAMEPLATE - temp control | 1 | ||
| 55-2349 | SCREW | 2 | ||
| 7 | 99-3191 | BRACKET - thermo bulb | 2 | |
| 55-214 | SCREW - bracket | 2 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 55-411 | FLATWASHER | 4 | ||
| 55-2752 | NUT | 2 | ||
| 8 | 55-547 | CLAMP - bulb | 2 | |
| 55-103 | SCREW | 2 | ||
| 55-415 | WASHER | 2 | ||
| 9 | 44-5305 | SWITCH - compressor hpco | 1 | |
|
10-44-5305 | Выключатель высокого давления (R12) | 3 950 ₽ |
|
| 10 | 44-5857 | SWITCH - compressor lpco | 1 | |
| 11 | 55-459 | COUPLING - lpco | 1 | |
| 12 | 44-4832 | BOX - breaker | 1 | |
| 13 | 44-662 | PLUG - spark | 2 | |
| 14 | 44-4079 | CABLE - spark plug | 2 | |
| 15 | 44-672 | LEAD - coil to breaker box | 2 | |
| 16 | 45-800 | STARTER | 1 | |
| 17 | 44-5422 | SWITCH - starter | 1 | |
| 18 | 44-4544 | LEAD - coil to coil | 1 | |
| 19 | 44-256 | COIL - ignition | 2 | |
| 20 | 99-4091 | BOLTSTRIP - coils | 1 | |
| 55-3628 | RIVET - strip | 2 | ||
| 55-291 | NUT - coil | 3 | ||
| 55-411 | WASHER - coil | 3 | ||
| 55-366 | LOCKWASHER | 3 | ||
| 21 | 44-5858 | SWITCH - engine low oil pressure | 1 | |
| 22 | 44-5859 | HARNESS - engine low oil switch | 1 | |
| 23 | 44-5827 | CONNECTOR - harness | 1 | |
| 24 | 44-5863 | HARNESS - main | 1 | |
| 25 | 44-5814 | CONNECTOR - low oil switch (4-pin, female) | 1 | |
| 26 | 44-5860 | HARNESS - compressor (hpco/lpco) | 1 | |
| 27 | 44-5620 | CONNECTOR - lpco | 1 | |
| 28 | 44-5219 | CONNECTOR - hpco | 1 | |
| 44-5861 | SWITCH - on/off | 1 | ||
| 44-5862 | SWITCH - start | 1 | ||
| 99-6471 | NAMEPLATE - on/off/start | 1 | ||
| 44-668 | LIGHT - indicator (oil pressure) | 1 | ||
| 44-984 | BULB - light | 1 | ||
| 44-2596 | BREAKER - circuit (auto reset) | 1 | ||
| 40-263 | KIT - points | 1 |
