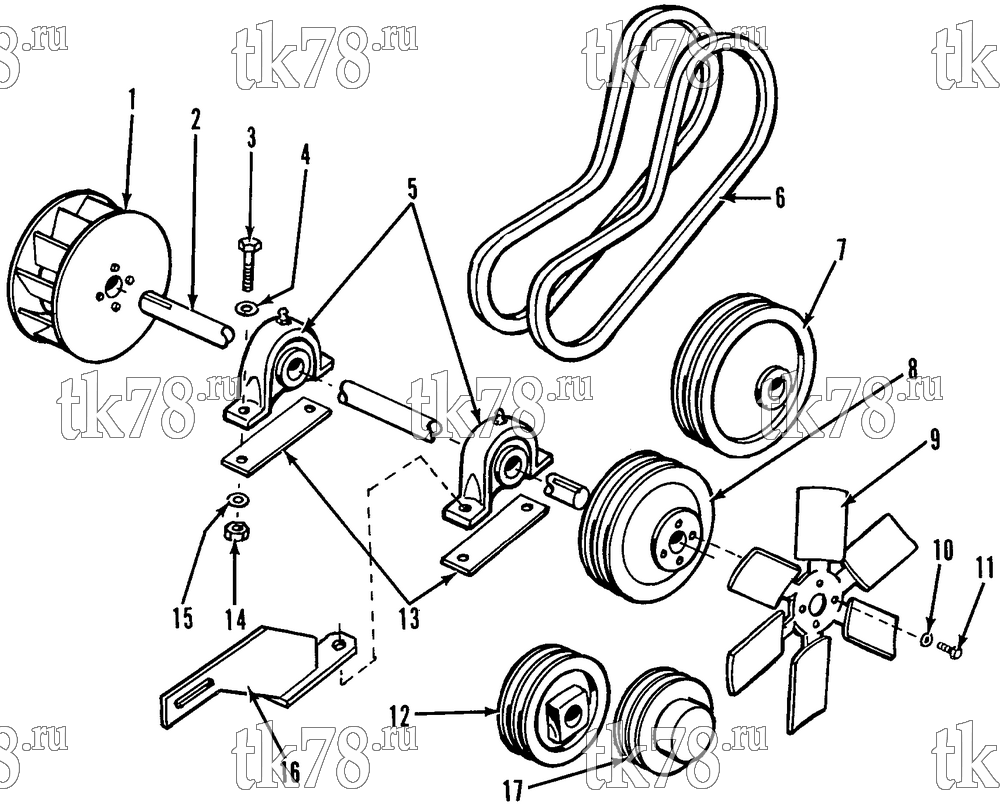

Установкa Thermo King AM2 схема BELTS, PULLEYS, FAN & BLOWER – 53A2
Обновление от: 2/23/98
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-515 | WHEEL - blower | 1 | |
| 2 | 77-1873 | FANSHAFT | 1 | |
| 55-3342 | SCREW - drive | 3 | ||
| 55-351 | KEY - square (2 in lg) | 1 | ||
| 55-4696 | KEY - square (3-1/2 in) | 1 | ||
| 3 | 55-791 | SCREW - bearing | 4 | |
| 4 | 55-375 | LOCKWASHER | 4 | |
| 5 | 77-174 | BEARING - shaft | 2 | |
| 6 | 78-484 | BELT (set of 2, matched) | 1 | |
| 99-6152 | NAMEPLATE - Belt Tension | 1 | ||
| 7 | 77-1314 | PULLEY - compressor | 1 | |
| 55-4316 | SCREW | 1 | ||
|
10-55-4316 | Болт коленвала компрессора X426/430 | 470 ₽ |
|
| 77-2498 | SPACER | 1 | ||
|
10-77-2498 | Шайба муфты сцепления | 990 ₽ |
|
| 55-9024 | KEY | 1 | ||
|
10-55-9024 | Шпонка коленвала, X418/426/430 | 590 ₽ |
|
| 8 | 77-1315 | PULLEY - fan drive | 1 | |
| 55-153 | SCREW | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 9 | 78-182 | FAN | 1 | |
| 10 | 55-790 | LOCKWASHER | 4 | |
| 11 | 55-141 | SCREW | 4 | |
| 12 | 77-311 | PULLEY - engine | 1 | |
| 77-505 | KEY | 1 | ||
| 55-153 | SCREW | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 13 | 99-2100 | SHIM | A/R | |
| 14 | 55-285 | NUT | 4 | |
| 15 | 55-375 | LOCKWASHER | 4 | |
| 16 | 99-6113 | BRACE - engine | 1 | |
| 55-129 | SCREW - brace | 1 | ||
| 55-2157 | WASHER | 1 | ||
| 17 | 77-1399 | PULLEY - idler | 1 | |
| 77-1108 | SHAFT & BEARING | 1 | ||
| 77-2389 | BEARING - roller | 1 | ||
| 77-2389 OEM | Подшипник | 4 430 ₽ |
|
|
| 10-77-2389 | Подшипник промежуточного вала SMX / SL | 2 140 ₽ |
|
|
| 33-566 | O-RING | 1 | ||
| 33-1039 | SEAL - oil & grease | 1 | ||
| 77-1093 | PLUG - expansion | 1 | ||
| 55-2300 | FITTING - lub | 1 | ||
| 55-314 | NUT - pulley | 1 | ||
| 55-2038 | FLATWASHER | 1 | ||
| 55-365 | LOCKWASHER | 1 |
