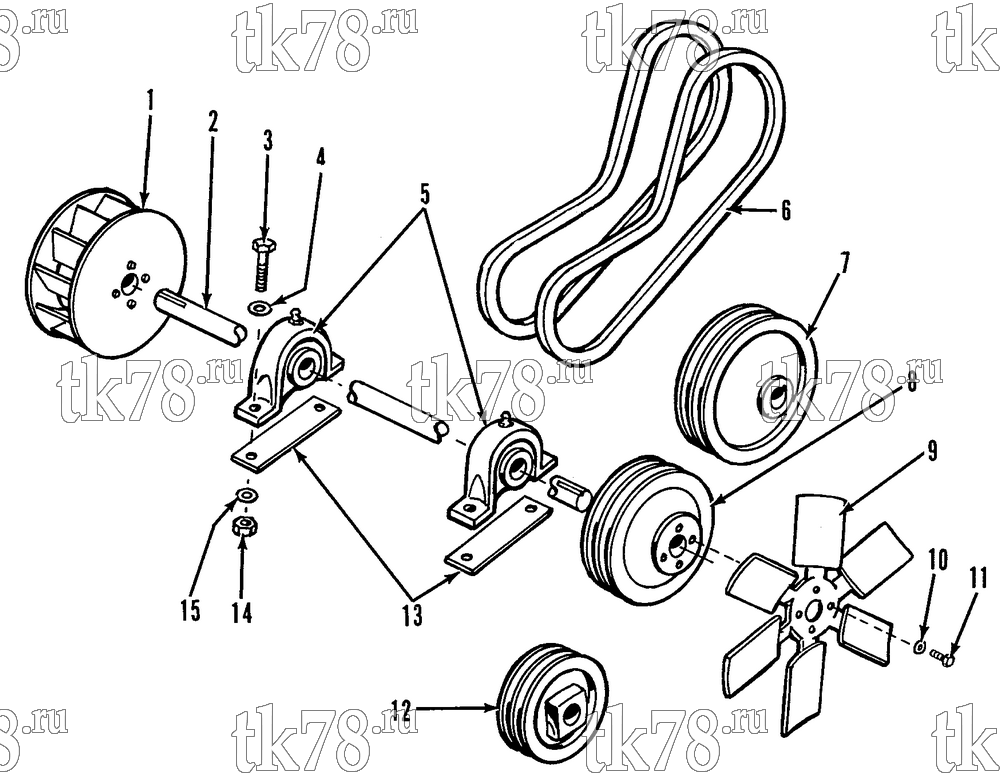

Установкa Thermo King AM2 схема BELTS, PULLEYS, FAN & BLOWER – 46B5
Обновление от: 2/23/98
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-483 | WHEEL - blower | 1 | |
| 2 | 77-1873 | FANSHAFT | 1 | |
| 55-3342 | SCREW - drive | 1 | ||
| 77-351 | KEY - square (2-1/4 in) | 1 | ||
| 55-4696 | KEY - square (3-1/2 in) | 1 | ||
| 3 | 55-126 | SCREW - bearing | 4 | |
| 4 | 55-402 | FLATWASHER | 4 | |
| 5 | 77-174 | BEARING - shaft | 2 | |
| 6 | 78-484 | BELT (set of 2, matched) | 1 | |
| 7 | 77-1314 | PULLEY - compressor | 1 | |
| 55-4316 | SCREW | 1 | ||
|
10-55-4316 | Болт коленвала компрессора X426/430 | 470 ₽ |
|
| 77-2498 | SPACER | 1 | ||
|
10-77-2498 | Шайба муфты сцепления | 990 ₽ |
|
| 55-9024 | KEY | 1 | ||
|
10-55-9024 | Шпонка коленвала, X418/426/430 | 590 ₽ |
|
| 8 | 77-1315 | PULLEY - fan drive | 1 | |
| 55-153 | SCREW | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 9 | 78-182 | FAN | 1 | |
| 10 | 55-790 | LOCKWASHER | 4 | |
| 11 | 55-141 | SCREW | 4 | |
| 12 | 77-311 | PULLEY - engine | 1 | |
| 77-505 | KEY | 1 | ||
| 55-153 | SCREW | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 13 | 99-2100 | SHIM | A/R | |
| 14 | 55-285 | NUT | 4 | |
| 15 | 55-375 | LOCKWASHER | 4 |
