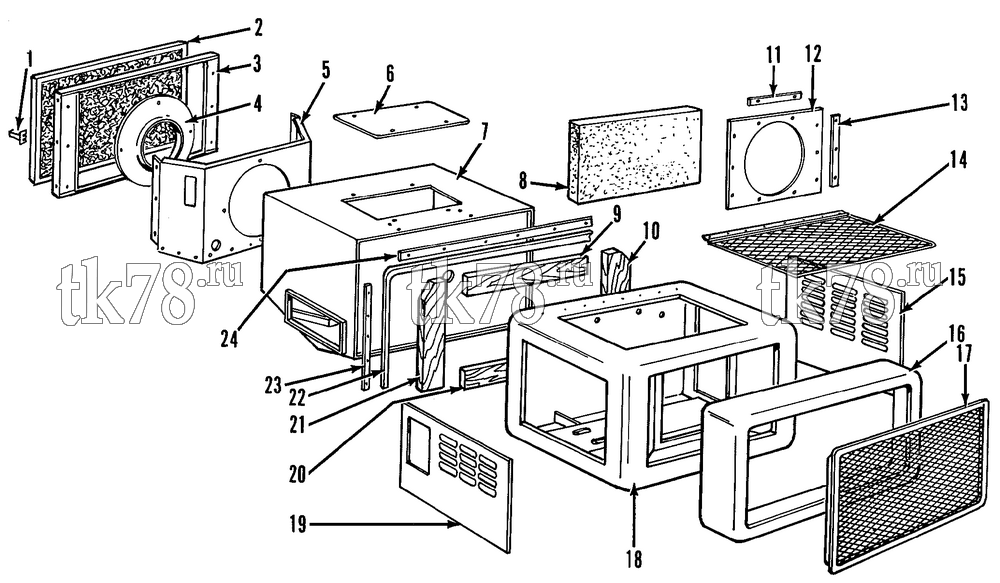

Установкa Thermo King AM2 схема STRUCTURAL COMPONENTS – 46B3
Обновление от: 11/22/95
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-4422 | FASTENER - snap | 2 | |
| 55-736 | SCREW | 2 | ||
| 2 | 98-2054 | FILTER - air | 1 | |
| 3 | 98-2055 | FRAME - coil | 1 | |
| 55-736 | SCREW | 16 | ||
| 4 | 98-2056 | ORIFICE - evaporator | 1 | |
| 55-1510 | SCREW | 4 | ||
| 5 | 98-2057 | PANEL - housing | 1 | |
| 55-1510 | SCREW - housing | 24 | ||
| 55-664 | LOCKNUT | 24 | ||
| 6 | 98-2060 | COVER - housing | 1 | |
| 55-2816 | NUT - captive | 4 | ||
| 7 | 98-2058 | HOUSING - evaporator | 1 | |
| 99-5840 | BOLTSTRIP | 1 | ||
| 55-3226 | SCREW - housing | 6 | ||
| 55-402 | FLATWASHER | 12 | ||
| 55-375 | LOCKWASHER | 6 | ||
| 55-285 | NUT | 6 | ||
| 8 | 98-1477 | INSULATION | 1 | |
| 9 | 99-3938 | BLOCK - filler (top) | 1 | |
| 10 | 99-3939 | BLOCK - filler (left) | 1 | |
| 11 | 99-3203 | NUTSTRIP - orifice | 2 | |
| 12 | 98-2059 | ORIFICE | 1 | |
| 13 | 99-266 | NUTSTRIP - orifice | 2 | |
| 55-3141 | SCREW - orifice | 10 | ||
| 14 | 98-1476 | SCREEN - top | 1 | |
| 55-3660 | STUD - wing | 2 | ||
| 55-2657 | WASHER - split | 2 | ||
| 55-2658 | RECEPTACLE - screen | 2 | ||
| 55-2270 | RIVET - receptacle | 4 | ||
| 55-2778 | SCREW - screen | 5 | ||
| 15 | 98-2061 | DOOR | 1 | |
| 55-3337 | STUD | 3 | ||
| 55-2657 | WASHER | 3 | ||
| 55-2658 | RECEPTACLE | 3 | ||
| 55-3272 | RIVET | 6 | ||
| 16 | 98-1474 | SHROUD - front | 1 | |
| 99-3935 | ANGLE (top) | 1 | ||
| 99-3934 | ANGLE (left) | 1 | ||
| 99-3933 | ANGLE (right) | 1 | ||
| 55-214 | SCREW (hh) | 8 | ||
| 55-366 | LOCKWASHER | 8 | ||
| 55-411 | FLATWASHER | 8 | ||
| 55-2831 | SCREW (tr hd) | 10 | ||
| 55-419 | LOCKWASHER | 10 | ||
| 33-507 | GROMMET | 1 | ||
| 33-429 | GROMMET | 1 | ||
| 17 | 98-301 | GRILLE - front | 1 | |
| 55-108 | SCREW - grille | 4 | ||
| 55-411 | WASHER | 4 | ||
| 55-1081 | NUT | 4 | ||
| 18 | 98-2062 | FRAME - condenser | 1 | |
| 99-375 | MOUNT - vibration | 4 | ||
| 99-938 | SPACER | 4 | ||
| 99-3936 | NUTPLATE - lifting eye | 2 | ||
| 55-419 | LOCKWASHER - nutplate | 4 | ||
| 55-2831 | SCREW | 4 | ||
| 19 | 98-2063 | DOOR | 1 | |
| 55-3337 | STUD | 2 | ||
| 55-2657 | WASHER | 2 | ||
| 55-2658 | RECEPTACLE | 2 | ||
| 55-3272 | RIVET - receptacle | 4 | ||
| 20 | 99-3941 | BLOCK - filler (bottom) | 1 | |
| 21 | 99-3940 | BLOCK - filler (right) | 1 | |
| 22 | 33-380 | GASKET - sill | 1 | |
| 23 | 99-3915 | STRIP - retaining | 2 | |
| 24 | 99-3914 | STRIP - retaining | 2 | |
| 55-4165 | SCREW - strip | 22 | ||
| 99-540 | NAMEPLATE - TK Mpls | 1 | ||
| 99-234 | MODEL | 1 | ||
| 99-6152 | NAMEPLATE - Belt Tension | 1 | ||
| 99-3624 | NAMEPLATE - TK Cold Line | 1 | ||
| 99-2715 | HOLDER - card | 1 | ||
| 98-2074 | HOOD - evaporator (complete) | 1 | ||
| 98-2076 | COVER - evaporator hood | 1 | ||
| 55-214 | SCREW - cover | 12 | ||
| 55-366 | LOCKWASHER | 12 | ||
| 98-2075 | GRILLE - assembly | 1 |
