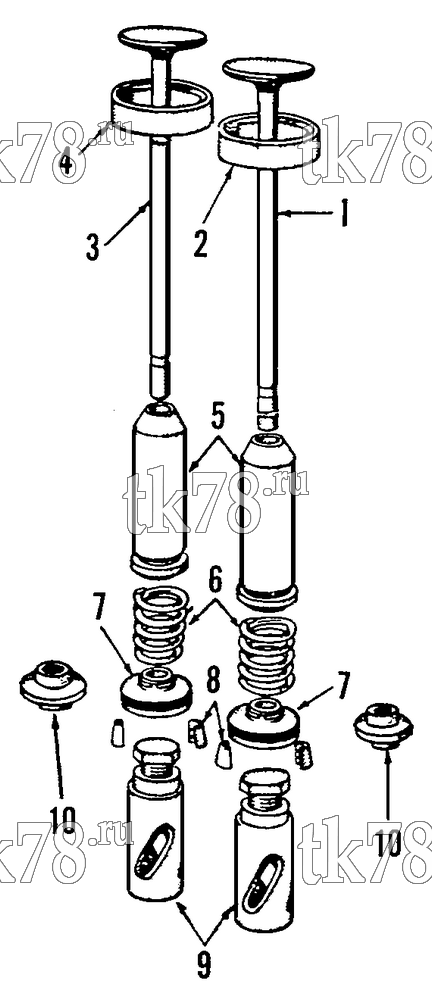

Установкa Thermo King AM2 схема VALVE GROUP – 3E9
Обновление от: 8/12/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-1220 | VALVE - intake | 1 | |
| 2 | 11-1168 | INSERT - intake valve seat (std) | 1 | |
| 11-1221 | INSERT - intake valve seat (0.002 oversize) | 1 | ||
| 11-1223 | INSERT - intake valve seat (0.025 oversize) | 1 | ||
| 3 | 11-1160 | VALVE - exhaust | 1 | |
| 4 | 11-1170 | INSERT - exhaust valve seat (std) | 1 | |
| 11-1172 | INSERT - exhaust valve seat (0.002 oversize) | 1 | ||
| 11-1171 | INSERT - exhaust valve seat (0.010 oversize) | 1 | ||
| 11-1166 | INSERT - intake valve seat (0.025 oversize) | 1 | ||
| 5 | 11-1174 | GUIDE - valve | 2 | |
| 6 | 11-1018 | SPRING - valve | 2 | |
| 7 | 11-1173 | ROTOCAP - valve (gasoline only) | 1 | |
| 8 | 11-1153 | LOCK | 4 | |
| 9 | 11-254 | TAPPET - valve | 2 | |
| 11-1353 | TAPPET - valve (0.005 os) | 2 | ||
| 10 | 11-1297 | RETAINER (replaces item 7, propane only) | 1 |
