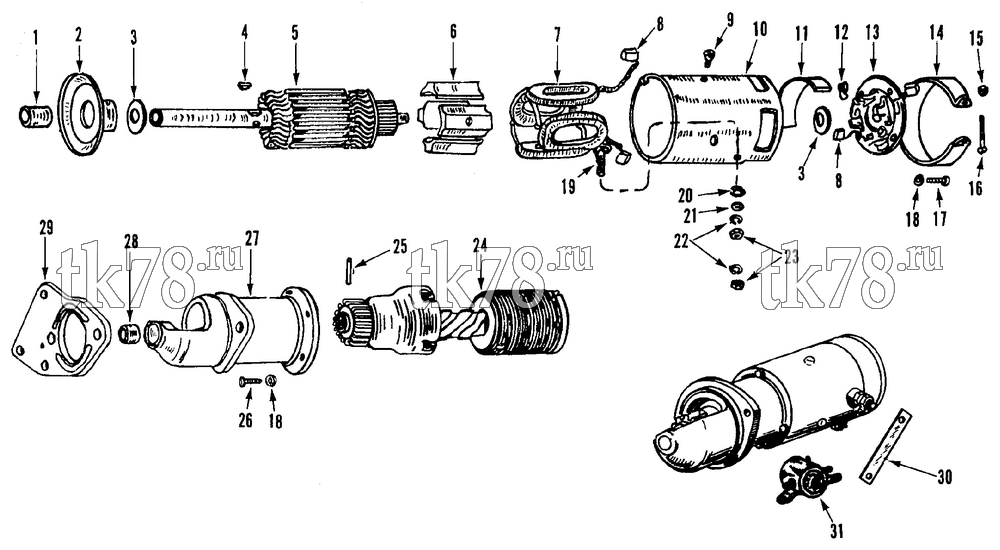

Установкa Thermo King AM2 схема STARTER ASSEMBLY – 25G9
Обновление от: 11/21/95
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 44-665 | MOTOR - starting | 1 | ||
| 1 | 44-677 | BEARING (incl w/ item 2) | 1 | |
| 2 | 44-683 | BEARING (incl w/ item 1) | 1 | |
| 3 | 55-3751 | WASHER - thrust | A/R | |
| 4 | 55-512 | KEY | 1 | |
| 5 | 44-681 | ARMATURE | 1 | |
| 6 | NSS | SHOE - pole | 4 | |
| 7 | 44-679 | FIELD - coil (package) | 1 | |
| 8 | 44-680 | BRUSH - set | 1 | |
| 9 | 44-903 | SCREW - pole shoe | 4 | |
| 10 | NSS | FRAME | 1 | |
| 11 | 44-4537 | INSULATION - field connection | 1 | |
| 12 | 44-1846 | SPRING - brush | 1 | |
| 13 | 44-684 | HEAD - assembly | 1 | |
| 14 | 44-4538 | BAND - cover | 1 | |
| 15 | 55-2305 | NUT - square (10/32, cover band) | 1 | |
| 16 | 55-3019 | SCREW - cover (mach rd hd, 10/32 x 1-1/2) | 1 | |
| 17 | 55-2266 | SCREW (mach rd hd, 10/32 x 3/8) | 4 | |
| 18 | 55-1511 | LOCKWASHER (#10) | 8 | |
| 19 | 44-4539 | STUD - terminal | 1 | |
| 20 | 44-4540 | WASHER (fiber) | 1 | |
| 21 | 55-371 | FLATWASHER (5/16) | 1 | |
| 22 | 55-790 | LOCKWASHER - spring (5/16) | 2 | |
| 23 | 55-312 | NUT (5/16-18, hex) | 2 | |
| 24 | 44-701 | DRIVE - Bendix | 1 | |
| 25 | 55-3752 | PIN - dowel | 1 | |
| 26 | 55-1510 | SCREW (mach hh, 10/32 x 5/8) | 4 | |
| 27 | 44-4541 | HOUSING - assembly, pinion | 1 | |
| 28 | 44-1700 | BEARING (bronze) | 1 | |
| 29 | 99-988 | PLATE - starter | 1 | |
| 30 | 44-4542 | STRAP - jumper | 1 | |
| 31 | 44-652 | SOLENOID | 1 |
