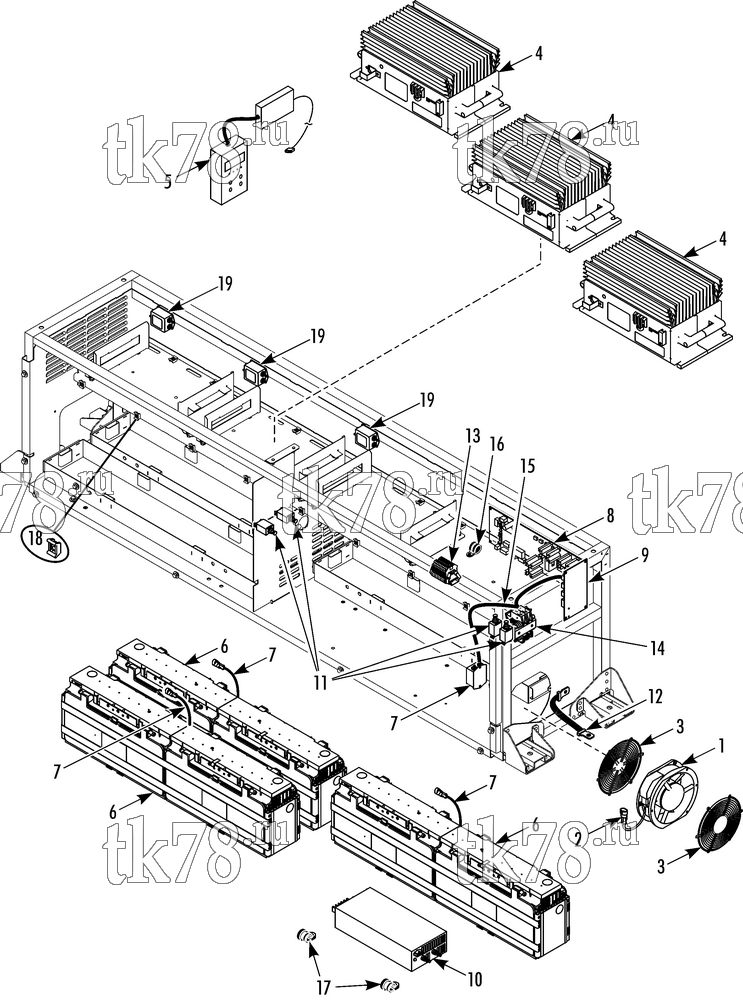

Установкa Thermo King AIR-200 схема BATTERY ELECTRICAL COMPONENTS – 248E2
Обновление от: 3/14/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1533 | FAN (includes item 19) | 1 | |
| 41-4624 | TERMINAL - male | 2 | ||
| 2 | 41-4622 | CONNECTOR - female | 1 | |
| 41-4625 | SEAL - cable (yellow) | 2 | ||
| 3 | 78-1534 | GRILLE - fan | 2 | |
| 4 | 45-2280 | CHARGER - battery (#1, #2 & #3)) | 3 | |
| 55-6987 | SCREW - charger | 12 | ||
| 55-7066 | LOCKWASHER | 12 | ||
| 55-7085 | FLATWASHER | 12 | ||
| 5 | 204-1958 | KIT - programmer, charger | 1 | |
| 6 | 203-784 | BATTERY (w/connectors) | 3 | |
| 7 | 41-8925 | SENSOR - battery | 3 | |
| 41-4622 | CONNECTOR - battery | 3 | ||
| 41-4624 | TERMINAL | 6 | ||
| 41-4625 | SEAL - battery | 6 | ||
| 8 | 45-2369 | PCB - power & control | 1 | |
| 9 | 45-2370 | PCB - communication | 1 | |
| 55-7698 | NUT - pcb | 8 | ||
| 55-7861 | LOCKWASHER | 8 | ||
| 51-2074 | FLATWASHER | 8 | ||
| 10 | 45-2368 | POWER - supply | 1 | |
| 11 | 41-7411 | BREAKER - circuit (35 amp) | 4 | |
| 12 | 41-8915 | STRAP - ground | 1 | |
| 55-7354 | NUT - strap | 1 | ||
| 55-8893 | WASHER | 1 | ||
| 13 | NSS | BLOCK - terminal (see 248E6) | 1 | |
| 14 | NSS | BLOCK - terminal w/fuse (see 248E7) | 1 | |
| 15 | 41-9579 | HARNESS - battery pack | 1 | |
| 16 | 92-3835 | CLAMP (20 mm) | 1 | |
| 55-7664 | SCREW - clamp | 1 | ||
| 55-7697 | FLATWASHER | 1 | ||
| 17 | 92-1502 | CLAMP (10 mm) | 2 | |
| 55-7036 | SCREW - clamp | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 18 | 55-8212 | HOLDER - bandwrap | 17 | |
| 55-9915 | RIVET | 17 | ||
| 55-2332 | BANDWRAP (.75 dia) | A/R | ||
| 55-2330 | BANDWRAP (1.75 dia) | A/R | ||
| 19 | 41-9578 | FILTER | 4 | |
| 55-7698 | NUT - filter | 8 | ||
| 55-7697 | FLATWASHER | 8 |
