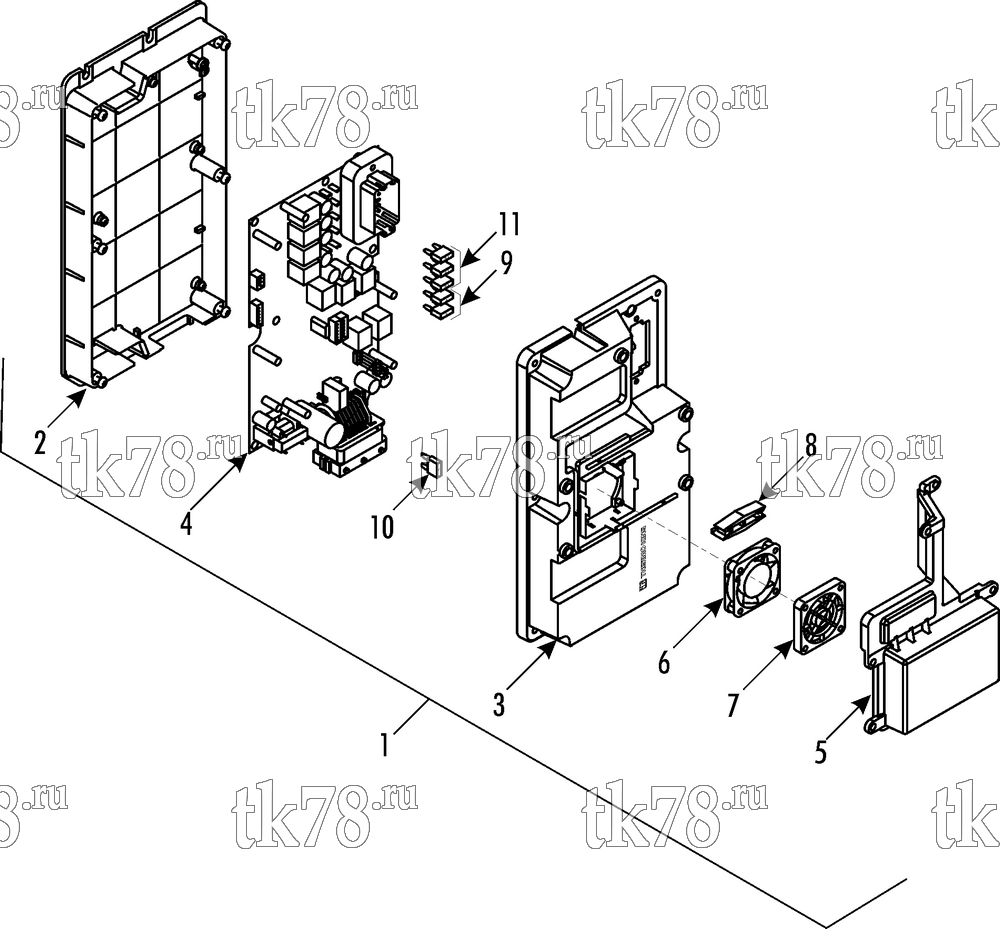

Установкa Thermo King AIR-200 схема CONTROL BOX – 248D8
Обновление от: 10/22/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 45-2364 | BOX - control | 1 | |
| 2 | 92-3470 | COVER - rear | 1 | |
| 3 | 92-3471 | COVER - front | 1 | |
| 4 | NSS | BOARD - pc | 1 | |
| 5 | 92-3473 | COVER - fuse access | 1 | |
| 6 | 41-5480 | FAN - pc board | 1 | |
| 7 | 92-3472 | FILTER - fan | 1 | |
| 8 | 204-1101 | PULLER - fuse | 1 | |
| 9 | 41-3077 | FUSE (3 amp) | 2 | |
| 30-41-3077 | Предохранитель 32V 3А | 520 ₽ |
|
|
| 10 | 41-4551 | FUSE (5 amp) | 1 | |
| 30-41-4551 | Предохранитель 32V 5А | 520 ₽ |
|
|
| 11 | 41-4553 | FUSE (10 amp) | 3 | |
| 55-7367 | NUT - control box | 4 | ||
| 55-7404 | LOCKWASHER | 4 | ||
| 55-7089 | FLATWASHER | 4 |
