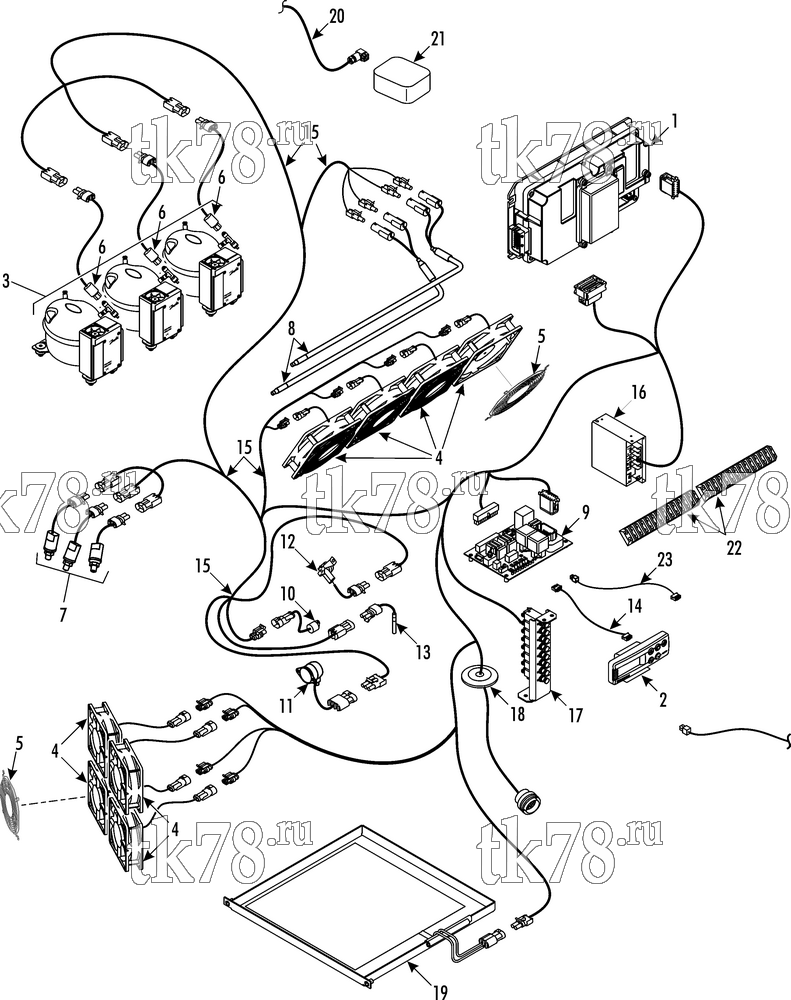

Установкa Thermo King AIR-200 схема ELECTRICAL COMPONENTS – 248D7
Обновление от: 5/23/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 45-2364 | CONTROL BOX (see 248D8) | 1 | |
| 2 | 45-2072 | CAB CONTROLER (see 218E4) | 1 | |
| 3 | 102-991 | COMPRESSOR (see 248D6) | 3 | |
| 4 | 78-1748 | FAN (see 115D14 for connectors) | 8 | |
| 41-4621 | CONNECTOR - male | 8 | ||
| 41-4623 | TERMINAL - female | 8 | ||
| 41-4625 | SEAL - cable | 8 | ||
| 5 | 92-2135 | GUARD - fan | 8 | |
| 51-1606 | SCREW - fan & guard | 32 | ||
| 6 | 44-8030 | SWITCH - lpco (see 248D6, & 115D14 for connectors) | 3 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 7 | 44-7992 | SWITCH - hpco (see 248D4, & 115D14 for connectors) | 3 | |
| 8 | 41-9546 | HEATER (250w 24v, (see 248D5, & 115D14 for connectors) | 2 | |
| 9 | 41-9548 | PCB - auxiliary | 1 | |
| 55-9620 | SCREW - pcb | 4 | ||
| 55-7861 | LOCKWASHER | 4 | ||
| 55-7698 | NUT | 4 | ||
| 10 | 44-6116 | SWITCH - thermostat (see 248D5, & 115D14 for connectors) | 1 | |
| 11 | 41-7402 | SWITCH - thermostat (see 248D5, & 115D14 for connectors) | 2 | |
| 12 | 41-3136 | SWITCH - defrost (see 248D5, & 115D14 for connectors) | 1 | |
| 13 | 41-7404 | SENSOR - temperature (see 248D5) | 1 | |
| 14 | 41-7406 | CABLE - in -cab auxiliary pcb | 1 | |
| 41-5804 | CONNECTOR (5-pin) | 2 | ||
| 15 | 41-9573 | HARNESS - unit | 1 | |
| 16 | 45-2159 | CONVERTER | 1 | |
| 51-2072 | SCREW - converter | 2 | ||
| 55-7830 | FLATWASHER | 2 | ||
| 55-9057 | LOCKWASHER | 2 | ||
| 17 | NSS | BREAKERS - circuit (see 248D9) | 1 | |
| 18 | 33-2656 | GROMMET (65 mm) | 1 | |
| 19 | NSS | PAN - evaporator (see 248D0) | 1 | |
| 20 | 41-9574 | HARNESS - smoke detector | 1 | |
| 41-9575 | CONNECTOR (6-pin) | 1 | ||
| 21 | NSS | DETECTOR - smoke (not supplied by TK) | 1 | |
| 22 | 44-2728 | BOARD - terminal | 2 | |
| 23 | 41-9547 | HARNESS - aux pcb to display | 1 | |
| 41-654 | CONNECTOR (4-pin) | 1 | ||
| 41-1807 | SOCKET (18-24 ga) | 4 | ||
| 41-9572 | CONNECTOR - cable (4-pin) | 1 |
