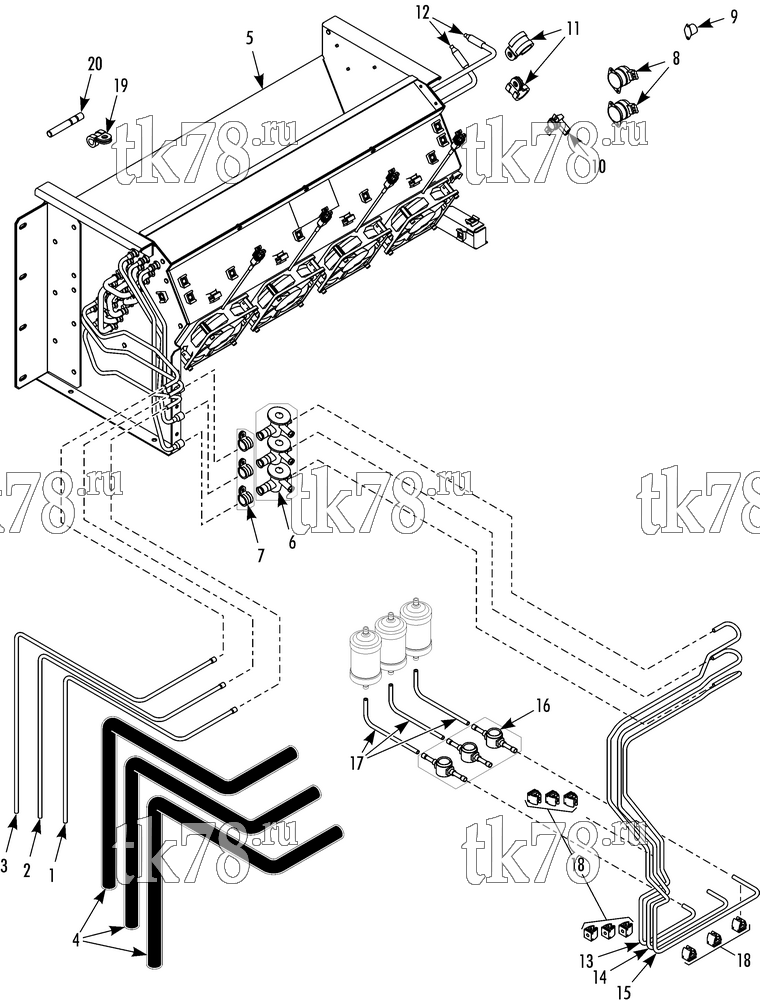

Установкa Thermo King AIR-200 схема REFRIGERATION EVAPORATOR – 248D5
Обновление от: 2/22/12
| № | TK # | Описание | Кол-во Цена |
|---|---|---|---|
| 1 | 61-5308 | TUBE - suction (N1) | 1 |
| 2 | 61-5309 | TUBE - suction (N2) | 1 |
| 3 | 61-5310 | TUBE - suction (N3) | 1 |
| 4 | 92-5857 | INSULATION - tube | A/R |
| 5 | 67-2539 | COIL - evaporator | 1 |
| 55-7172 | SCREW - evaporator | 6 | |
| 55-6996 | LOCKWASHER | 6 | |
| 55-8893 | WASHER | 6 | |
| 6 | 61-5282 | VALVE - expansion | 3 |
| 61-3718 | FILTER - expansion valve | 3 | |
| 7 | 51-375 | CLAMP (15 mm) | 3 |
| 55-7340 | SCREW - clamp | 3 | |
| 55-7404 | LOCKWASHER | 3 | |
| 8 | 41-7402 | SWITCH - thermostat | 2 |
| 51-2071 | SCREW - switch | 4 | |
| 9 | 44-6116 | SWITCH- thermostat | 1 |
| 55-7863 | SCREW - switch | 2 | |
| 10 | 41-9242 | SWITCH - defrost thermostat | 1 |
| 55-9900 | SCREW - switch | 2 | |
| 11 | 92-1501 | CLAMP (12 mm) | 2 |
| 55-7340 | SCREW - clamp | 2 | |
| 55-7404 | LOCKWASHER | 2 | |
| 12 | 41-9546 | HEATER (250w 24v) | 2 |
| 13 | 61-5311 | TUBE - valve to sightglass (N1) | 1 |
| 14 | 61-5312 | TUBE - valve to sightglass (N2) | 1 |
| 15 | 61-5313 | TUBE - valve to sightglass (N3) | 1 |
| 16 | 61-1660 | SIGHTGLASS | 3 |
| 17 | 61-5314 | TUBE - sightglass to dehydrator | 3 |
| 18 | 92-5952 | SADDLE - tube routing | 9 |
| 55-9915 | RIVET | 9 | |
| 19 | 55-9825 | CLAMP (6 mm) | 1 |
| 55-7340 | SCREW - clamp | 1 | |
| 55-7404 | LOCKWASHER | 1 | |
| 20 | 41-7404 | SENSOR - temperature | 1 |
