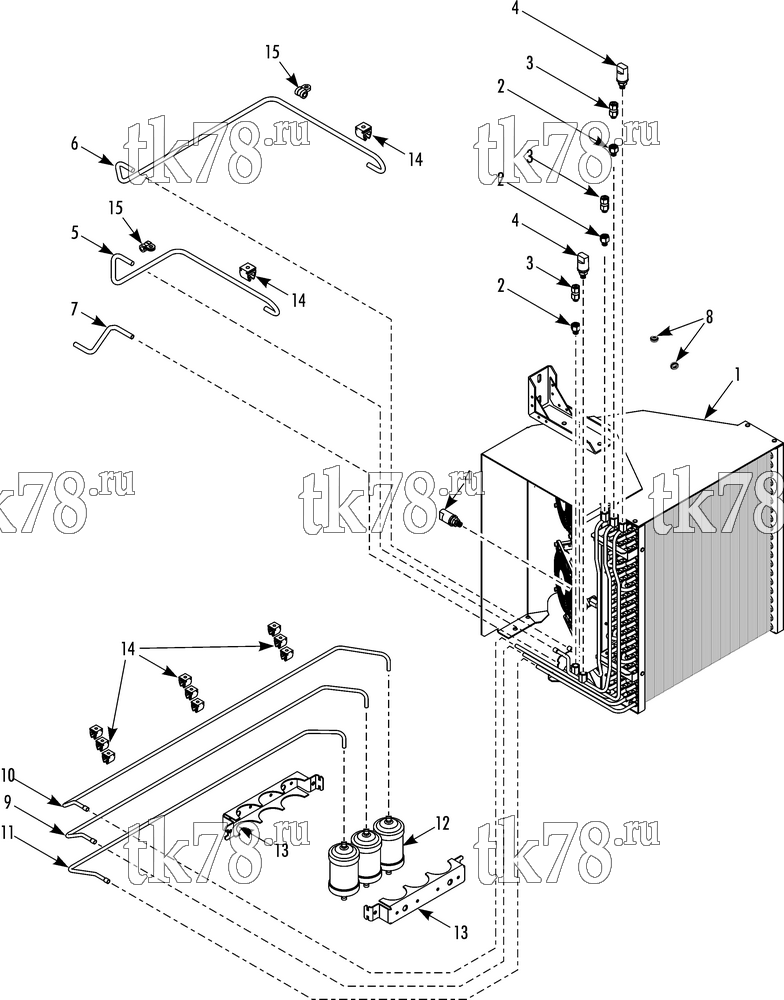

Установкa Thermo King AIR-200 схема REFRIGERATION CONDENSER – 248D4
Обновление от: 10/22/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2538 | COIL - condenser | 1 | |
| 2 | 61-2060 | ADAPTER | 3 | |
| 3 | 61-1193 | VALVE - relief | 3 | |
| 4 | 44-7992 | SWITCH - hpco (see 115D14 for connectors) | 3 | |
| 5 | 61-5302 | TUBE - inlet, compressor to condenser (N 1) | 1 | |
| 6 | 61-5303 | TUBE - inlet, compressor to condenser (N 2) | 1 | |
| 7 | 61-5304 | TUBE - inlet, compressor to condenser (N 3) | 1 | |
| 8 | 33-4737 | GROMMET | 2 | |
| 9 | 61-5305 | TUBE - condenser to dehydrator (N 1) | 1 | |
| 10 | 61-5306 | TUBE - condenser to dehydrator (N 2) | 1 | |
| 11 | 61-5307 | TUBE - condenser to dehydrator (N 3) | 1 | |
| 12 | 61-3717 | DEHYDRATOR | 3 | |
| 13 | 92-5959 | BRACKET - dehydrator | 1 | |
| 55-7035 | SCREW - bracket | 2 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-7042 | NUT | 2 | ||
| 14 | 92-5952 | SADDLE - tube routing | 11 | |
| 55-9915 | RIVET | 9 | ||
| 15 | 55-9825 | CLAMP (6 mm) | 2 | |
| 55-7340 | SCREW - clamp | 3 | ||
| 55-7089 | FLATWASHER | 3 | ||
| 55-7404 | LOCKWASHER | 3 | ||
| 55-7367 | NUT | 3 |
