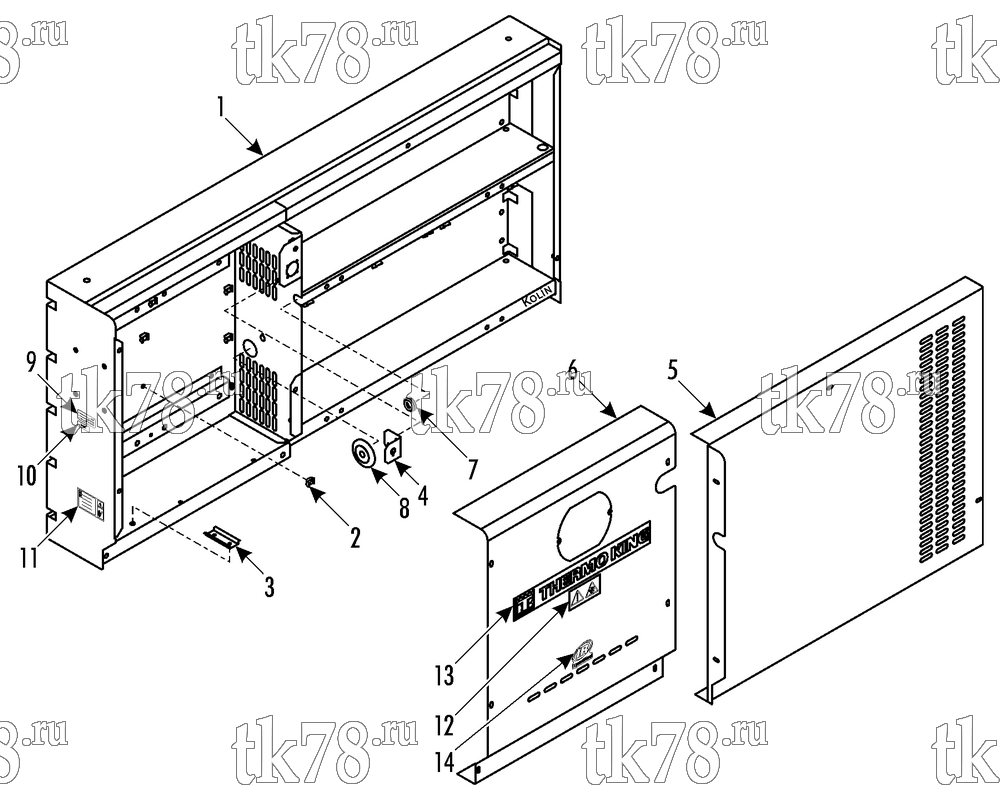

Установкa Thermo King AIR-100 схема BATTERY FRAME – 215H6
Обновление от: 5/23/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7630 | FRAME - battery | 1 | |
| 55-8790 | SCREW (M4) | 4 | ||
| 55-7861 | LOCKWASHER | 4 | ||
| 55-7698 | NUT | 4 | ||
| 55-9495 | RIVET | 4 | ||
| 55-8375 | NUT - captive (M5) | 3 | ||
| 55-7373 | NUT - captive (M6) | 22 | ||
| 55-8403 | NUT - captive (M8) | 8 | ||
| 2 | 55-8212 | HOLDER - bandwrap | 17 | |
| 51-1609 | RIVET - holder | 17 | ||
| 55-2330 | BANDWRAP | 17 | ||
| 3 | 91-9993 | GUIDE | 1 | |
| 51-1609 | RIVET - guide | 2 | ||
| 4 | 92-5971 | SUPPORT - circuit breaker | 1 | |
| 55-7367 | NUT - support | 2 | ||
| 55-7033 | FLATWASHER | 2 | ||
| 55-7404 | LOCKWASHER | 2 | ||
| 5 | 98-7631 | COVER | 1 | |
| 55-7752 | SCREW - cover | 4 | ||
| 55-8893 | WASHER | 4 | ||
| 55-6996 | LOCKWASHER | 4 | ||
| 6 | 98-7632 | COVER | 1 | |
| 55-7172 | SCREW - cover | 6 | ||
| 55-8893 | WASHER | 6 | ||
| 55-6996 | LOCKWASHER | 6 | ||
| 7 | 33-3284 | GROMMET (5/8 id) | 1 | |
| 33-2656 | GROMMET (65 mm od) | 2 | ||
| 9 | 92-1695 | NAMEPLATE - Identification | 1 | |
| 10 | 92-2810 | NAMEPLATE - Voltage, 24V | 1 | |
| 11 | 92-590 | NAMEPLATE - Caution, High Voltage | 1 | |
| 12 | 92-589 | NAMEPLATE - Danger, Fan | 1 | |
| 13 | 92-1898 | NAMEPLATE - Thermo King | 1 | |
| 14 | 92-921 | NAMEPLATE - IR logo | 1 | |
| 91-9991 | TAPE - sealant | A/R |
