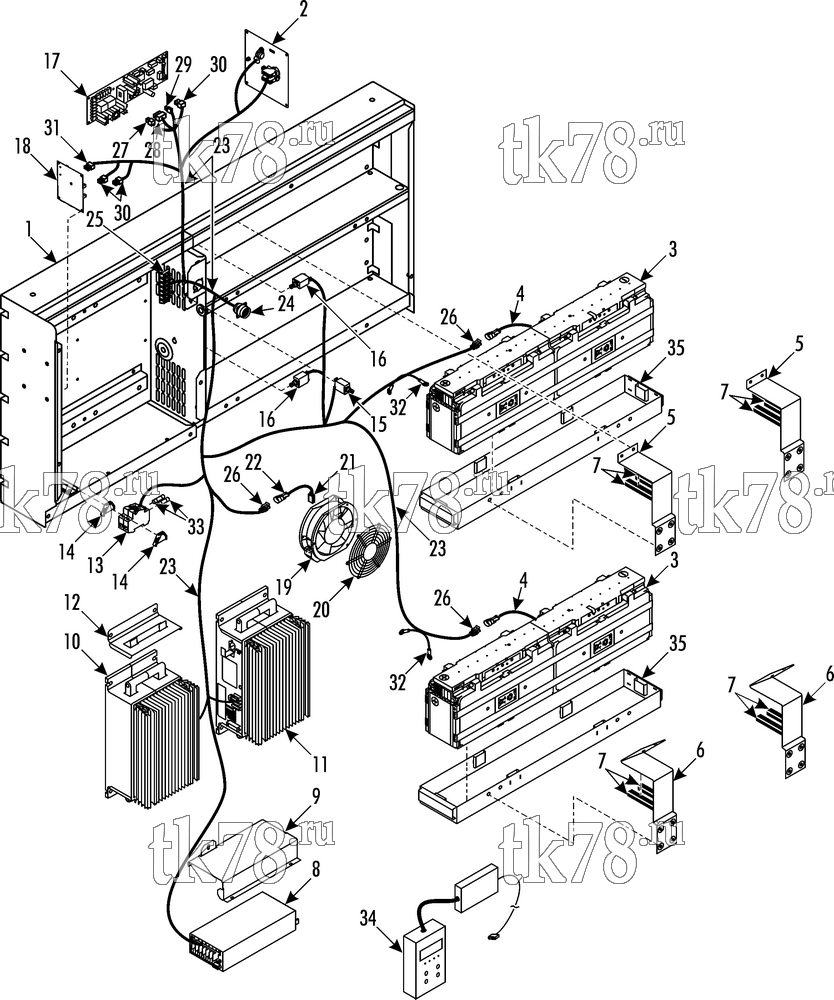

Установкa Thermo King AIR-100 схема BATTERY SYSTEM – 215H5
Обновление от: 4/18/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | FRAME - battery (see 215H6) | 1 | |
| 2 | NSS | KIT (see 215H7) | 1 | |
| 3 | 203-784 | BATTERY (inc connectors and terminals) | 2 | |
| 4 | 41-8925 | SENSOR - battery | 2 | |
| 41-4622 | CONNECTOR - battery | 2 | ||
| 41-4624 | TERMINAL | 4 | ||
| 41-4625 | SEAL - cable | 4 | ||
| 5 | 92-5968 | BRACKET - battery 2 | 2 | |
| 6 | 92-5969 | BRACKET - battery 1 | 2 | |
| 55-7172 | SCREW - bracket | 20 | ||
| 55-6995 | FLATWASHER | 24 | ||
| 55-6996 | LOCKWASHER | 24 | ||
| 55-7354 | NUT | 4 | ||
| 7 | 33-4343 | TAPE - sealant | A/R | |
| 8 | 45-2368 | POWER SUPPLY | 1 | |
| 9 | 92-5970 | SUPPORT - power supply | 1 | |
| 55-7169 | SCREW - support | 3 | ||
| 55-7033 | FLATWASHER | 3 | ||
| 55-7404 | LOCKWASHER | 3 | ||
| 10 | 45-2280 | CHARGER 1 | 1 | |
| 11 | 45-2281 | CHARGER 2 | 1 | |
| 12 | 92-5875 | SUPPORT - charge | 4 | |
| 55-7828 | SCREW - charger | 8 | ||
| 55-9485 | WASHER | 8 | ||
| 55-7066 | LOCKWASHER | 8 | ||
| 13 | 41-7988 | SWITCH - fuse isolator | 1 | |
| 14 | 41-898 | FIXING - plastic | 2 | |
| 15 | 41-7412 | BREAKER - circuit (25 amp) | 1 | |
| 16 | 41-7411 | BREAKER - circuit (35 amp) | 2 | |
| 17 | 45-2161 | PCB - power & control | 1 | |
| 18 | 45-2282 | PCB - communications | 1 | |
| 55-7698 | NUT - pcb | 8 | ||
| 55-7368 | FLATWASHER | 8 | ||
| 55-7861 | LOCKWASHER | 8 | ||
| 19 | 78-1533 | FAN (24VDC) | 1 | |
| 20 | 78-1534 | GRILLE - protection | 1 | |
| 55-9352 | SCREW - fan & grille | 2 | ||
| 55-7368 | FLATWASHER | 4 | ||
| 55-7861 | LOCKWASHER | 2 | ||
| 55-7698 | NUT | 2 | ||
| 21 | 41-7603 | CONNECTOR - fan | 1 | |
| 22 | 41-4622 | CONNECTOR - female | 1 | |
| 41-4624 | TERMINAL - male | 2 | ||
| 23 | 41-7414 | HARNESS - battery pack | 1 | |
| 24 | 41-7604 | RECEPTACLE | 1 | |
| 25 | 44-4543 | BOARD - 5 terminals | 1 | |
| 26 | 41-4621 | CONNECTOR | 3 | |
| 27 | 41-654 | RECEPTACLE | 1 | |
| 28 | 41-3423 | RECEPTACLE | 1 | |
| 29 | 41-1507 | RECEPTACLE | 1 | |
| 30 | 41-7605 | RECEPTACLE | 3 | |
| 31 | 41-7606 | RECEPTACLE | 1 | |
| 55-7698 | NUT - board | 2 | ||
| 55-7697 | FLATWASHER | 2 | ||
| 55-7861 | LOCKWASHER | 2 | ||
| 55-7863 | SCREW - receptacle | 4 | ||
| 55-7864 | NUT | 4 | ||
| 55-7830 | FLATWASHER | 8 | ||
| 51-1608 | HOLDER - flat tie | 1 | ||
| 55-2330 | BANDWRAP (1.75 dia, black) | 6 | ||
| 55-2332 | BANDWRAP (0.75 dia, black) | 12 | ||
| 32 | 42-255 | CABLE - Battery | 2 | |
| 33 | 41-7987 | FUSE 20A 600V 10X38 AR | 2 | |
| 34 | 204-1958 | KIT - programmer, charger | 1 | |
| 35 | 98-7629 | TRAY - battery | 2 | |
| 55-7373 | NUT - captive (M6) | 8 |
