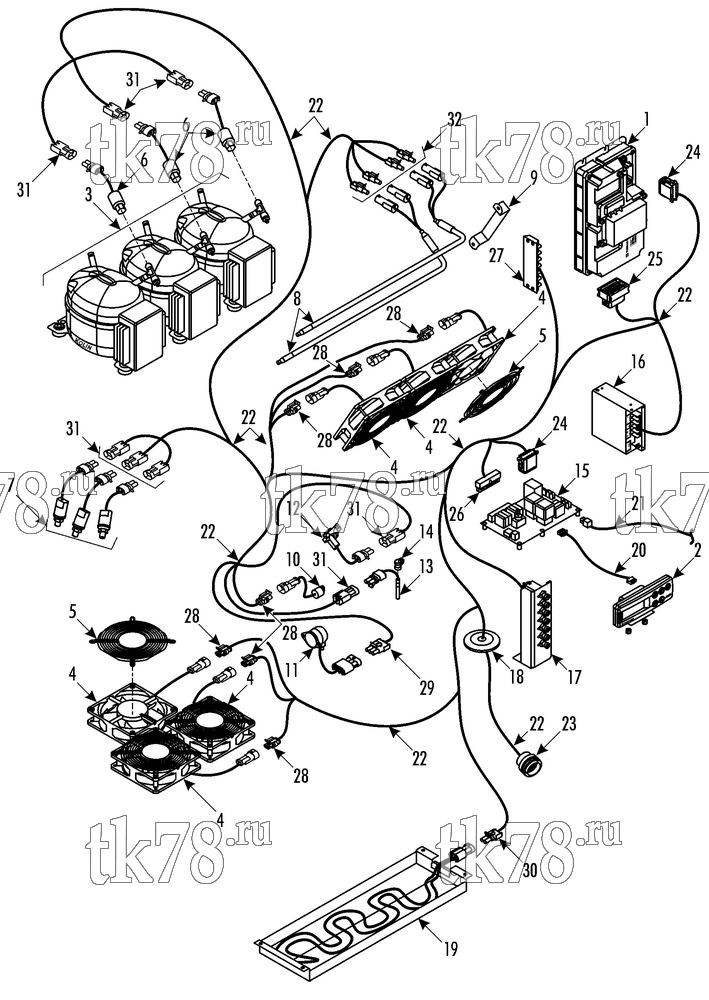

Установкa Thermo King AIR-100 схема ELECTRICAL COMPONENTS (MRU) – 215H2
Обновление от: 12/4/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 45-2157 | CONTROL BOX (see 215H3) | 1 | |
| 2 | 45-2072 | CAB CONTROLER (see 218E4) | 1 | |
| 3 | 102-884 | COMPRESSOR (see 215H1) | 3 | |
| 4 | 78-1532 | FAN | 6 | |
| 41-4622 | CONNECTOR - fan | 1 | ||
| 41-4624 | TERMINAL - male | 2 | ||
| 41-4625 | SEAL - cable | 2 | ||
| 5 | 92-2135 | GUARD - fan | 6 | |
| 51-1606 | SCREW - fan & guard | 24 | ||
| 6 | 44-8030 | SWITCH - lpco (see 215H1) | 3 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 7 | 44-7992 | SWITCH - hpco (see 215H1) | 3 | |
| 8 | 41-7401 | RESISTOR (150 watt) | 2 | |
| 44-7330 | CONNECTOR - shroud (1-pin, see 115D14) | 4 | ||
| 44-5836 | TERMINAL - male (14-16 ga) | 4 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 4 | ||
| 9 | 92-5965 | SUPPORT - resistors | 1 | |
| 55-9915 | RIVET - support | 2 | ||
| 10 | 44-6116 | SWITCH - thermostat | 1 | |
| 51-1607 | SCREW - switch | 2 | ||
| 41-4622 | CONNECTOR - switch | 1 | ||
| 41-4624 | TERMINAL - male | 2 | ||
| 41-4625 | SEAL - cable | 2 | ||
| 11 | 41-7402 | SWITCH - thermostat | 1 | |
| 44-9569 | CONNECTOR - shroud (3-pin) | 1 | ||
| 41-7403 | TERMINAL - male | 3 | ||
| 44-6324 | SEAL - cable (blue, 12-14 ga) | 3 | ||
| 12 | 41-3136 | SWITCH - defrost | 1 | |
| 44-5838 | CONNECTOR - defrost switch | 1 | ||
| 44-5884 | TERMINAL - female (18-20 ga) | 2 | ||
| 44-5885 | SEAL - cable (green, 18-22 ga) | 2 | ||
| 55-9900 | SCREW - thermostat & defrost switch | 4 | ||
| 13 | 41-7404 | SENSOR - temperature | 1 | |
| 14 | 55-9825 | CLAMP - sensor | 1 | |
| 51-250 | SCREW - clamp | 1 | ||
| 55-7861 | LOCKWASHER | 1 | ||
| 55-7697 | FLATWASHER | 1 | ||
| 15 | 45-2158 | PCB - auxiliary | 1 | |
| 55-9620 | SCREW - pcb | 4 | ||
| 55-7861 | LOCKWASHER | 4 | ||
| 55-7698 | NUT | 4 | ||
| 16 | 45-2159 | COVERTER - DC | 1 | |
| 55-9195 | SCREW - converter | 2 | ||
| 55-7830 | FLATWASHER | 2 | ||
| 55-9057 | LOCKWASHER | 2 | ||
| 17 | NSS | BREAKERS (see 215H4) | 1 | |
| 18 | 33-2656 | GROMMET | 1 | |
| 19 | 92-5877 | PAN - evaporator (see 215G0) | 1 | |
| 20 | 41-7406 | CABLES - in-cab auxiliary pcb | 1 | |
| 21 | 41-9784 | CABLE - aux pcb to display | 1 | |
| 22 | 41-7405 | HARNESS - MRU | 1 | |
| 23 | 41-7601 | CONNECTOR | 1 | |
| 24 | 44-9600 | CONNECTOR - 12 terminals | 2 | |
| 44-9601 | WEDGE - connector | 2 | ||
| 25 | 41-5794 | CONNECTOR - 24 way | 1 | |
| 41-5792 | SLED - connector | 1 | ||
| 26 | 41-656 | RECEPTACLE - 24 terminals | 1 | |
| 27 | 44-1728 | BOARD - 6 terminals | 1 | |
| 28 | 41-4621 | CONNECTOR | 7 | |
| 29 | 44-6959 | CONNECTOR - tower (3-pin) | 1 | |
| 30 | 44-5838 | CONNECTOR - tower (2-pin) | 1 | |
| 31 | 44-5835 | CONNECTOR | 8 | |
| 32 | 44-7327 | CONNECTOR - tower (1-pin) | 4 | |
| 55-9620 | SCREW - board | 2 | ||
| 51-757 | BANDWRAP (4.00 dia, black) | 20 | ||
| 55-2332 | BANDWRAP (0.75 dia, black) | 15 |
