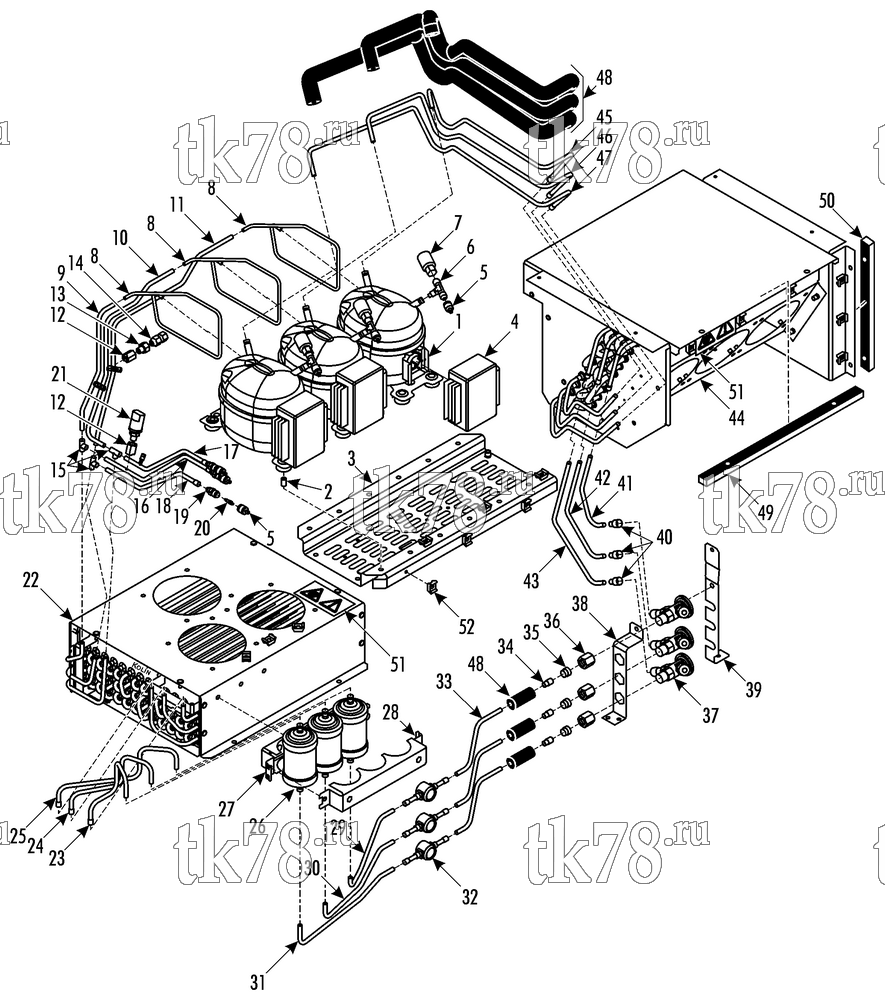

Установкa Thermo King AIR-100 схема REFRIGERATION COMPONENTS – 215H1
Обновление от: 7/31/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-884 | COMPRESSOR | 3 | |
| 55-8464 | SCREW - compressor | 12 | ||
| 51-1604 | WASHER | 24 | ||
| 55-7075 | FLATWASHER | 12 | ||
| 55-7042 | NUT | 12 | ||
| 2 | 51-1605 | SPACER - compressor | 12 | |
| 3 | 92-5958 | BRACKET - compressor | 1 | |
| 55-7373 | NUT - captive (M6) | 2 | ||
| 55-7172 | SCREW - bracket | 4 | ||
| 55-6996 | LOCKWASHER | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 4 | 45-2156 | UNIT - electronic, compressor | 3 | |
| 5 | 61-468 | CAP - service port | 6 | |
| 6 | 61-3775 | TEE - valves | 3 | |
| 11-7777 | VALVE (Schrader) | 2 | ||
| 7 | 44-8030 | SWITCH - lpco | 3 | |
|
44-8030 OEM | Выключатель аварийный низкого давления | 16 560 ₽ |
|
| 8 | 61-3776 | TUBE - discharge | 3 | |
| 9 | 61-3777 | TUBE - discharge | 1 | |
| 10 | 61-3778 | TUBE - discharge | 1 | |
| 11 | 61-3779 | TUBE - discharge | 1 | |
| 12 | 61-3780 | ADAPTER - hpco, female | 6 | |
| 13 | 61-2060 | FITTING - relief valve | 3 | |
| 14 | 61-1193 | VALVE - relief | 3 | |
| 15 | 66-4346 | TEE (1/4 x 1/4 x 1/4) | 3 | |
| 16 | 61-3781 | TUBE - service port | 1 | |
| 17 | 61-3782 | TUBE - service port | 1 | |
| 18 | 61-3783 | TUBE - service port | 1 | |
| 19 | 61-2504 | VALVE - service port | 3 | |
| 20 | 11-7777 | VALVE (Schrader) | 3 | |
| 21 | 44-7992 | SWITCH - hpco | 3 | |
| 22 | 67-2256 | COIL - condenser | 1 | |
| 55-8375 | NUT - captive (M5) | 7 | ||
| 55-7866 | NUT - captive (M4) | 12 | ||
| 55-7169 | SCREW - coil | 4 | ||
| 55-9826 | WASHER | 4 | ||
| 55-7404 | LOCKWASHER | 4 | ||
| 23 | 61-3784 | TUBE - inlet filter | 1 | |
| 24 | 61-3785 | TUBE - inlet filter | 1 | |
| 25 | 61-3786 | TUBE - inlet filter | 1 | |
| 26 | 61-3717 | FILTER - drier | 3 | |
| 27 | 92-5959 | BRACKET - filters | 1 | |
| 55-7340 | SCREW - bracket | 3 | ||
| 55-7404 | LOCKWASHER | 3 | ||
| 55-9826 | WASHER - fender | 3 | ||
| 28 | 92-5960 | COVER - filter bracket | 1 | |
| 55-7373 | NUT - captive (M6) | 2 | ||
| 55-7035 | SCREW - cover | 2 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-7042 | NUT | 2 | ||
| 29 | 61-3787 | TUBE - outlet filter | 1 | |
| 30 | 61-3788 | TUBE - outlet filter | 1 | |
| 31 | 61-3789 | TUBE - outlet filter | 1 | |
| 32 | 61-1660 | INDICATOR - liquid | 3 | |
| 33 | 61-3790 | TUBE - inlet txv | 3 | |
| 34 | 55-7661 | BUSHING | 3 | |
| 35 | 55-9291 | SHOULDER | 3 | |
| 36 | 51-344 | NUT - expansion valve | 3 | |
| 37 | 61-3719 | VALVE - expansion | 3 | |
| 61-3718 | FILTER - expansion valve | 3 | ||
| 38 | 92-5961 | BRACKET - txv | 1 | |
| 39 | 92-5962 | BRACKET - txv, assy | 1 | |
| 55-7340 | SCREW - brackets | 5 | ||
| 55-7404 | LOCKWASHER | 5 | ||
| 55-9826 | WASHER - fender | 5 | ||
| 40 | 55-9305 | BUSHING | 3 | |
| 41 | 61-3791 | TUBE - txv to evap | 1 | |
| 42 | 61-3792 | TUBE - txv to evap | 1 | |
| 43 | 61-3793 | TUBE - txv to evap | 1 | |
| 44 | 67-2257 | COIL - evaporator | 1 | |
| 55-8375 | NUT - captive (M5) | 4 | ||
| 55-7866 | NUT - captive (M4) | 13 | ||
| 55-7340 | SCREW - coil | 7 | ||
| 55-7404 | LOCKWASHER | 7 | ||
| 55-7089 | FLATWASHER | 7 | ||
| 45 | 61-3794 | TUBE - suction | 1 | |
| 46 | 61-3795 | TUBE - suction | 1 | |
| 47 | 61-3796 | TUBE - suction | 1 | |
| 48 | 92-5857 | INSULATION - tube | A/R | |
| 49 | 92-5963 | INSULATION | 1 | |
| 50 | 92-5964 | INSULATION | 1 | |
| 51 | 92-589 | NAMEPLATE - Danger, Fan | 2 | |
| 52 | 55-8212 | HOLDER - bandwrap | 29 | |
| 55-9898 | RIVET - holder | 29 |
