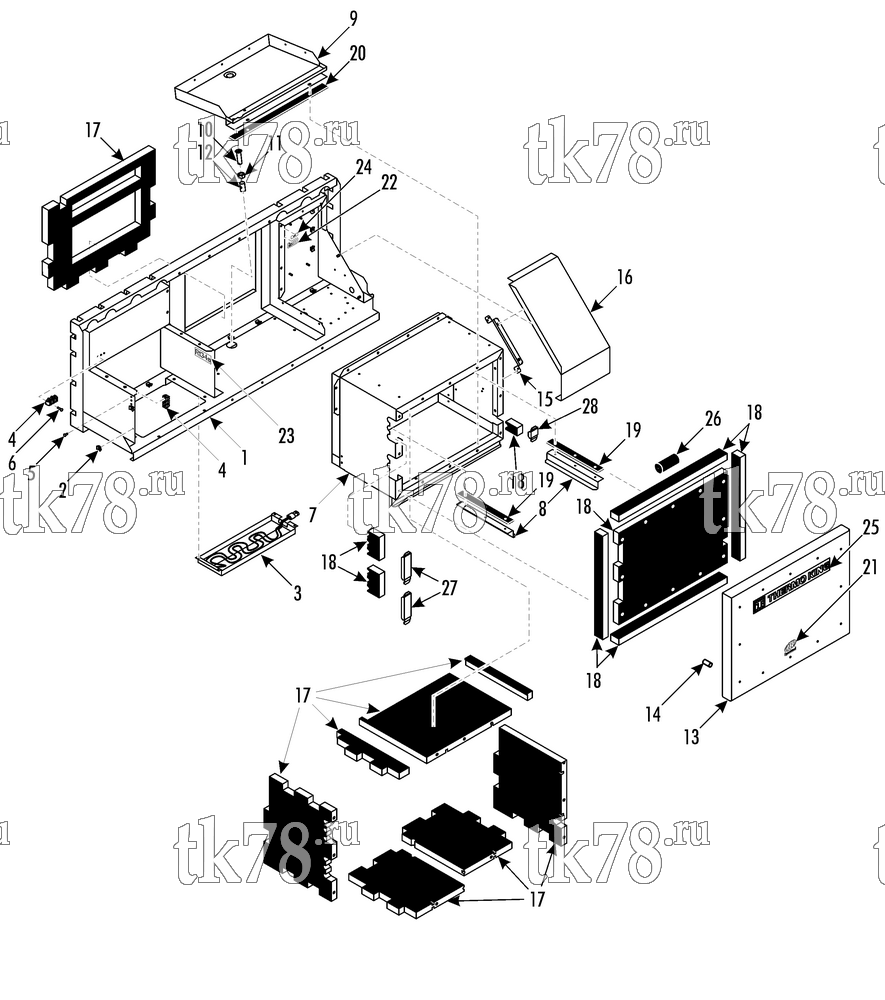

Установкa Thermo King AIR-100 схема FRAME (MRU) – 215G0
Обновление от: 7/12/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7624 | FRAME - assy | 1 | |
| 55-8375 | NUT - captive (M5) | 14 | ||
| 55-7373 | NUT - captive (M6) | 2 | ||
| 2 | 55-8212 | HOLDER - bandwrap | 21 | |
| 55-9898 | RIVET - holder | 21 | ||
| 51-757 | BANDWRAP | 21 | ||
| 3 | 92-5877 | TRAY - assy, evaporating | 1 | |
| 41-3156 | HARNESS - heater draintube | 1 | ||
| 4 | 92-5952 | SADDLES - routing tube | 6 | |
| 5 | 55-9898 | RIVET - saddles | 3 | |
| 6 | 51-1601 | RIVET - saddles | 3 | |
| 7 | 98-7625 | COVER - evaporator | 1 | |
| 55-8375 | NUT - captive (M5) | 18 | ||
| 55-7169 | SCREW - cover (M5) | 10 | ||
| 51-1108 | SCREW - cover (M5, Phillips) | 4 | ||
| 55-7404 | LOCKWASHER | 14 | ||
| 55-9826 | WASHER | 14 | ||
| 55-7367 | NUT | 4 | ||
| 8 | 92-5953 | SUPPORT - evaporator | 2 | |
| 51-1602 | RIVET - support | 6 | ||
| 9 | 98-7626 | PAN - evaporator | 1 | |
| 55-8375 | NUT - captive (M5) | 3 | ||
| 55-7340 | SCREW - pan evaporator | 2 | ||
| 55-7404 | LOCKWASHER | 2 | ||
| 55-9826 | WASHER - fender | 2 | ||
| 10 | 92-5954 | TUBE - drain (rework) | 1 | |
| 11 | 51-1603 | NUT - nylon (rework) | 1 | |
| 12 | 61-3774 | TUBE - drain, assy | 1 | |
| 13 | 98-7627 | COVER - evaporator | 1 | |
| 55-7387 | SCREW - cover | 12 | ||
| 55-9490 | WASHER - spring | 12 | ||
| 55-9492 | WASHER - cosmetic | 12 | ||
| 55-9491 | CAP - cosmetic | 12 | ||
| 14 | 92-1715 | SPACER - fan | 12 | |
| 15 | 92-5955 | BRACKET - boards | 1 | |
| 55-9898 | RIVET - bracket | 4 | ||
| 16 | 98-7628 | COVER - elect | 1 | |
| 55-7340 | SCREW - cover | 4 | ||
| 55-9826 | WASHER | 4 | ||
| 55-7404 | LOCKWASHER | 4 | ||
| 17 | 30-288 | SET - insulation | 1 | |
| 18 | 30-289 | SET - insulation (cover) | 1 | |
| 19 | 92-5956 | STRIP - rubber | 2 | |
| 20 | 92-5957 | STRIP - rubber | 1 | |
| 21 | 92-921 | NAMEPLATE - IR logo | 1 | |
| 22 | 92-1695 | NAMEPLATE - Identification | 1 | |
| 23 | 92-920 | NAMEPLATE - R134a | 1 | |
| 24 | 92-2810 | NAMEPLATE - Voltage, 24 V | 1 | |
| 25 | 92-1898 | NAMEPLATE - Thermo King | 1 | |
| 26 | 33-4344 | INSULATION - tube | A/R | |
| 27 | 92-9139 | PLATE - long | 2 | |
| 28 | 92-9140 | PLATE - short | 1 |
