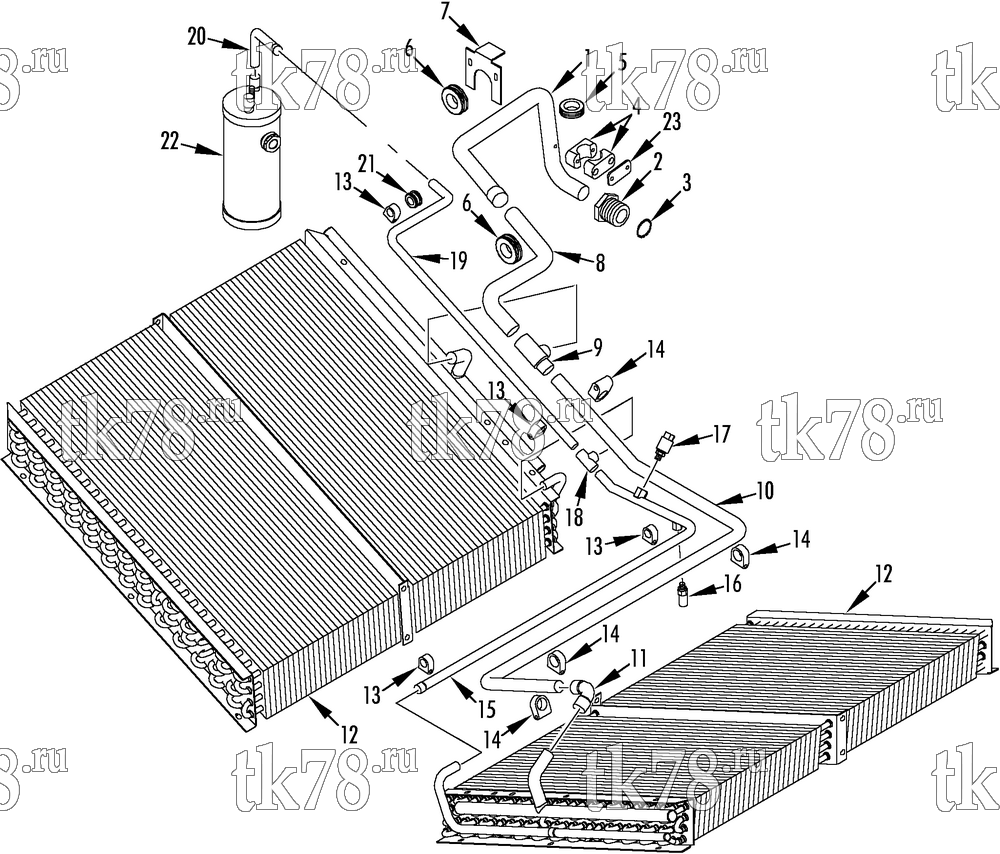

Установкa Thermo King AI2 M2 схема CONDENSER REFRIGERATION – 176F8
Обновление от: 7/16/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-1603 | TUBE - discharge | 1 | |
| 2 | 55-7537 | ADAPTER - bulkhead (#20, o-ring seal) | 1 | |
| 3 | 33-144 | O-RING - discharge | 1 | |
| 4 | 92-315 | CLAMP - discharge tube | 2 | |
| 55-4811 | SCREW - clamp | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 10 | ||
| 5 | 33-2440 | GROMMET (1-1/8 id, 1/16 groove) | 1 | |
| 6 | 33-3608 | GROMMET (1-1/8 id, 7/32 groove) | 2 | |
| 7 | 92-2158 | BRACKET - blockoff | 1 | |
| 8 | 61-1606 | TUBE - discharge (swage to tee) | 1 | |
| 9 | 55-8968 | TEE (1-1/8 x 7/8 x 7/8) | 1 | |
| 10 | 61-1607 | TUBE - tee to coil | 1 | |
| 11 | 55-3326 | ELBOW (7/8 sld, 7/8 sld) | 1 | |
| 12 | 67-1848 | COIL - condenser (see 176F7) | 2 | |
| 13 | 91-758 | CLAMP - tube (5/8) | 4 | |
| 14 | 55-7013 | CLAMP - tube (7/8) | 4 | |
| 15 | 61-1610 | TUBE - liquid (coil to tee) | 1 | |
| 16 | 66-7392 | VALVE - high pressure relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 99-3060 | FITTING - saddle (high pressure relief) | 1 | ||
| 17 | 44-5841 | SWITCH - hpco | 1 | |
| 66-4139 | FITTING - saddle (HPCO) | 1 | ||
| 18 | 55-904 | TEE (5/8) | 1 | |
| 19 | 61-1609 | TUBE - liquid (tee to swage) | 1 | |
| 20 | 61-1608 | TUBE - liquid (swage to receiver tank) | 1 | |
| 21 | 33-288 | GROMMET (5/8 id) | 1 | |
| 22 | 61-225 | TANK - receiver (see 176G6) | 1 | |
| 23 | 91-6158 | PLATE - clamp | 1 |
