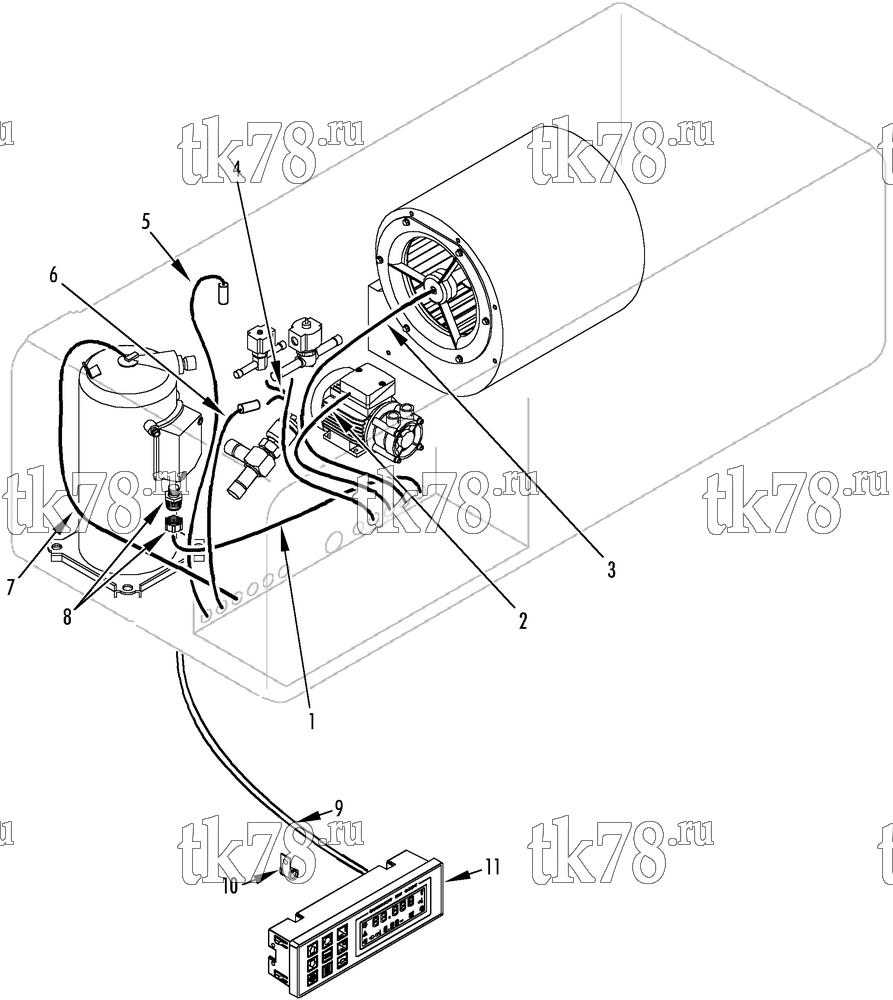

Установкa Thermo King A1050U схема CONDENSER HARNESS GROUP – 169F6
Обновление от: 10/8/02
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-4427 | HARNESS - compressor | 1 | |
| 41-280 | TERMINAL - fork (22-16, #6, red) | 3 | ||
| 41-2774 | TERMINAL - right angle | 3 | ||
| 44-7245 | TERMINAL - ring (22-16 gauge, #10, red) | 1 | ||
| 44-2789 | TERMINAL - ring (blue 1/4, 14-16 ga) | 1 | ||
| 2 | 41-4428 | HARNESS - pump | 1 | |
| 41-280 | TERMINAL - fork (22-16, #6, red) | 7 | ||
| 44-2789 | TERMINAL - ring (blue 1/4, 14-16 ga) | 1 | ||
| 3 | 41-4429 | HARNESS - condenser blower | 1 | |
| 41-4408 | TERMINAL - pin (18 gauge, red) | 4 | ||
| 41-280 | TERMINAL - fork (22-16, #6, red) | 3 | ||
| 44-2789 | TERMINAL - ring (blue 1/4, 14-16 ga) | 1 | ||
| 4 | 41-4430 | HARNESS - solenoid valve | 1 | |
| 44-9276 | SOCKET (18 gauge) | A/R | ||
| 41-4408 | TERMINAL - pin (18 gauge, red) | A/R | ||
| 44-9585 | PLUG - 2 terminal (see 112D9) | 7 | ||
| 44-8935 | PLUG - 4 terminal | 1 | ||
| 5 | 41-4431 | HARNESS - suction pressure sensor | 1 | |
| 44-8330 | SOCKET (18 gauge) | 4 | ||
| 41-4408 | TERMINAL - pin (18 gauge, red) | 4 | ||
| 44-8935 | PLUG - 4 terminal (see 112D9) | 1 | ||
| 6 | 41-4432 | HARNESS - discharge pressure sensor | 1 | |
| 44-8330 | SOCKET (18 gauge) | 4 | ||
| 41-4408 | TERMINAL - pin (18 gauge, red) | 4 | ||
| 44-8935 | PLUG - 4 terminal (see 112D9) | 1 | ||
| 7 | 41-4433 | HARNESS - compressor head temp sensor outlet | 1 | |
| 44-8330 | SOCKET (18 gauge) | 4 | ||
| 41-4408 | TERMINAL - pin (18 gauge, red) | 4 | ||
| 44-9585 | PLUG - 2 terminal (see 112D9) | 1 | ||
| 8 | 305-1413 | CONNECTOR - strain relief | 1 | |
| 305-1408 | NUT - connector | 1 | ||
| 9 | 41-2308 | HARNESS - remote cab box | 1 | |
| 33-324 | GROMMET | 1 | ||
| 41-1948 | CONNECTOR (6-pin) | 1 | ||
| 41-2244 | TERMINAL | 5 | ||
| 10 | 92-1608 | CLAMP - ground | 1 | |
| 11 | 45-1866 | BOX - remote control | 1 |
