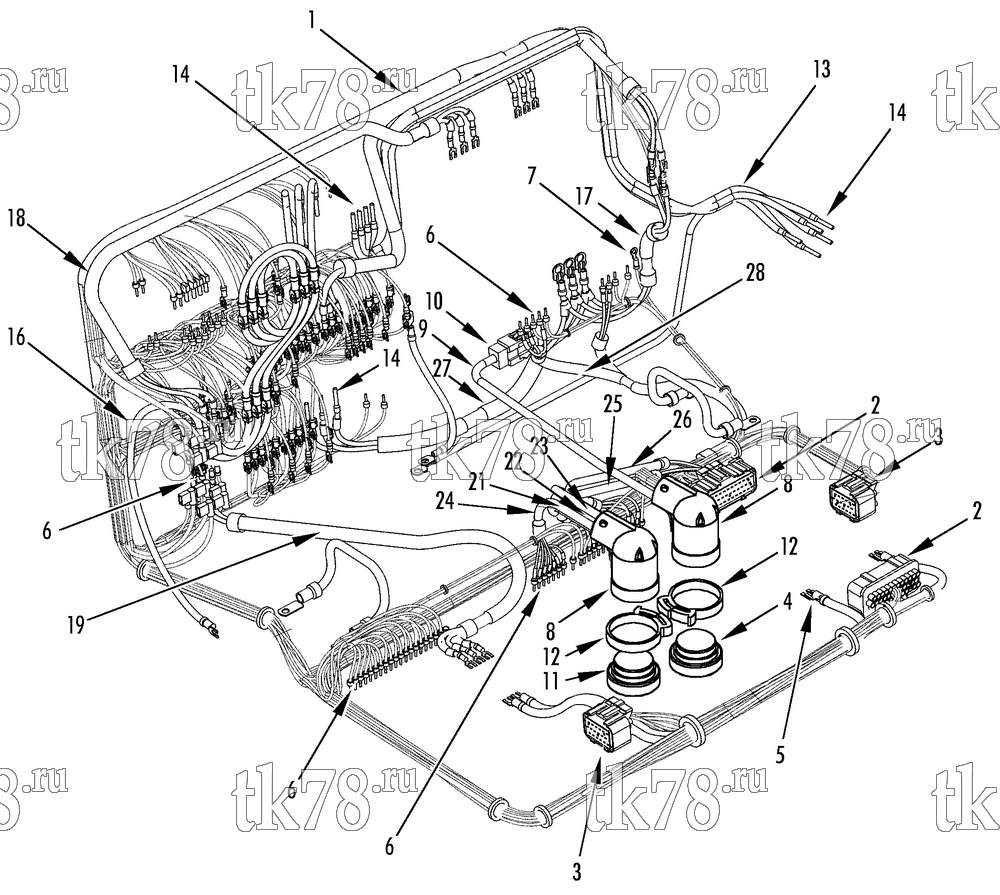

Установкa Thermo King A1050U схема CONTROL BOX HARNESS – 169F5
Обновление от: 4/9/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-4406 | HARNESS - control box | 1 | |
| 2 | 44-9768 | RECEPTACLE (36-pin) | 2 | |
| 44-9769 | LOCK - receptacle (36-pin) | 2 | ||
| 44-9855 | TERMINAL | A/R | ||
| 3 | 44-9853 | RECEPTACLE (18-pin) | 2 | |
| 44-9854 | LOCK - receptacle (18-pin) | 2 | ||
| 44-9855 | TERMINAL | A/R | ||
| 4 | 41-745 | PLUG (37-pin) | 1 | |
| 55-7618 | CLAMP - plug | 1 | ||
| 41-182 | TERMINAL - pin (18 gauge) | A/R | ||
| 5 | 41-280 | TERMINAL - fork (22-16, #6, red) | A/R | |
| 44-2788 | TERMINAL - fork (22-16, #8, red) | A/R | ||
| 44-4653 | TERMINAL - fork (22-16, #10, red) | A/R | ||
| 41-4407 | TERMINAL - fork (12-10, #8, yellow) | A/R | ||
| 44-5087 | TERMINAL - fork (yellow #10, 10-12 ga) | A/R | ||
| 6 | 41-4408 | TERMINAL - pin (18 gauge, red) | A/R | |
| 7 | 41-4409 | TERMINAL - ring (22-16 gauge, #8, red) | A/R | |
| 8 | 41-225 | STRAIN RELIEF - connector (19-pin) | 2 | |
| 9 | 41-4410 | HARNESS - remote serial link | 1 | |
| 10 | 41-3882 | CONNECTOR - plug (6 socket) | 1 | |
| 41-1945 | STRAIN RELIEF - connector (6-pin) | 1 | ||
| 44-8539 | SOCKET - receptacle | 1 | ||
| 11 | 41-744 | PLUG - reverse (23-19) | 1 | |
| 12 | 55-7618 | CLAMP - plug (plastic) | 2 | |
| 13 | 41-4411 | HARNESS - power | 1 | |
| 14 | 44-6310 | TERMINAL - pin (10 gauge, green) | A/R | |
| 15 | 44-2792 | TERMINAL - ring (#10, yellow) | A/R | |
| 16 | 41-4412 | HARNESS - alternator supply (SMPS) | 1 | |
| 17 | 41-4413 | HARNESS - alternator supply (MSW) | 1 | |
| 18 | 41-4414 | HARNESS - compressor supply | 1 | |
| 19 | 41-4415 | HARNESS - switch (SMPS) | 1 | |
| 20 | 41-4416 | HARNESS - evaporator fan supply | 1 | |
| 21 | 41-4417 | HARNESS - suction pressure sensor | 1 | |
| 22 | 41-4418 | HARNESS - discharge pressure sensor | 1 | |
| 23 | 41-4419 | HARNESS - compressor head temp sensor | 1 | |
| 24 | 41-4420 | HARNESS - evaporator temp sensor | 1 | |
| 25 | 41-4421 | HARNESS - compressor (analog) | 1 | |
| 26 | 41-4423 | HARNESS - fan (analog) | 1 | |
| 27 | 41-4422 | HARNESS - alternator inverter | 1 | |
| 28 | 41-4424 | HARNESS - compressor inverter | 1 | |
| 29 | 41-4425 | HARNESS - fan inverter | 1 |
